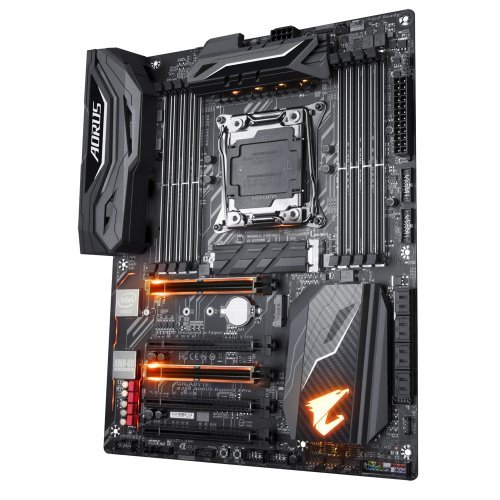

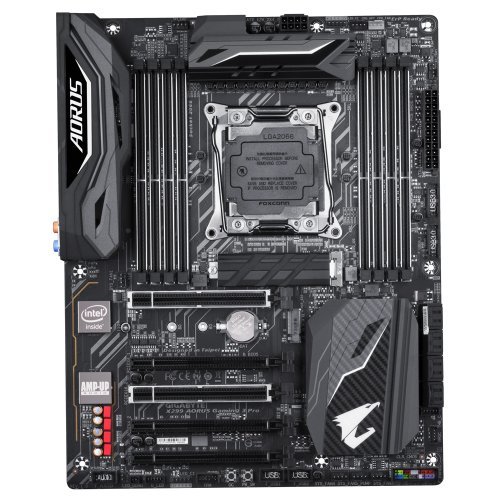

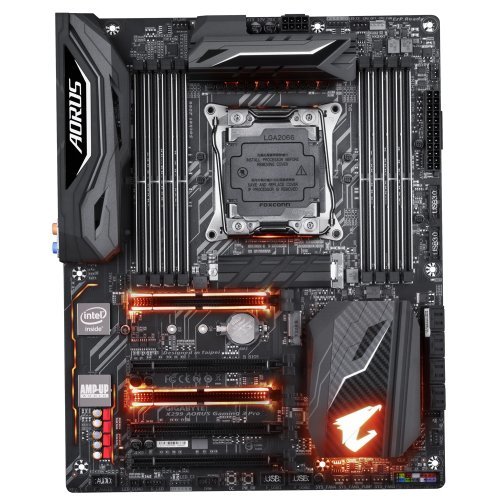

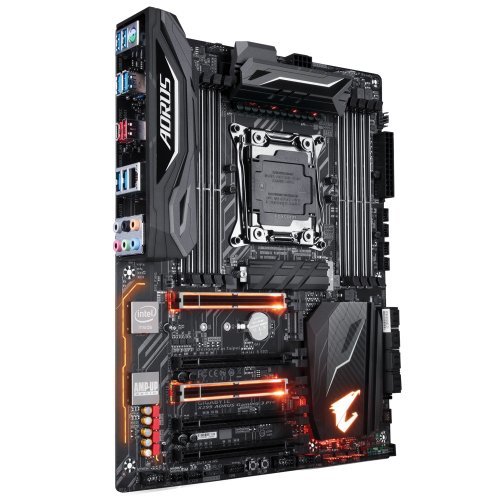

Дънна платка Gigabyte X299 AORUS Gaming 3 Pro(rev. 1.0), LGA2066

Дънна платка Gigabyte X299 AORUS Gaming 3 Pro(rev. 1.0), LGA2066

Name: Дънна платка Gigabyte X299 AORUS Gaming 3 Pro(rev. 1.0), LGA2066
Brand: Gigabyte
SKU: X299 AORUS Gaming 3 Pro (rev. 1.0)
Availability: OutOfStock

Продуктов код: 27284

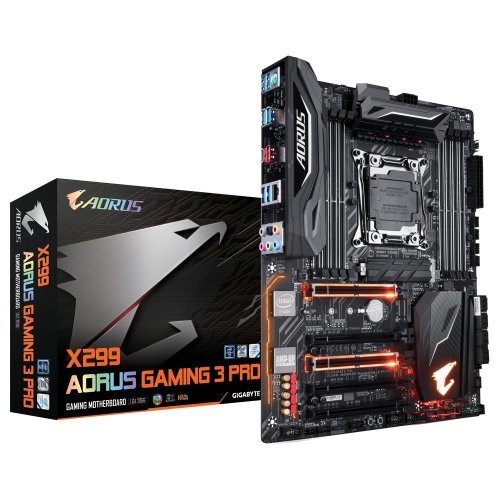

Дънна платка Gigabyte X299 AORUS Gaming 3 Pro (rev. 1.0) (снимка 1)

Дънна платка Gigabyte X299 AORUS Gaming 3 Pro (rev. 1.0)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

X299 AORUS Gaming 3 Pro (rev. 1.0)

Партиден номер:

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel X299

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA2066

Form Factor:

ATX

Видео изходи:

не поддържа самостоятелно вградено видео

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte X299 AORUS Gaming 3 Pro (rev. 1.0)

Intel X299 Gaming motherboard with RGB Fusion, Digital LED strip support,

Dual M.2, 120dB SNR ALC1220, Intel Gaming LAN, USB 3.1 Gen 2 Type-C/A

Supports Intel^® Core™ X-Series Processor Family
Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
Intel^® Optane™ Memory Ready
ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
3-Way Graphics Support with Dual Armor and Ultra Durable™ Design
Server-Class Digital Power Design
ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor
RGB FUSION supports Digital LED and RGBW Light Strips
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Dual Ultra-Fast M.2 with PCIe Gen3 x 4 interfaces and Thermal Guard
NVMe PCIe Gen3 x4 U.2 support by optional adaptor
Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
Anti-Sulfur Resistor Design
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
Lightning-Fast Intel^® Thunderbolt™ 3 AIC Support
GIGABYTE UEFI DualBIOS™
APP Center Including EasyTune™ and Cloud Station™ Utilities

CPU
1. Support for Intel^® Core™ X series processors in the LGA2066 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® X299 Express Chipset
Memory
1. 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
  * Support for up to 512 GB of system memory when using Registered DIMMs.
  * Supported when using a 44-lane or 28-lane CPU (6-core or above).
2. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
  * Supported when using a 16-lane CPU (4-core).
3. 4 channel memory architecture.
  * Supported when using a 44-lane or 28-lane CPU (6-core or above).
4. Dual channel memory architecture.
  Supported when using a 16-lane CPU (4-core).
5. Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
6. Support for non-ECC Un-buffered DIMM memory modules
7. Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
  * R-DIMM is only supported by BIOS version F3 and earlier versions.
8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
1. Realtek^® ALC1220 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA^® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
X299 PCIE OPTIMAL PERFORMANCE TOOL
See your optimal configuration by checking all boxes below

When using a 44 lane CPU (10-core or above):

1-Way 2-Way 3-Way

PCIEX16_1 ∨(x16) ∨(x16) ∨(x16)

PCIEX16_2 ╳ ∨(x16) ∨(x16)

PCIEX8 ╳ ╳ ∨(x8)

∨: Installed, ╳: Not Installed.

When using a 28 lane CPU (6-core or above):

1-Way 2-Way

PCIEX16_1 ∨(x16) ∨(x16)

PCIEX16_2 ╳ ∨(x8)

PCIEX8 ╳ ╳

∨: Installed, ╳: Not Installed.

When using a 16 lane CPU (4-core):

1-Way 2-Way*

PCIEX16_1 ∨(x8) ∨(x8)

PCIEX16_2 ╳ ∨(x4)

PCIEX8 ╳ ╳

∨: Installed, ╳: Not Installed.
* Supports the CrossFire technology only.
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3. 8 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
Intel^® VROC Ready
Multi-Graphics Technology
1. Support for NVIDIA^® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies
USB
Chipset+ASMedia^® USB 3.1 Gen 2 Controller:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1. 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
2. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 1 x system fan/water cooling pump header
7. 1 x 3 Amp fan/water cooling pump header
8. 1 x digital LED strip extension cable header
9. 2 x RGB (RGBW) LED strip extension cable headers
10. 2 x M.2 Socket 3 connectors
11. 8 x SATA 6Gb/s connectors
12. 1 x Intel^® VROC Upgrade Key header
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 2 x USB 3.1 Gen 1 headers
17. 2 x USB 2.0/1.1 headers
18. 1 x Thunderbolt™ add-in card connector
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x power button
21. 1 x OC button
22. 2 x temperature sensor headers
23. 1 x Clear CMOS jumper

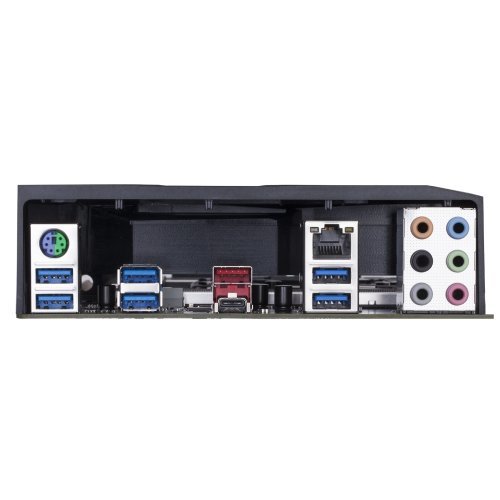

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3. 1 x USB 3.1 Gen 2 Type-A port (red)
4. 6 x USB 3.1 Gen 1 ports
5. 1 x RJ-45 port
6. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  USB Blocker
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  1. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
