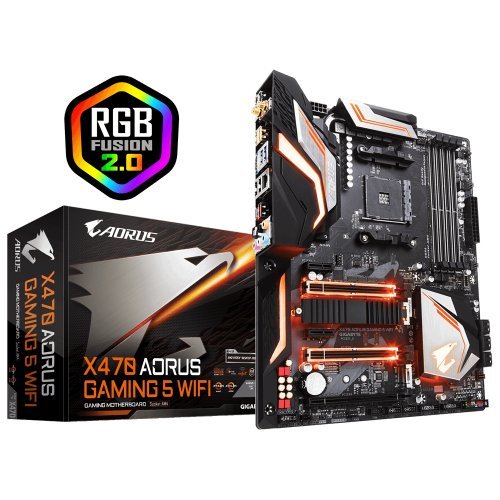

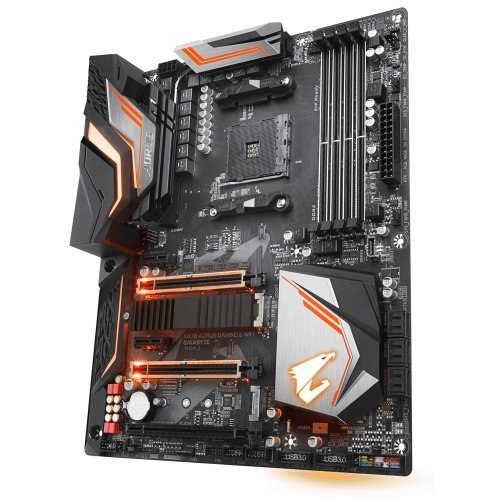

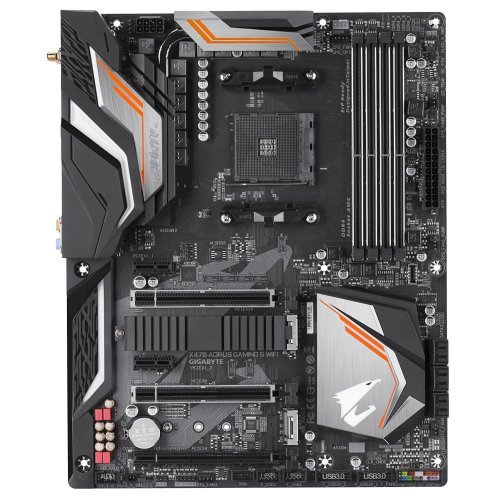

Дънна платка Gigabyte X470 AORUS GAMING 5 WIFI

• Socket: AM4

• Graphics: Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*; * Support for HDMI 2.0 version and HDCP 2.2.*; * Actual support may vary by CPU.; Maximum shared memory of 2 GB

• CPU`s supported: AM4 Socket: Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors;

• Chipset: AMD X470

• Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16)*; * Actual support may vary by CPU.; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; 1 x PCI Express x16 slot, running at x8 (PCIEX8)*; * Actual support may vary by CPU.; * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.; (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.); 1 x PCI Express x16 slot, running at x4 (PCIEX4); * The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.; 2 x PCI Express x1 slots; (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

• Storage: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4* /x2 SSD support) (M2A_SOCKET); * Actual bandwidth may vary by CPU.; 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET); 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10

• Memory type: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory; Dual channel memory architecture; Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

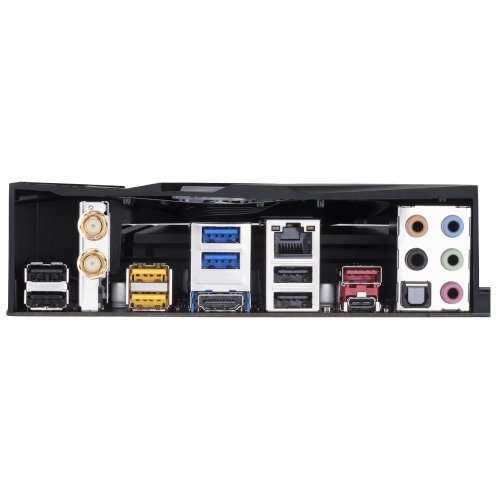

• I/O: 2 x MMCX antenna connectors (2T2R); 4 x USB 3.1 Gen 1 ports; 1 x USB Type-C™ port, with USB 3.1 Gen 2 support; 1 x USB 3.1 Gen 2 Type-A port (red); 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks

• Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 2 x system fan/water cooling pump headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x digital LED strip headers; 2 x digital LED strip power select jumpers; 1 x RGB (RGBW) LED strip header; 2 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C™ port, with USB 3.1 Gen 2 support; 2 x USB 3.1 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; 1 x temperature sensor header

• Audio: Realtek® ALC1220-VB codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out

• LAN: Intel® GbE LAN chip (10/100/1000 Mbit)

• BIOS: 2 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; Support for DualBIOS™; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Form Factor: ATX Form Factor; 30.5cm x 24.4cm

• OS: Support for Windows 10 64-bit; Support for Windows 7 64-bit; * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.; * Intel WIFI driver only support for Win10-64bit

• Other: Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5; Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate; * Actual data rate may vary depending on environment and equipment.; * Intel WIFI driver only support for Win10-64bit

• Warranty: 36 Months

https://www.gigabyte.com/Motherboard/X470-AORUS-GAMING-5-WIFI-rev-10#sp
GB X470 AORUS GAMING5 WIFI/AM4
