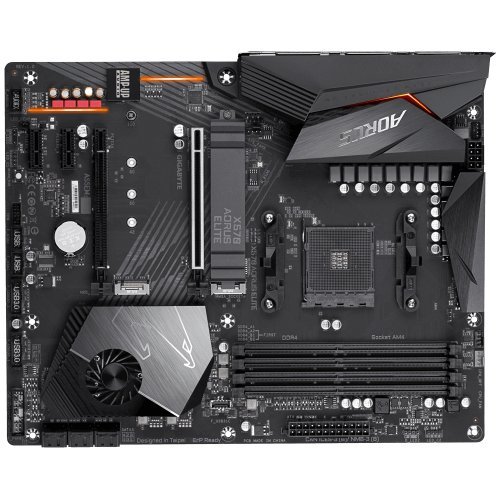

Дънна платка Gigabyte X570 AORUS ELITE GAX57ALET-00-G

Дънна платка Gigabyte X570 AORUS ELITE GAX57ALET-00-G

Name: Дънна платка Gigabyte X570 AORUS ELITE GAX57ALET-00-G
Brand: Gigabyte
SKU: X570 AORUS ELITE
Availability: OutOfStock

Продуктов код: 40856

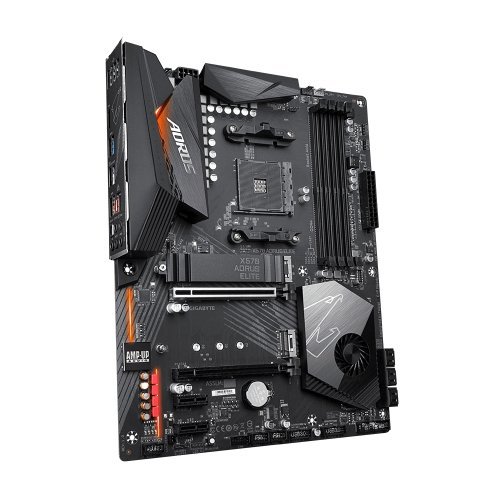

Дънна платка Gigabyte X570 AORUS ELITE GAX57ALET-00-G (снимка 1)

Дънна платка Gigabyte X570 AORUS ELITE GAX57ALET-00-G

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

X570 AORUS ELITE

Партиден номер:

GAX57ALET-00-G

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

AMD X570

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

ATX

Видео изходи:

HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte X570 AORUS ELITE

AMD X570 AORUS Motherboard with 12+2 Phases Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2 with Single Thermal Guard, Intel^® GbE LAN with cFosSpeed, Front USB Type-C, RGB Fusion 2.0

Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital VRM Solution with DrMOS
Advanced Heatsink Design with Enlarge Heatsink
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel^® Gigabit LAN with cFosSpeed Internet Accelerator
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Front USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
Integrated I/O Shield Armor
Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card

CPU
1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD X570
Memory
1. 3rd Generation AMD Ryzen™ processors:
  Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2. 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
  Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio
1. Realtek^® ALC1200 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
Integrated in the CPU (PCIEX16):
· 3rd Generation AMD Ryzen™ processors:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
· 2nd Generation AMD Ryzen™ processors:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1):
1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
  * For 3rd Generation AMD Ryzen™ processors only.
2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  * For 3rd Generation AMD Ryzen™ processors only.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Storage Interface
Integrated in the CPU (M2A_SOCKET):
· 3rd Generation AMD Ryzen™ processors:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
· 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
  * For 3rd Generation AMD Ryzen™ processors only.
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
USB
Integrated in the CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 2 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 1 x CPU cooler LED strip/RGB LED strip header
9. 2 x M.2 Socket 3 connectors
10. 6 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
14. 2 x USB 3.2 Gen 1 headers
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
17. 1 x Clear CMOS jumper
18. 1 x Q-Flash Plus button

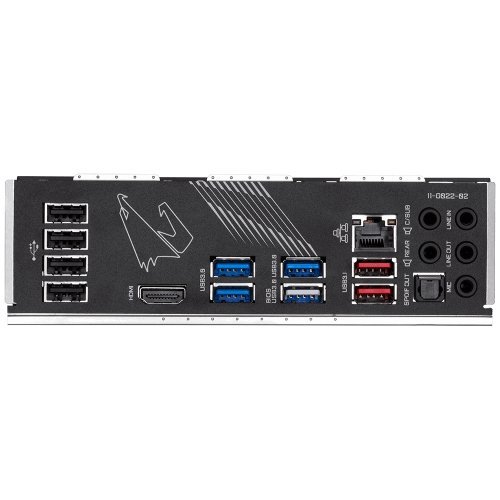

Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 1 x HDMI port
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 1 x RJ-45 port
6. 1 x optical S/PDIF Out connector
7. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart Survey
  System Information Viewer
  USB Blocker
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
