Gigabyte

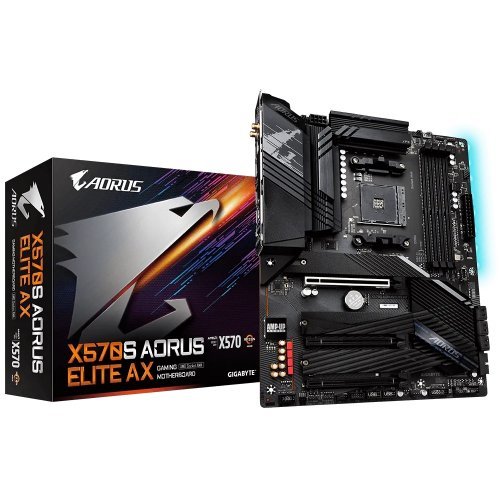

Дънна платка Gigabyte X570S AORUS ELITE AX 1.1

Дънна платка Gigabyte X570S AORUS ELITE AX 1.1

Name: Дънна платка Gigabyte X570S AORUS ELITE AX 1.1
Brand: Gigabyte
SKU: X570S AORUS ELITE AX 1.1
Availability: OutOfStock

Продуктов код: 64436

Дънна платка Gigabyte X570S AORUS ELITE AX 1.1 (снимка 1)

Дънна платка Gigabyte X570S AORUS ELITE AX 1.1

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

X570S AORUS ELITE AX 1.1

Партиден номер:

X570S AORUS ELITE AX 1.1

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

За игри

Чипсет:

AMD X570

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

ATX

Видео изходи:

HDMI

Wi-Fi свързаност:

Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte X570S AORUS ELITE AX 1.1

Graphics:
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
Maximum shared memory of 16 GB
CPU's supported: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
Chipset: AMD X570
Expansion Slots:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode;
AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode;
AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode;
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x4 mode;
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode;
* The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode.
Storage:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs;
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs;
2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs;
6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Memory type:
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules;
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*;
* ECC memory (ECC mode) support varies by CPU;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for Extreme Memory Profile (XMP) memory modules
I/O:
4 x USB 2.0/1.1 ports;
2 x SMA antenna connectors (2T2R);
1 x HDMI port;
4 x USB 3.2 Gen 1 ports;
1 x Q-Flash Plus button;
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support;
3 x USB 3.2 Gen 2 Type-A ports (red);
1 x RJ-45 port;
1 x optical S/PDIF Out connector;
5 x audio jacks
Connectors:
1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
1 x water cooling CPU fan header;
3 x system fan headers;
1 x system fan/water cooling pump header;
2 x addressable LED strip headers;
2 x RGB LED strip headers;
1 x CPU cooler LED strip/RGB LED strip header;
3 x M.2 Socket 3 connectors;
6 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2 support;
2 x USB 3.2 Gen 1 headers;
2 x USB 2.0/1.1 headers;
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);
1 x Thunderbolt™ add-in card connector;
1 x Clear CMOS jumper
Audio:
Realtek® ALC1220-VB codec;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel;
Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:
1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:
ATX Form Factor;
30.5cm x 24.4cm
OS: Support for Windows 10 64-bit
Other:
AMD Wi-Fi 6E RZ608 (MT7921K);
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;
BLUETOOTH 5.2;
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
