Дънна платка Gigabyte Z370M DS3H

Дънна платка Gigabyte Z370M DS3H

Name: Дънна платка Gigabyte Z370M DS3H
Brand: Gigabyte
SKU: Z370M DS3H
Availability: OutOfStock

Продуктов код: 27544

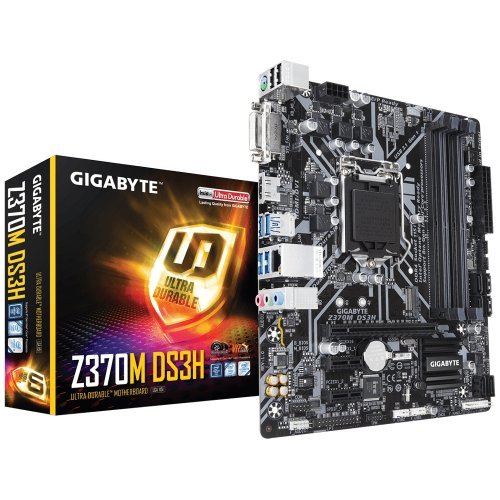

Дънна платка Gigabyte Z370M DS3H (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

Z370M DS3H

Партиден номер:

Гаранция:

24 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel Z370

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

mATX

Видео изходи:

DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte Z370M DS3H

CPU
1. Support for 8^th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® Z370 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
USB
Chipset:
1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 6 x SATA 6Gb/s connectors
6. 1 x M.2 Socket 3 connector
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x USB 3.1 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
13. 1 x serial port header
14. 1 x parallel port header
15. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.1 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  USB Blocker
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 22.6cm x 19.3cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
