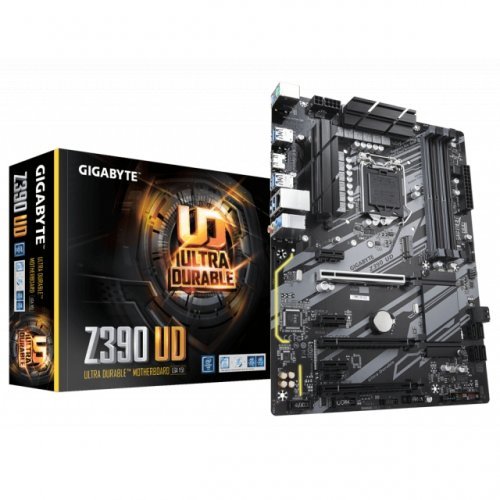

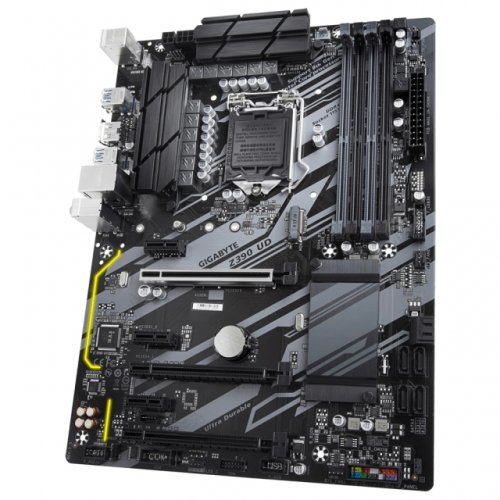

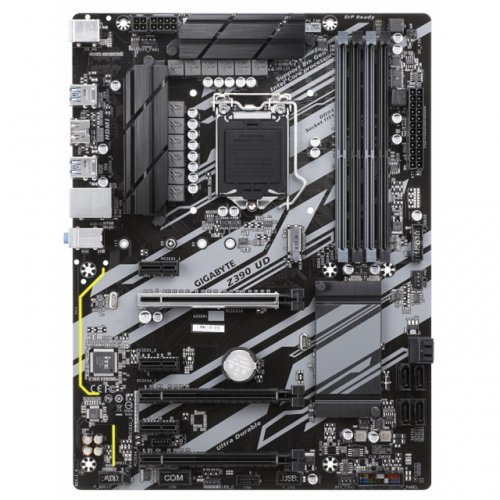

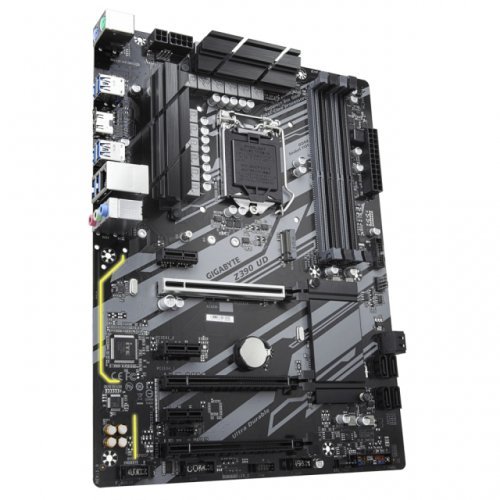

Дънна платка Gigabyte Z390 UD, Socket 1151 (300 Series)
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- New 10+2 Phases Digital PWM Design
- NVMe PCIe Gen3 x4 22110 M.2 Connector
- Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Support RGB Light Strip in Full Colors
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- Intel® Optane™ Memory Ready
Технически детайли
| Производител | GIGABYTE |
| Модел | Z390 UD |
| Баркод | 4719331804411 |
| Гаранция | 36 месеца |
| CPU Socket | 1151 |
| Чипсет | Intel Z390 |
| Поддържани процесори | Intel Socket 1151 for 8th Generation Core, Intel Socket 1151 for 9th Generation Core |
| Форм фактор | ATX |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 64 GB |
| Слотове памет | 4 |
| Честота памет | 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000(O.C.), 2800(O.C.), 2666, 2400, 2133 |
| Поддръжка на Dualchannel | Да |
| Графична карта | Intel HD Graphics |
| Вградено аудио | Realtek ALC892 |
| Вграден LAN | Realtek GbE LAN chip, (10/100/1000 Mbit) |
| Слотoве PCI-E x16 | 3 x PCIe 3.0/2.0 x16 |
| Слотoве PCI-E x1 | 3 |
| Интерфейс Serial ATA | 6 x SATA3 6.0 Gb/s |
| М2 слот | Intel® Optane™ Memory Ready, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Конектор захранване | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
| Видео слот | PCI Express |
| Мулти GPU технология | AMD Quad-GPU CrossFireX Technology, AMD 2-Way CrossFireX Technology |

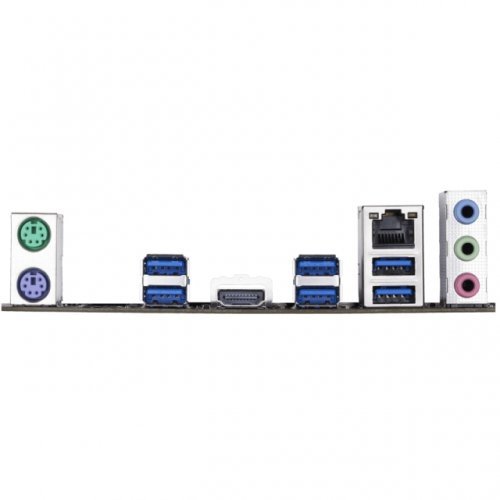

| Свързаност | 2 x PS/2, 1 x HDMI, 6 x USB 3.1 Gen1, 1 x RJ45, 3 x Audio jack's |
| USB 3.1 | 6 |
| Други | BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
