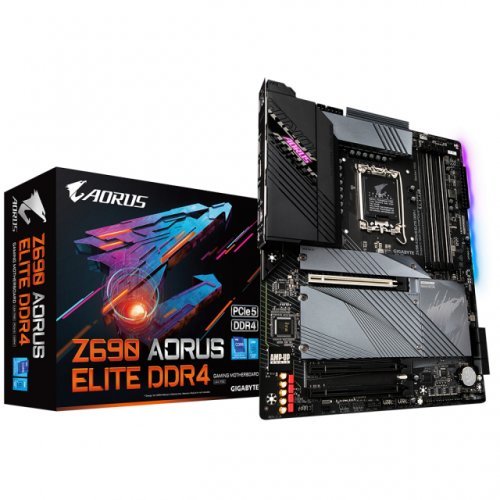

Дънна платка Gigabyte Z690 AORUS ELITE DDR4 1.0

Продуктов код: 63958
Дънна платка Gigabyte
Дънна платка Gigabyte Z690 AORUS ELITE DDR4 Z690 AORUS ELITE DDR4 1.0 Дънна платка Gigabyte Z690 AORUS ELITE DDR4 Z690 AORUS ELITE DDR4 1.0 Дънна платка Gigabyte Z690 AORUS ELITE DDR4 Z690 AORUS ELITE DDR4 1.0
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
Z690 AORUS ELITE DDR4
Партиден номер:
Z690 AORUS ELITE DDR4 1.0
Чипсет:
Intel Z690
Socket:
Intel 1700
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
1x DisplayPort 1.2, 1x HDMI 2.1
Form Factor:
ATX
Интерфейс:
4x M.2 за SSD
Цена с включен ДДС:
501.07 лв.
Възможност за лизинг

Кандидатствай бързо и лесно онлайн

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
Вземете на лизинг с UniCredit Consumer Financing
Купи на лизинг
По 48.85 лв. за 12 мес. Лизингови схеми
Лизингови схеми
Кандидатствайте за лизинг онлайн

1 Добавете желаните продукти в количката си и преминете към страницата за изпращане на поръчката;

2 За начин на плащане изберете "На лизинг с..." и предпочитания от вас лизингодател;

3 Попълнете своите данни и изберете желания срок за лизинг във формата за кандидатстване;

4 Изпратете поръчката си, след което очаквайте одобрение от лизингодателя по телефон или имейл;

Срок UniCredit Consumer Financing TBI Pay
3175.47 лв.
ГПР: 34.52
174.54 лв.
ГПР: 23.95
690.99 лв.
ГПР: 34.49
91.03 лв.
ГПР: 30.2
962.88 лв.
ГПР: 34.54

1248.85 лв.
ГПР: 34.53
49.27 лв.
ГПР: 33.86
1540.49 лв.
ГПР: 34.52

1834.92 лв.
ГПР: 34.51
35.35 лв.
ГПР: 34.7
2130.97 лв.
ГПР: 34.53

2428.01 лв.
ГПР: 34.52
28.39 лв.
ГПР: 34.74
2725.75 лв.
ГПР: 34.49

3023.95 лв.
ГПР: 34.55
24.22 лв.
ГПР: 34.5
3322.5 лв.
ГПР: 34.53

3621.3 лв.
ГПР: 34.49
21.43 лв.
ГПР: 34.08
  • Описание
  • Ревюта
  • Въпроси и отговори

Gigabyte Z690 AORUS ELITE DDR4

  • CPU
    1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.
  • Chipset
    1. Intel® Z690 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC1220-VB CODEC
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2-channel analog output
    4. Support for S/PDIF Out
      7.1-channel digital signals
      * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
    2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
      (The PCIEX4 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
    3. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
  • USB
    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hub:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 3 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 2 x Thunderbolt™ add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x reset button
    20. 1 x Q-Flash Plus button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red)
    3. 3 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 1 x HDMI port
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm



https://www.gigabyte.com/Motherboard/Z690-AORUS-ELITE-DDR4-rev-10#kf
