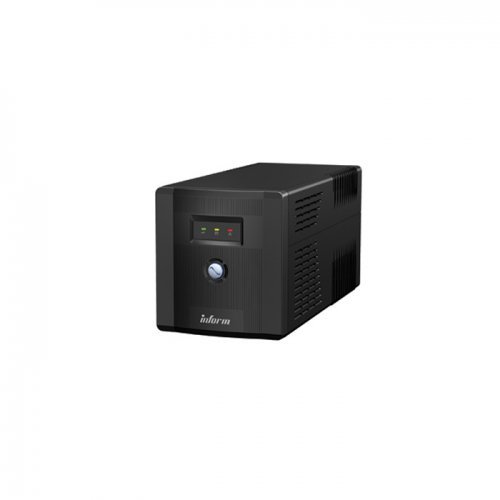

UPS Inform Guardian 600AP, AVR

Name: UPS Inform Guardian 600AP, AVR
Brand: Inform
SKU: Guardian 600AP
Availability: OutOfStock

Продуктов код: 12316

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Inform

Модел:

Guardian 600AP

Партиден номер:

Гаранция:

24 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Inform Guardian 600AP

Брошура на продукта

INFORM GUARDIAN 600AP

• Input
Capacity (VA) 600
Voltage 220V or 230V
Input Voltage Range -25%, +30%
Frequency 50 or 60 Hz (auto sensing)

• Output
Power Factor 0.6
Voltage (On battery) 220V or 230V ±10%
Waveform (On battery) Simulated Sinewave
Frequency (On battery) 50 or 60 Hz ±1Hz
Voltage Regulation (AVR)
AVR automatically increases output voltage 15% above input voltage if -10% to -26% of nominal
AVR automatically decreases output voltage 15% below input voltage if +10% to +22% of nominal
Transfer Time 2 - 6 ms.
Outlets 1pcs Schuko 1pcs IEC

• Battery
Type Maintanence - Free lead acid batteries
Recharge Time 6 hours (to 90% of full capacity)
Voltage 12 VDC
Back up time 5-30 minutes (depending on computer load)

• Display
LED Display Fault, Battery Mode, AC Mode

• Protection
Short Circuit, Overload, Battery Discharge, Overcharge, Tel/Phone line (AP Models only)

• Communication
USB port (only AP models)

• Auidible alarms
Battery Mode (every 10 seconds)
Low Battery (every second)
Overload (every 0.5 second)
Battery Replacement (every 2 seconds)
Fault (Continous)

• Environment
Operating Temp. 0-40 °C
Humidity 0 to 90% non-condensing
Audible Noise <40dBA
Protection Class IP20

• Physical
Net Weight(kg) 4
Dimensions (mm) DxWxH (mm) 100 x 287 x 142

• Standards
EN 62040-1-1 (safety), EN 62040-2 (EMC)
