• Model
GTR1103
• Power (kVA / kW)
3kVA / 2.7kW
• Output Power factor
0.9
• Overall Efficiency (AC-AC)
94%
• Input
Nominal Voltage 220V/230V/240V
Minimum Voltage ( at half load ) 90V
Minimum Voltage ( at full load ) 180V
Maximum Voltage 270V
Frequency 45-65 Hz
Power Factor >0,99
Current Harmonics < 6 %
• Output
Nominal Voltage 220VAC ( factory set & adjustable from LCD panel with 1V steps from 208V to 242V )
Voltage Tolerance ±1%
Nominal current @220V 13,6A
Wave Form Pure Sine Wave
Total Harmonic Distortion: at 100% linear load <1,5%, at 100% non-linear load <3,5%
Frequency 50Hz or 60Hz (adjustable from LCD Panel)
Frequency Tolerance(battery operation) 0,005 %
Static Voltage Regulation (0%-100% load) 1%
Dynamic Voltage Regulation (0%-100% load) 5%
Crest Factor 3:1
Overload: 100% to 125% overload 10 min, 125% to 150% overload 1 min
Greenmode ( Ecomode ) Efficiency > 98%
• Battery
Type Maintenance-free lead acid batteries
Quantity (pcs) 14
Recharge Time < 6h - 8 h
Warning Audible Buzzer through the end of Battery Discharge
• Display panel
LCD Panel: Load %, Input/Output/Bypass Voltages, Output Power ( W & VA ), Output Current, Output p.f., Battery +/- Voltage Values, Input / Output Frequency, DC Bus +/-Voltages, Remaining Back Up Time, Internal Temperature, Heatsink Temperature
Event Log 500pcs ( control availability in detail from LCD panel )
Audible and Visual Alarm Warning - 41 different Alarm Messages
• BY-PASS
Voltage Tolerance ±10% (adjustable)
Frequency Tolerance 3Hz (adjustable from LCD panel between 0.5Hz to 5Hz)
Transfer Time 0 ms
Overload Capability up to 175%
• Protection
Overload Protection - Bypass transfer time is calculated by simulating a temperature related model of a fuse
Short Circuit Protection - Acts as the ideal current source during the short circuit time
Other Protection Protection against excessive heat,voltage,current & Deep Discharge Protection
• Communication
Interface (Communication Ports) - RS232 (standard), SNMP, Modbus and USB (optional)
• Environment
Operating Temperature 0 ˚C.... + 40 ˚C
Storage Temperature -15 ˚C.....+55 ˚C
Proposed Temp. to extend battery life 20 - 25 ˚C
Humidity < 95%
Maximum Altitude 1000m
Audible Noise ( from 1m distance ) Protection Class IP 20
• Physical specifications
Net Weight( without battery ) 32kg
Dimensions(mm) (WxDxH) 272mm x 740mm x 758mm
• Standards
Standards EN 62040-1-1 (safety), EN 62040-2(EMC), EN 62040-3(
Ако притежавате този продукт и имате впечатления за него, моля споделете ги!

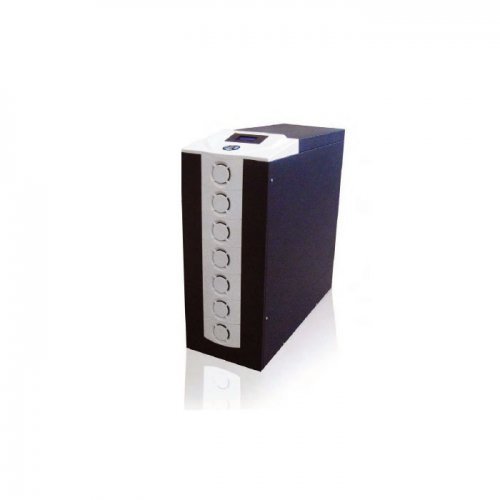

Задайте своя въпрос относно Inform Green Triera 3KVA, Online
