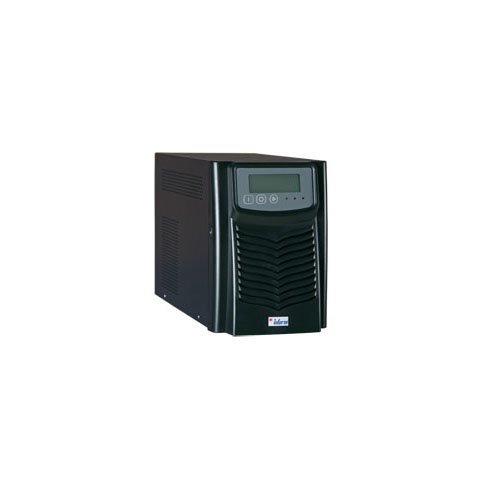

Inform Informer Compact 1000
• Input
Capacity 1000 VA
Voltage 220 V / 230 V ± 25 %
Frequency 50 or 60 Hz ± 5 %
• Output
Voltage (On mains) 220 / 230 Vac ± 12 %
Voltage (On battery) 220 / 230 Vac ± 5 %
Frequency (On battery) 50 or 60 Hz ± 0,5 %
Wave From Sine Wave, THD < 3 %
Voltage Regulation AVR automatically increase output voltage 15% above input voltage if -9% to -25% of nominal; AVR decrease output voltage 15% below input voltage if +9% to +25% of nominal
Transfer Time 6 ms.
Protection & filtering
Spike Protection 320 joule, 2 ms.
Overload Protection UPS automatic shutdown if overload exceeds 110% nominal at 20 sec. and 125% 2 sec.
Unit Input Fuse for overload & short circuit protection
Display
LED Utility Normal, Back up, UPS Fault and Battery Condition
LCD Load Level, Battery Level, Bypass, AVR, Battery Low-Replace-Fault, UPS Fault, Overload
• Battery
Type 2x12V 7Ah
Recharge Time (hour) 2 to 4 Hours 90%
Protection Automatic self - test & discharge protection, replace battery indicator
Voltage 24 Vdc
• Alarms
Audible and Visual Line Failure, Battery Low, Overload and Fault
• Physical
Net Weight 15,5 kg
Dimension WxDxH (mm)175x370x247
• Audible Noise
< 40 dBA (1m from surface)
