- Wireless Standards
-
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
- Frequency
-
2.4 GHz, 5 GHz
- WiFi Speeds
-
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
- Reception Sensitivity
-
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm - Transmission Power
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP) - Wireless Security
-
WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
- Wireless Functions
-
Enable/Disable Wireless Radio, WMM
- Software
- Operation Modes
-
Router Mode, Access Point Mode
- WAN Type
-
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
-
Access Control, Local Management, Remote Management
- DHCP
-
Server, DHCP Client List
- NAT Forwarding
-
Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall Security
-
SPI Firewall, IP and MAC Address Binding
- Guest Network
-
2.4 GHz Guest Network, 5 GHz Guest Network
- Hardware
- Dimensions
-
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

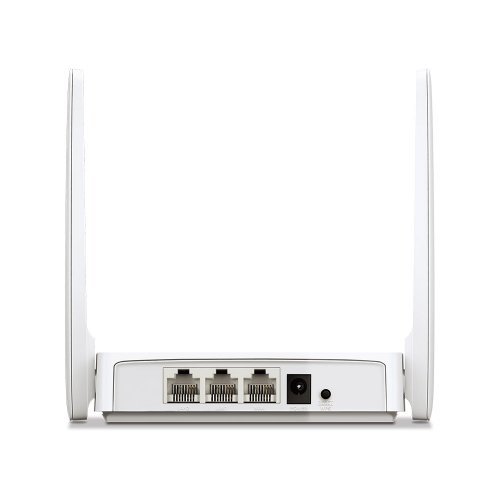

- Interfaces
-
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports - Button
-
Reset/WPS Button
- External Power Supply
-
9V/0.85A
- Antenna Type
-
4× 5 dBi Fixed Omni-Directional Antennas
- Others
- Package Contents
-

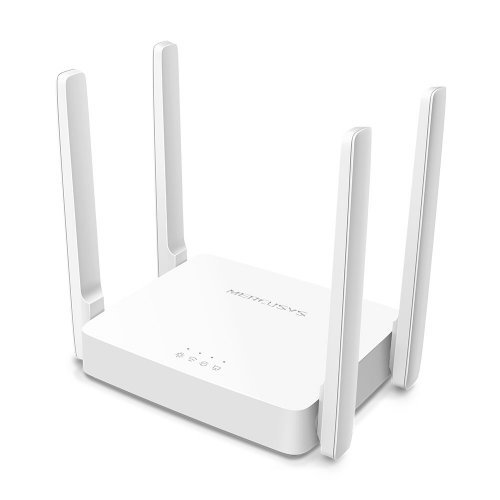

AC1200 Wireless Dual Band Router AC10
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable - Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
