The AC12 creates a reliable, blazing-fast Wi-Fi network using the powerful 802.11ac Wi-Fi standard, 3x faster than wireless N speeds.
More and more devices use the ac standard, and the right router can being their Wi-Fi performance to full potential.
With its advanced wireless speed, the AC12 is the superior choice for faster, stronger Wi-Fi.
With the power of dual band Wi-Fi, be more active with more wireless devices. 300Mbps over the 2.4GHz band is great for surfing
and emails, while 867Mbps over the 5GHz band covers bandwidth-intensive tasks like HD streaming and gaming.
Both bands are transmitted at once, letting you perform these tasks at the same time.

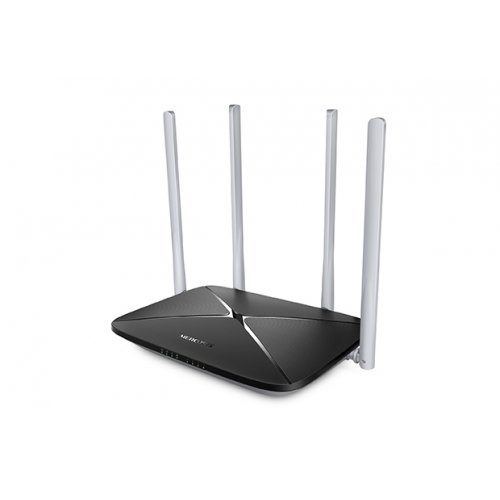

Four external 5dBi antennas powered with advanced antenna technology provide users with larger wireless coverage and wireless signal intensity throughout your large home or office, making weak, dropped connections a thing of the past.
Supervise children and staff with responsible access, controlled by parents or administrators. You can easily set up a black or white list and limit the time of web access.
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your AC12 in minutes.
|Dimensions (W X D X H)||222mm x 140mm x 32mm|
4 10/100Mbps LAN ports
1 10/100Mbps WAN port
|External Power Supply||9VDC/0.85A|
|Antenna Type||4 x 5dBi omni directional antennas|
|Wireless Standards||IEEE 802.11ac、IEEE 802.11n、IEEE 802.11g、IEEE 802.11b、IEEE 802.3、IEEE 802.3u|
|Frequency||2.390 ~ 2.4835GHz
5.150 ~ 5.825GHz
11ac: Up to 867Mbps (Dynamic)
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
11b CCK 1 -96
11g OFDM 6 -93
11n HT20 MCS7 -73
11n HT40 MCS7 -70
11a OFDM 6 -92
11ac VHT20 MCS8 -68
11ac VHT40 MCS9 -64
11ac VHT80 MCS9 -60

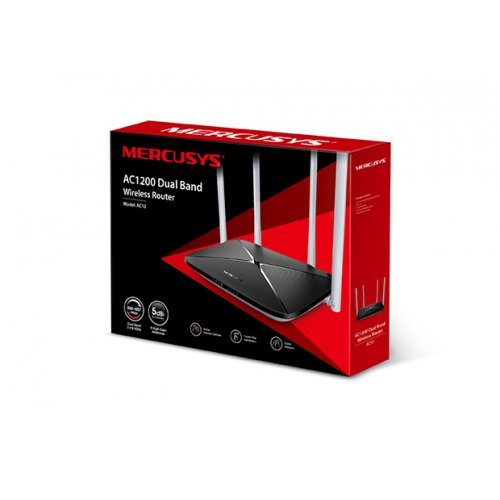

AC1200 Dual Band Wireless Router
Quick installation guide
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
|Wireless Security||WPA-PSK / WPA2-PSK|
|Wireless Functions||WDS bridge|
|WAN Type||Dynamic IP/Static IP/PPPoE|
|Port Forwarding||Virtual server, UPnP, DMZ|
|Firewall Security||IP and MAC address binding|
|Guest Network||2.4GHz guest network|
