With its two 5dBi antennas that work to boost its
reception and signal sensitivity, the MW305R provides
broad wireless coverage.
The MW305R provides fast, stable Wi-Fi for your connected devices. Wireless speeds of up to 300Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.
Advances in R&D have allowed us to create a router that fits in the palm of your hand, without compromising its performance. High quality components, including the MediaTek Chipset, sit at the core of the router, allowing it to be as powerful as it is small.
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your MW305R in minutes.
1 / Create a unique login password
2 / Choose your Internet service and fill in the required information
3 / Set your wireless network name (SSID) and password
Comprehensive security features help your devices form safe connections to the MW305R.
Manage when and how connected devices can access the Internet
Keeps your main network secure by creating a separate network for guests
WPA/WPA2 encryption standards ensure that your wireless connection is safe from intruders
|Dimensions (W X D X H)||169 x 116 x 35 mm|

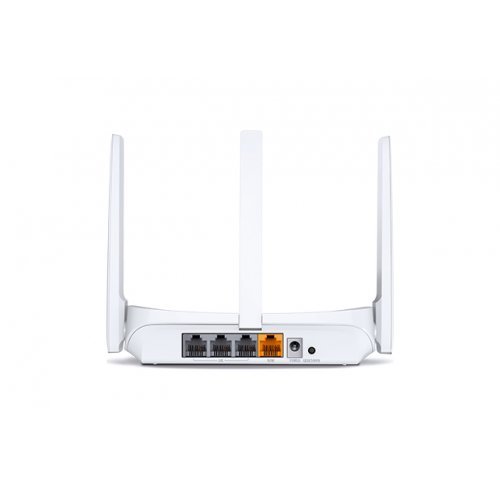

3 10/100Mbps LAN ports
1 10/100Mbps WAN port
|External Power Supply||5VDC/0.6A|
|Antenna Type||3 x 5dBi fixed omni directional antennas|
|Wireless Standards||IEEE 802.11n, IEEE 802.11g, IEEE 802.11b|
|Frequency||2.4 - 2.4835GHz|
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)11b: Up to 11Mbps (Dynamic)
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER1M: -98dBm@8% PER
300Mbps Wireless N Router

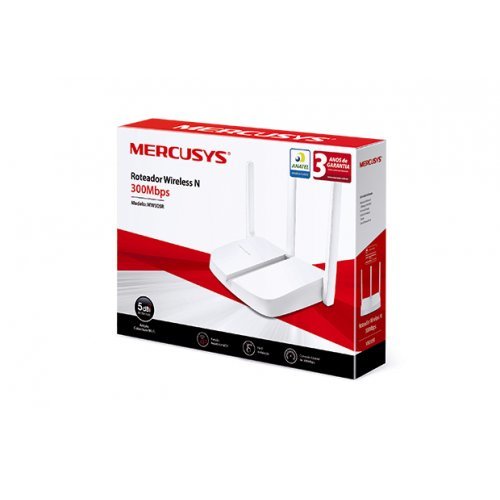

Quick installation guide
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensingStorage humidity: 5% ~ 90%, non-condensing
|Wireless Security||64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK|
|Wireless Functions||WDS bridge|
|WAN Type||Dynamic IP/Static IP/PPPoE/L2TP/PPTP|
Local managementRemote management
|Port Forwarding||Virtual server, UPnP, DMZ|
|Firewall Security||IP and MAC address binding|
|Guest Network||2.4GHz guest network|
