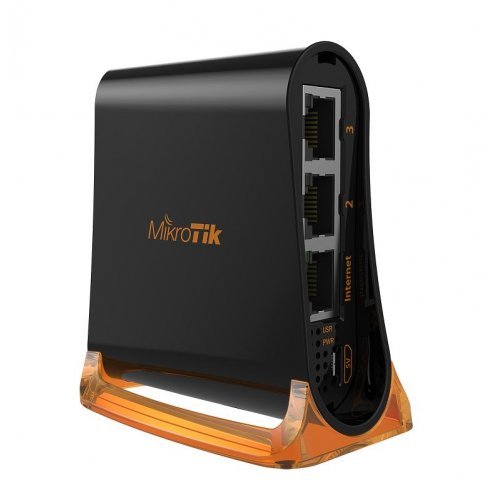

MikroTik hAP mini, RB931-2nD, WiFi рутер

Продуктов код: 23734
Безжичен рутер MikroTik
Безжичен рутер MikroTik hAP mini RB931-2nD Безжичен рутер MikroTik hAP mini RB931-2nD
Безжичен рутер MikroTik
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MikroTik
Модел:
hAP mini
Партиден номер:
RB931-2nD
Гаранция:
12 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MikroTik hAP mini

hAP mini

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports, but can be reconfigured as desired, using the powerful RouterOS configuration options.

The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point - it is already configured out of the box. You simply need to open it’s web configuration page and provide a password for it.

Product specifications

Details
Product code RB931-2nD
10/100 Ethernet ports 3
Antenna gain 1.5
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 48 x 78 x 81mm
License level 4
Max Power consumption 3.5W
Number of chains 2
Operating System RouterOS
Power Jack 1
Size of RAM 32 MB
Storage size 16 MB
Storage type FLASH
Supported input voltage 5 V - 5 V
Wireless chip model QCA9533
Wireless standards 802.11b/g/n
Suggested price $19.95

Wireless specifications

2.4 GHz
 Transmit power (dBm)Receive SensitivityTransmit power (mW)
1MBit/s 22 -96 158
11MBit/s 22 -89 158
6MBit/s 20 -93 100
54MBit/s 18 -74 63
MCS0 20 -93 100
MCS7 16 71 40

wireless parameters may be limited in software, depending on your local regulatory limitations



Included parts

Ethernet test results

RB931-2nD QCA9533 100M three port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 24.4 296.3 70.5 288.8 395.0 202.2
Bridging 25 bridge filter rules 24.4 296.3 70.5 288.8 85.8 43.9
Routing none (fast path) 24.4 296.3 70.5 288.8 386.6 197.9
Routing 25 simple queues 24.4 296.3 64.9 265.8 151.6 77.6
Routing 25 ip filter rules 24.4 296.3 62.3 255.2 61.4 31.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
