MikroTik mAP lite, RBmAPL-2nD

Продуктов код: 23289

Безжичен рутер MikroTik mAP lite, RBmAPL-2nD  (умалена снимка 1) Безжичен рутер MikroTik mAP lite, RBmAPL-2nD  (умалена снимка 2) Безжичен рутер MikroTik mAP lite, RBmAPL-2nD  (умалена снимка 3)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MikroTik
Модел:
mAP lite
Партиден номер:
RBmAPL-2nD
Гаранция:
12 месеца
Цена с включен ДДС:
50.71 лв.

Гаранционен срок 12 месеца

Гаранционните условия са определени от производителя

Безплатна доставка за поръчки над 99.99лв. с ДДС

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за MikroTik mAP lite

  • Ревюта
  • Въпроси и отговори

mAP lite

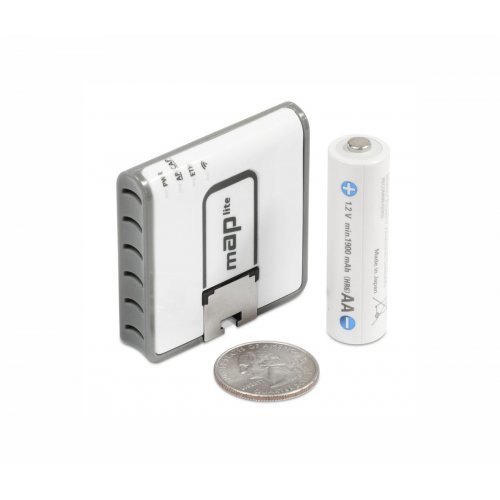

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

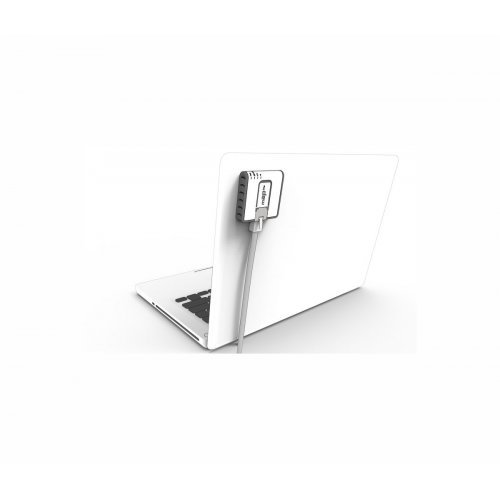

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Product specifications

Details
Product code RBmAPL-2nD
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 1
Wireless chip model QCA9533
Wireless standards 802.11b/g/n
Power Jack 1
Supported input voltage 5 V - 60 V
PoE in 802.3at
Dimensions 48x49x11mm
Operating System RouterOS
Tested ambient temperature -30 + 70 C
License level 4
Antenna gain 1.5
CPU QCA9533
Max Power consumption 3.5W
Number of chains 2
Storage type FLASH
Storage size 16 MB
Suggested price $25

Wireless specifications

2.4 GHz
 Transmit power (dBm)Receive SensitivityTransmit power (mW)
1MBit/s 22 -96 158
11MBit/s 22 -89 158
6MBit/s 20 -93 100
54MBit/s 18 -74 63
MCS0 20 -93 100
MCS7 16 -71 40

wireless parameters may be limited in software, depending on your local regulatory limitations



Included parts

Ethernet test results

RBmAPL-2nD QCA9533 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
