Жичен рутер MikroTik RB1100AHx4 Dude Edition

Name: Жичен рутер MikroTik RB1100AHx4 Dude Edition
Brand: MikroTik
SKU: RB1100AHx4 Dude Edition
Availability: OutOfStock

Продуктов код: 25658

Жичен рутер MikroTik RB1100AHx4 Dude Edition (снимка 1)

Жичен рутер MikroTik RB1100AHx4 Dude Edition

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

MikroTik

Модел:

RB1100AHx4 Dude Edition

Партиден номер:

Гаранция:

12 месеца ( юридически лица ) / 24 месеца ( физически лица )

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

MikroTik RB1100AHx4 Dude Edition

Brochure

RB1100AHx4 Dude Edition

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

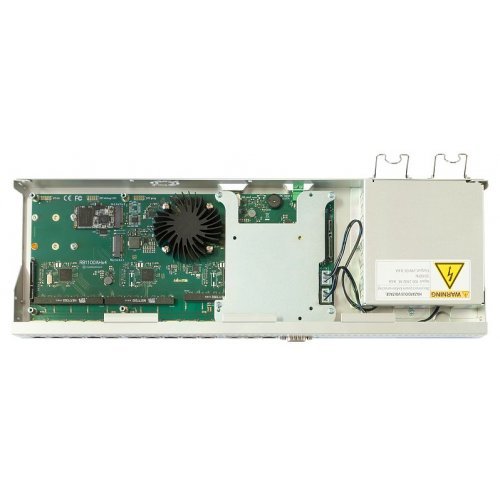

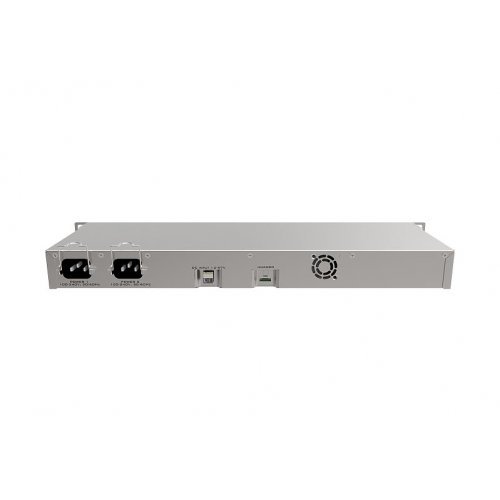

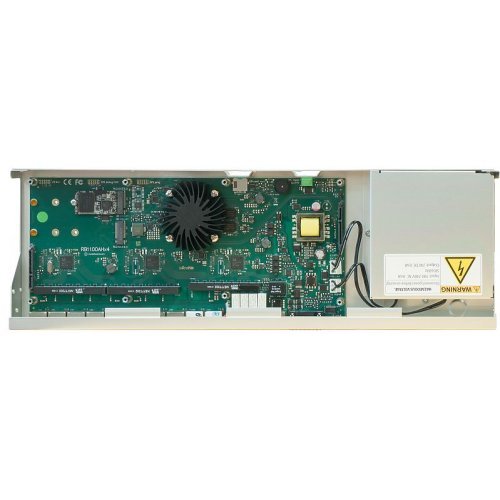

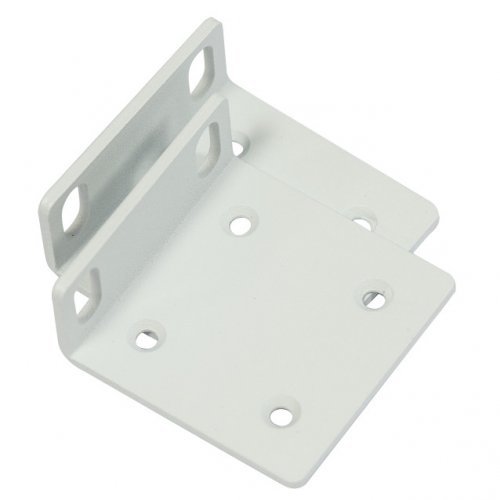

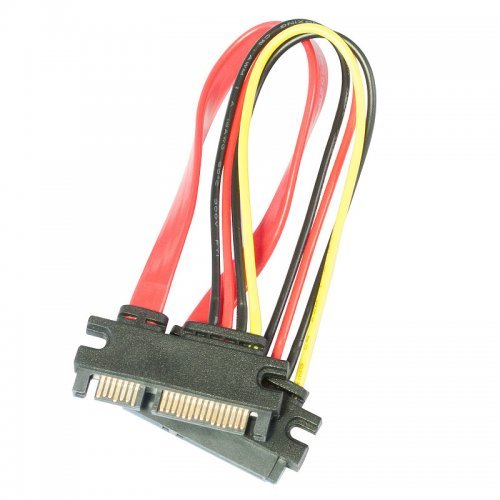

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

Specifications

Details
Product code	RB1100Dx4
Architecture	ARM 32bit
CPU	AL21400-1400-A0-E-1AN-8-C
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	444 x 148 x 47 mm
License level	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
Suggested price	$349.00

Powering

Details
Max Power consumption	25W
Number of DC inputs	2 (PoE-IN, 2-pin terminal)
PoE in	802.3af/at
PoE in input Voltage	20-57 V
2-pin terminal input Voltage	-48, 12-57 V
Number of AC inputs	2
AC input range	100-240 V

Ethernet

Details
10/100/1000 Ethernet ports	13

Peripherals

Details
Extended storage	60GB M.2 SSD included
M.2 slots	2
SATA ports	2x SATA3
Serial port	RS232

Other

Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Ethernet test results

RB1100Dx4		AL21400 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	606.5	7,365.3	1,736.4	7,112.3	5,509.7	2,821.0
Bridging	25 bridge filter rules	606.5	7,365.3	1,107.8	4,537.5	1,153.2	590.4
Routing	none (fast path)	606.5	7,365.3	1,736.4	7,112.3	5092.3	2,607.3
Routing	25 simple queues	606.5	7,365.3	933.6	3,824.0	960.3	491.7
Routing	25 ip filter rules	543.7	6,602.7	561.8	2,301.1	564.6	289.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB1100Dx4		RB1100AHx4 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	122.0	1366.4	124.9	511.6	127.0	65.0
256 tunnels	AES-128-CBC + SHA1	192.7	2158.2	200.5	821.2	203.4	104.1
256 tunnels	AES-128-CBC + SHA256	192.4	2154.9	200.5	821.2	203.4	104.1
256 tunnels	AES-256-CBC + SHA1	180.0	2016.0	188.2	770.9	190.3	97.4
256 tunnels	AES-256-CBC + SHA256	180.0	2016.0	188.2	770.9	190.3	97.4
256 tunnels	AES-128-GCM	192.7	2158.2	202.2	828.2	203.4	104.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
