CPU • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4 * This function will be supported depend on the CPU.
|
|
Chipset • AMD® A320 Chipset
|
|
Main Memory • 2 x DDR4 memory slots, support up to 32GB • Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz* • Dual channel memory architecture • Supports ECC UDIMM memory (non-ECC mode) • Support non-ECC UDIMM memory
* 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz. * Please refer www.msi.com for more information on compatible memory
|
|
Slots • 1 x PCIe 3.0 x16 slots - RYZEN series processors support x16 mode - 7th Gen A-series/ Athlon™ processors support x8 mode • 2 x PCIe 3.0 x1 slots
|
|
Onboard Graphics • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
* Only support when using a 7th Gen A-series/ Athlon™ processor * Maximum shared memory of 2048 MB
|
|
Storage • AMD® A320 Chipset • 4 x SATA 6Gb/s ports • Supports RAID 0, RAID1 and RAID 10
|
|
USB • AMD® A320 Chipset - 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
|
|
Audio • Realtek® ALC887 Codec - 7.1-Channel High Definition Audio
|
|
LAN • 1 x Realtek® 8111H Gigabit LAN controller
|
|
Internal I/O Connectors - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 4 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin system fan connector - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Clear CMOS jumper
|
|

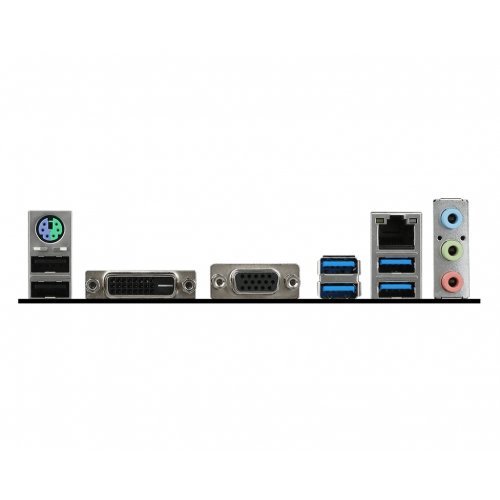

Back Panel I/O Ports - 1 x PS/2 keyborard/ mouse combo port - 2 x USB 2.0 Type-A ports - 1 x DVI-D port - 1 x VGA port - 1 x LAN (RJ45) port - 4 x USB 3.1 Gen1 Type-A ports - 3 x audio jacks
|
|
Dimension • 9.3 in. x 7.4 in. (23.6 cm x 18.7 cm) • m-ATX Form Factor
|
|
Mounting • 6 mounting holes
|
