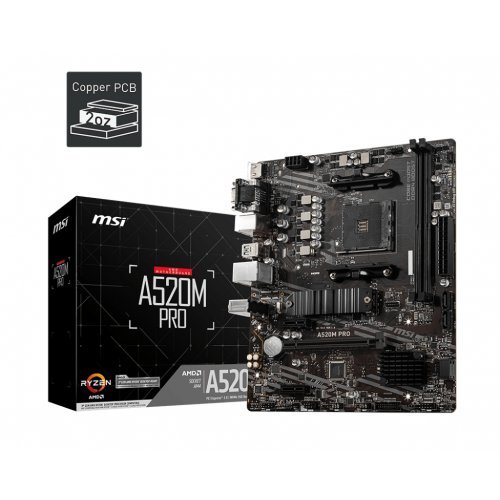

Дънна платка MSI A520M PRO

Name: Дънна платка MSI A520M PRO
Brand: MSI
SKU: A520M PRO
Price: 122.36 BGN
Availability: OnlineOnly

Продуктов код: 85481

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

MSI

Модел:

A520M PRO

Партиден номер:

A520M PRO

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

AMD A520

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

mATX

Видео изходи:

D-Sub(VGA), DisplayPort, HDMI

Wi-Fi свързаност:

Не

Цена с включен ДДС:

122.36 лв.

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

MSI A520M PRO

CPUs supported: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processor

Memory type: 2x DDR4 memory slots, support up to 64GB 1;
Supports DDR4 1866 2133 2400 2667 2800 2933 3000 3066 3200 MHz by JEDEC;
Supports DDR4 2667 2800 2933 3000 3066 3200 3466 3600 3733 3866 4000 4133 4266 4400 4600+ MHz by A-XMP OC MODE;
1DPC 1R max speed 4600 MHz;
1DPC 2R max speed 3866 MHz;
Dual channel memory architecture;
Supports non-ECC UDIMM memory;
Supports ECC UDIMM memory non-ECC mode;
Supports un-buffered memory;

Graphics: 1x VGA port, supports a maximum resolution of 2048x153650Hz, 2048x128060Hz, 1920x120060Hz2;
1x HDMI 2.1 port, supports a maximum resolution of 4096x216060Hz1 2;
Support HDCP 1.4 2.3;
1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 60Hz1;
Maximum shared memory of 16GB;

Expansion Slots: 1x PCIe 3.0 x16 slot From AMD processor1;
Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processor;
Supports x8 speed with Ryzen 3000G processor;
Supports x4 speed with AMD Athlon with Radeon Graphics processor;
2x PCIe 3.0 x1 slot;

Storage: AMD A520 Chipset;
4x SATA 6Gbs port;
1x M.2 slot From AMD processor, Key M;
Supports PCIe 3.0 x4 SATA 6Gs with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processor;
Supports SATA 6Gbs with Athlon with Radeon Vega Graphics processor;
Supports 2242 2260 2280 storage device;

IO: VGA;
Keyboard Mouse;
LAN port;
HDMI;
DisplayPort;
USB 2.0 Port;
USB 3.2 Gen 1 5Gbps Type-A;
USB 3.2 Gen 1 5Gbps Type-A;
Audio Connector;

Connectors: 1x 24-pin ATX main power connector;
1x 8-pin ATX 12V power connector;
4x SATA 6Gbs connector;
1x Serial port connector;
1x M.2 slot M-Key;
1x USB 3.2 Gen 1 5Gbps connector supports additional 2 USB 3.2 Gen 1 5Gbps ports;
2x USB 2.0 connectors supports additional 4 USB 2.0 ports;
1x 4-pin CPU fan connector;
1x 4-pin system fan connector;
1x Front panel audio connector;
2x System panel connector;
1x Chassis Intrusion connector;
1x 4-pin RGB LED connector;
1x 3-pin RAINBOW LED connector;
1x TPM module connector;
1x Clear CMOS jumper;
