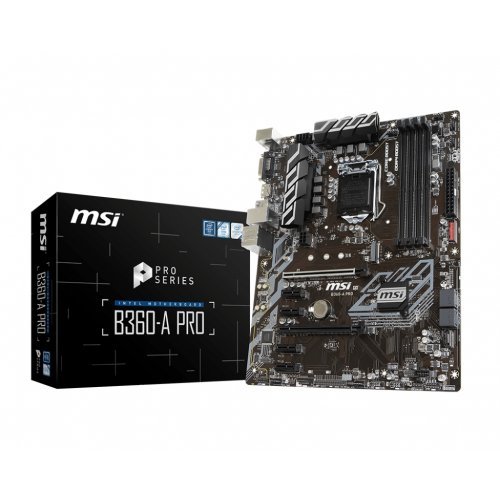

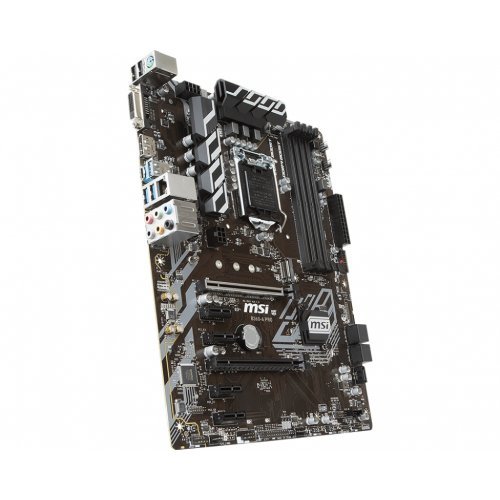

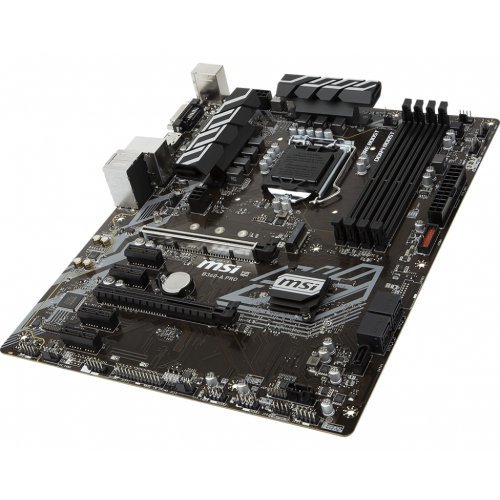

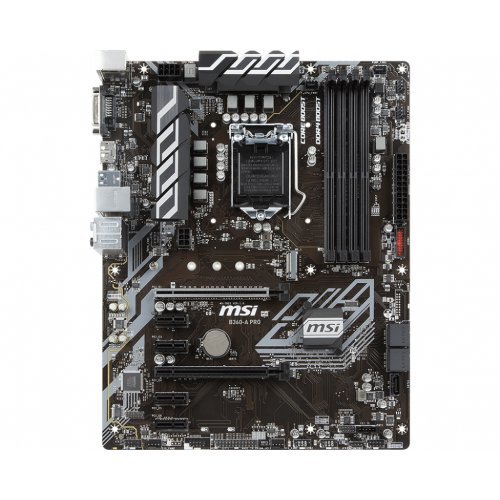

Дънна платка MSI B360-A PRO

Продуктов код: 27755
Дънна платка MSI
Дънна платка MSI B360-A PRO Дънна платка MSI B360-A PRO Дънна платка MSI B360-A PRO Дънна платка MSI B360-A PRO Дънна платка MSI B360-A PRO
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
B360-A PRO
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel B360
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DisplayPort, DVI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI B360-A PRO

Processor

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

See supported processors

Chipset

Intel® B360 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to Compatibility for more information on compatible memory

See supported memory

Slots

  • 2 x PCIe 3.0 x16 slots (supports x16/ x4 mode)
  • 4 x PCIe 3.0 x1 slots

Onboard Graphics

  • 1 x DisplayPort 1.2, supports a maximum resolution of 4096x2304 @ 60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

Intel® B360 Chipset

  • 5 x SATA 6Gb/s ports1
  • 1 x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
    • Intel® Optane™ Memory Ready
  1. SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 6-pin ATX PCIe power connector
  • 5 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water pump fan connector
  • 5 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x Series port connector
  • 1 x Parallel port connector
  • 1 x TPM module connector
  • 1 x Thunderbolt Add-on Card Connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

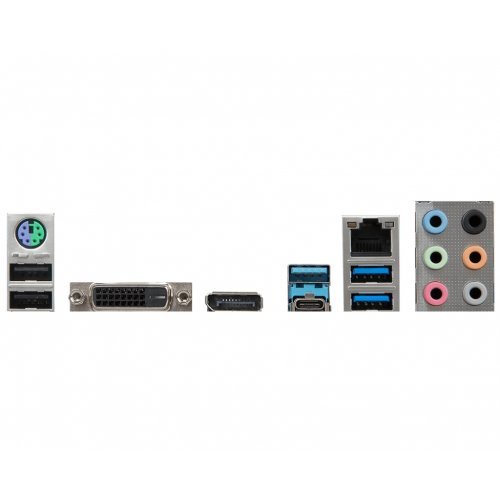

Back panel ports

  1. PS/2 Combo Port
  2. DVI-D Port
  3. DisplayPort
  4. USB 3.1 Gen2 Type A
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. USB 3.1 Gen2 Type C
  9. USB 3.1 Gen1
MSI B360-A PRO back panel ports

Dimensions

  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Box content

MSI B360-A PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
