MSI B360M Bazooka, LGA1151

Продуктов код: 27957
Дънна платка MSI

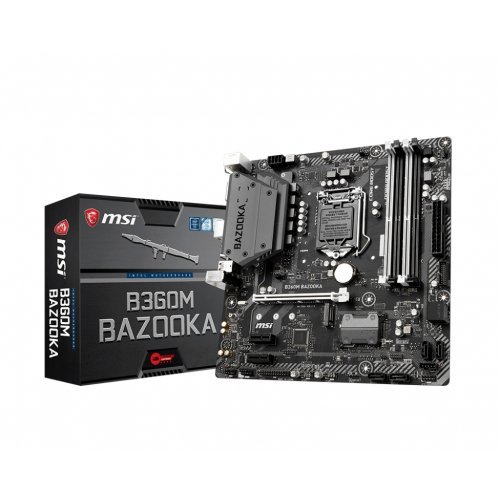

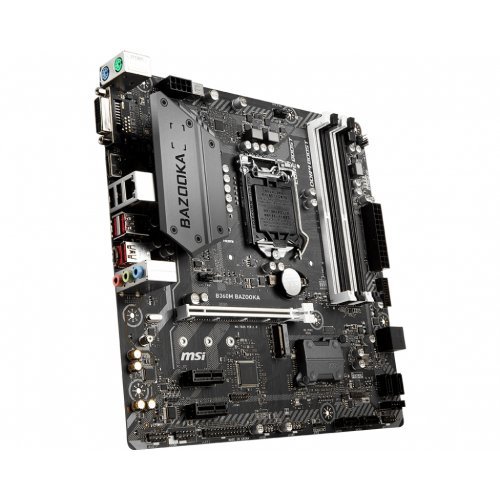

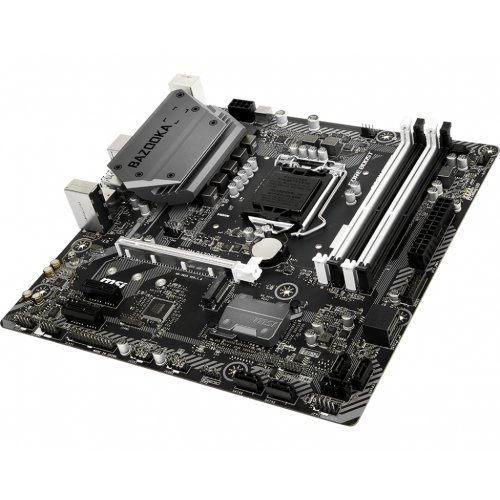

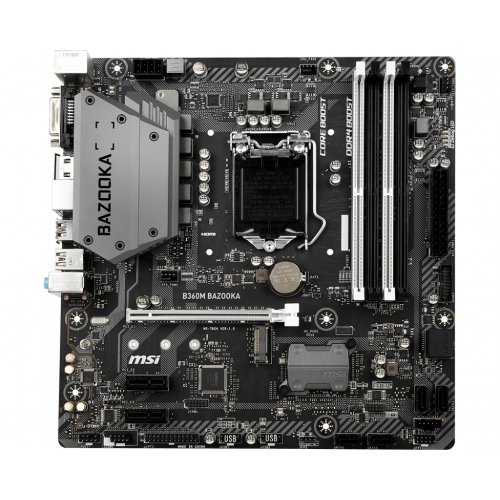

Дънна платка MSI B360M Bazooka, LGA1151 (умалена снимка 1) Дънна платка MSI B360M Bazooka, LGA1151 (умалена снимка 2) Дънна платка MSI B360M Bazooka, LGA1151 (умалена снимка 3) Дънна платка MSI B360M Bazooka, LGA1151 (умалена снимка 4) Дънна платка MSI B360M Bazooka, LGA1151 (умалена снимка 5)
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
B360M Bazooka
Партиден номер:
-
Гаранция:
36 месеца
Чипсет:
Intel B360
Socket:
Intel 1151
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
DVI, HDMI
Form Factor:
Micro ATX
Интерфейс:
M.2, PS/2, RJ-45, USB 2.0, USB 3.1

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Информация за MSI B360M Bazooka

  • Ревюта
  • Въпроси и отговори

Processor

Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151

See supported processors

Chipset

Intel® B360 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memorye
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

Slots

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 3.0 x1 slots

Onboard Graphics

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

Storage

Intel® B360 Chipset

  • 6 x SATA 6Gb/s ports1
  • 1 x M.2 slots (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Dual Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 1 x Parallel port connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Thunderbolt add-on card connector
  • 1 x RGB LED connector
  • 1 x Clear CMOS jumper

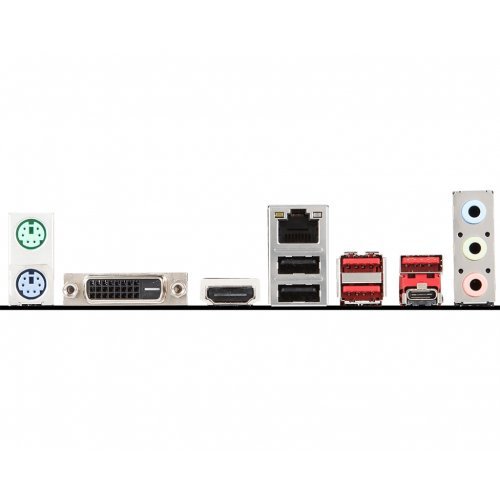

Back panel ports

  1. Mouse and Keyboard Port
  2. LAN Port
  3. USB 3.1 Gen1 Type A
  4. HD Audio Connectors
  5. DVI-D Port
  6. HDMI Port
  7. USB 2.0 Port
  8. USB 3.1 Gen1 Type C
MSI B360M BAZOOKA back panel ports

Dimensions

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor

Mounting

8 mounting holes

Box content

MSI B360M BAZOOKA box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
    1. These pictures are for reference only and may vary without notice.
