MSI B360M Mortar, LGA1151

Продуктов код: 31175
Дънна платка MSI

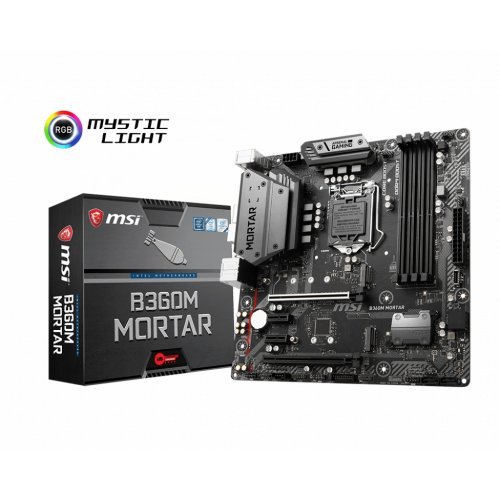

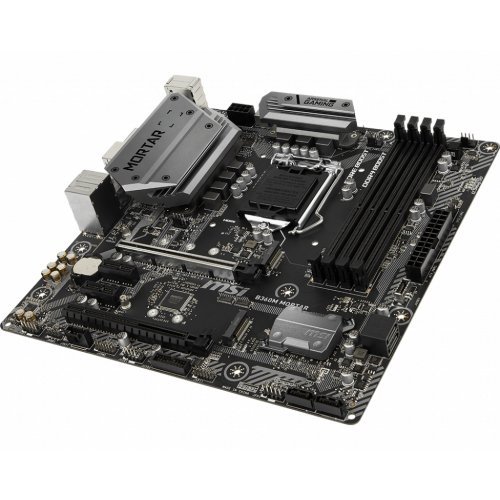

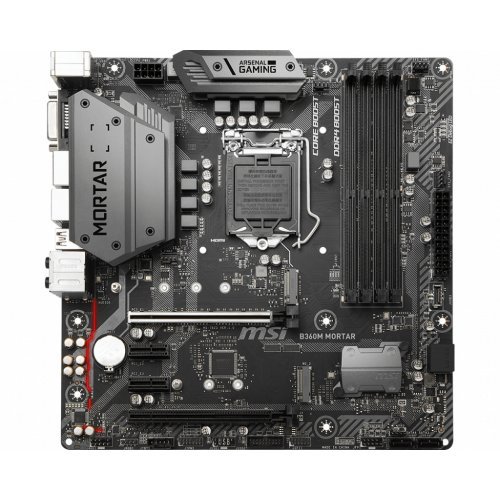

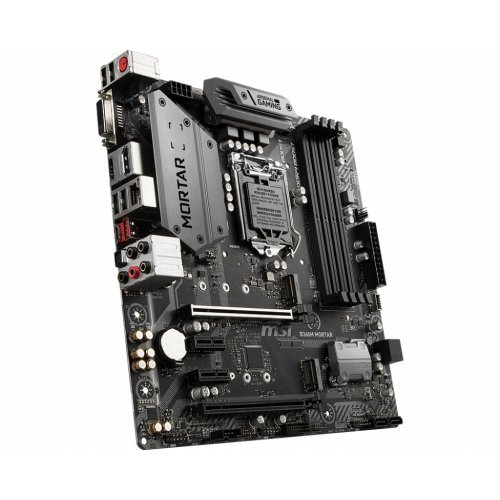

Дънна платка MSI B360M Mortar, LGA1151 (умалена снимка 1) Дънна платка MSI B360M Mortar, LGA1151 (умалена снимка 2) Дънна платка MSI B360M Mortar, LGA1151 (умалена снимка 3) Дънна платка MSI B360M Mortar, LGA1151 (умалена снимка 4) Дънна платка MSI B360M Mortar, LGA1151 (умалена снимка 5)
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
B360M Mortar
Партиден номер:
-
Гаранция:
36 месеца
Чипсет:
Intel B360
Socket:
Intel 1151
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
DisplayPort, DVI, HDMI
Form Factor:
Micro ATX
Интерфейс:
DisplayPort, HDMI, M.2, Optical S/PDIF out, PS/2, RJ-45, USB 2.0, USB 3.1 Gen 2 (10 Gbps)
Цена с включен ДДС:
199.54 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за MSI B360M Mortar

  • Ревюта
  • Въпроси и отговори
  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666 MHz
  • Twin Turbo M.2: With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Intel Turbo USB 3.1 Gen2: Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Core Boost: With premium layout optimized power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • GAMING LAN: Experience smooth online gaming experience by reducing CPU overhead and offer long-term network usage.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
  • MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 2-Way AMD Crossfire™
  • EZ Debug LED: Easiest way to troubleshoot.



Processor

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

Chipset

Intel® B360 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memorye
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

Slots

  • 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
  • 2 x PCIe 3.0 x1 slots

Onboard Graphics

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

Intel® B360 Chipset

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**2
    • Intel® Optane™ Memory Ready ,supported on M2_2 3
  1. SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.
  2. M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
  • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)

Audio

Dual Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Intel I219-V Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 3 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x 5050 RGB LED strip 12V connector
  • 1 x Thunderbolt add-on card connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

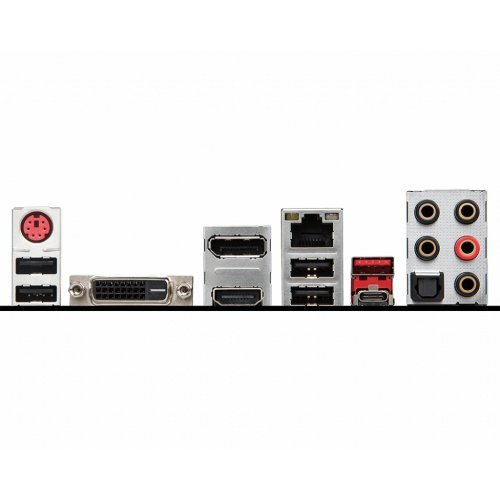

Back panel ports

  1. PS/2 Combo Port
  2. DisplayPort
  3. LAN Port
  4. USB 3.1 Gen2 Type A
  5. HD Audio Connectors
  6. USB 2.0 Port
  7. DVI-D Port
  8. HDMI Port
  9. USB 2.0 Port
  10. USB 3.1 Gen2 Type C
  11. Optical S/PDIF OUT


Dimensions

  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
  • Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

Support for Windows® 10 64-bit
