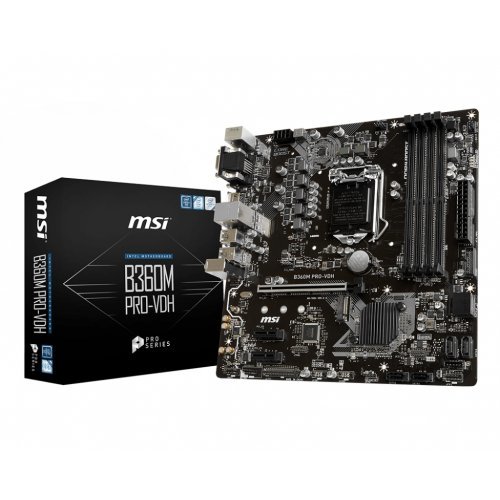

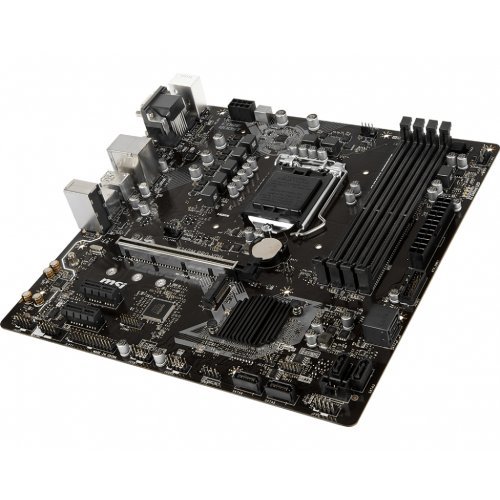

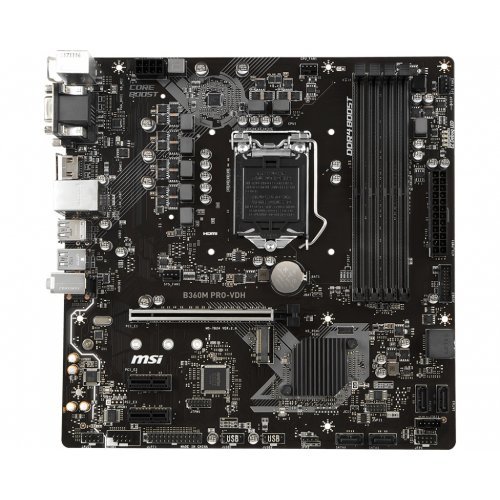

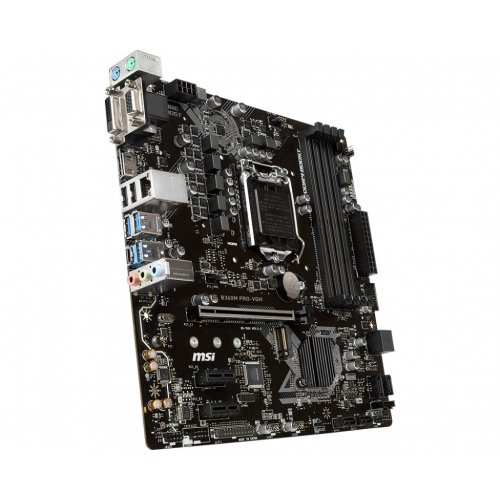

Дънна платка MSI B360M PRO-VDH

Продуктов код: 27956
Дънна платка MSI
Дънна платка MSI B360M PRO-VDH Дънна платка MSI B360M PRO-VDH Дънна платка MSI B360M PRO-VDH Дънна платка MSI B360M PRO-VDH Дънна платка MSI B360M PRO-VDH
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
B360M PRO-VDH
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel B360
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI B360M PRO-VDH

Processor

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

See supported processors

Chipset

Intel® B360 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz Memory
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Slots

  • 1x PCIe 3.0 x16 slot
  • 2x PCIe 3.0 x1 slots

Onboard Graphics

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

Storage

Intel® B360 Chipset

  • 6 x SATA 6Gb/s ports1
  • 1 x M.2 slot (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

  • 6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x RTL8111H Gigabit LAN controller

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 1x Parallel port connector
  • 1x Serial port connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Thunderbolt add-on card connector
  • 1x Clear CMOS jumper

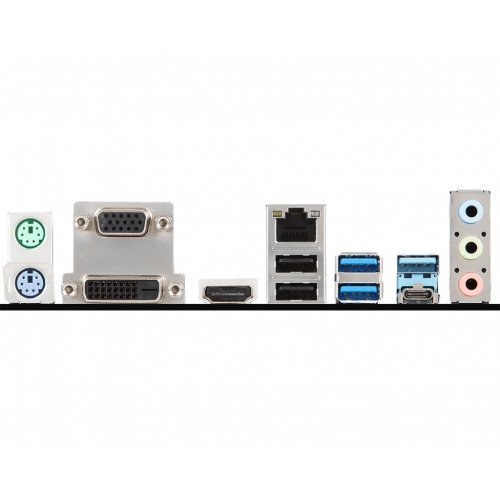

Back panel ports

  1. 1x PS/2 mouse port
  2. 1x VGA port
  3. 1x HDMI™ port
  4. 1x LAN (RJ45) port
  5. 2x USB 3.1 Gen1 ports
  6. 1x USB 3.1 Gen1 Type-A port
  7. 1x PS/2 keyboard port
  8. 1x DVI-D port
  9. 2x USB 2.0 ports
  10. 1x USB 3.1 Gen1 Type-C port
  11. 3x Audio Jacks
MSI Z370 SLI PLUS back panel ports

Dimensions

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor

Mounting

8 mounting holes

Box content

MSI Z370-A PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
