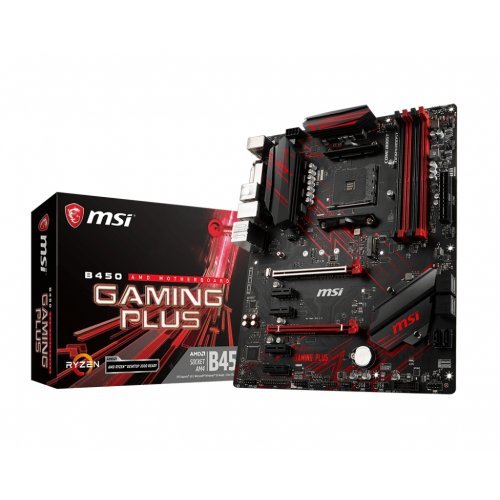

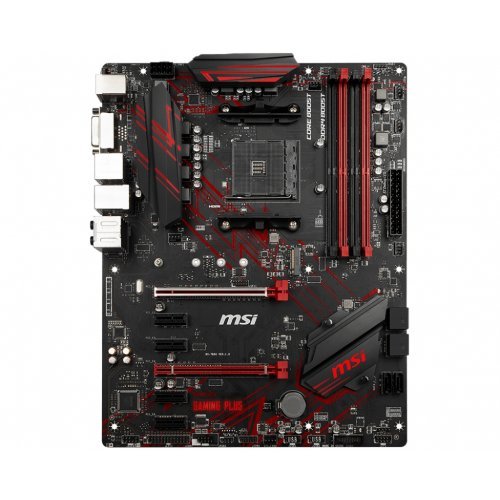

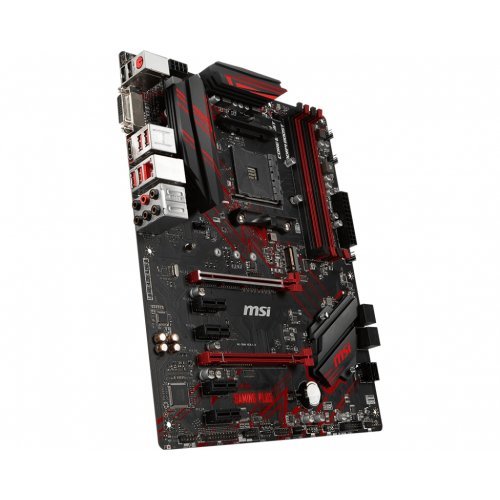

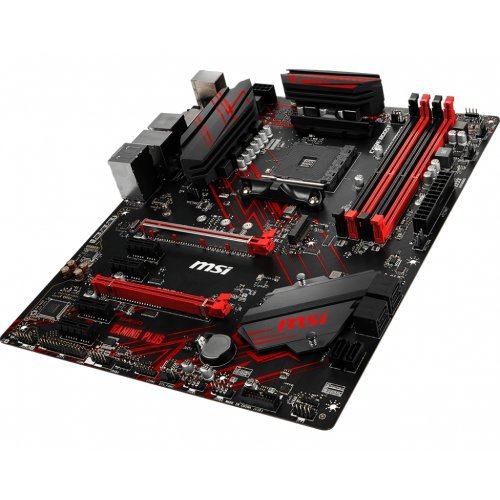

Дънна платка MSI B450 Gaming Plus

Продуктов код: 29051
Дънна платка MSI
Дънна платка MSI B450 Gaming Plus Дънна платка MSI B450 Gaming Plus Дънна платка MSI B450 Gaming Plus Дънна платка MSI B450 Gaming Plus Дънна платка MSI B450 Gaming Plus
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
B450 Gaming Plus
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD B450
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
ATX
Видео изходи:
DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI B450 Gaming Plus

  • Supports AMD® RYZEN™ 1st and 2nd Generation / Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
  • Supports DDR4-3466+(OC) Memory
  • Lightning Fast Game experience: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
  • Audio Boost with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
  • VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
  • BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
  • GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players



PROCESSOR

Supports AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

See supported processors

CHIPSET

AMD® B450 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)

See supported memory

SLOTS

  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
    • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
  • 4 x PCIe 2.0 x1 slots1
  1. PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

MULTI-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® CPU

  • 2 x SATA 6Gb/s ports1
  • 1 x M.2 ports (Key M)1
    • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
    • SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
  1. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID

AMD® B450 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

ONBOARD GRAPHICS

  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2
  1. Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
  2. Maximum shared memory of 2048 MB

USB

AMD® B450 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors

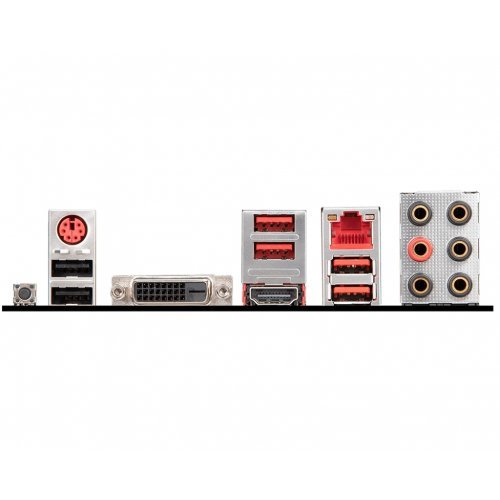

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. USB 3.1 Gen1
  3. LAN Port
  4. HD Audio Connectors
  5. BIOS Flashback Button
  6. USB 2.0 Port
  7. DVI-D Port
  8. HDMI Port
  9. USB 3.1 Gen2
MSI B450 GAMING PLUS back panel ports

DIMENSIONS

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

BOX CONTENT

MSI B450 GAMING PLUS box content
