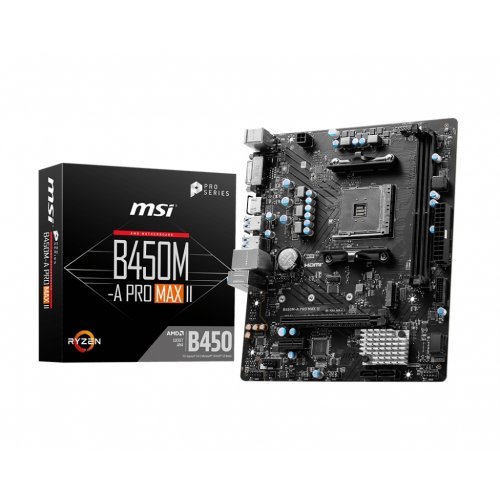

MSI B450M-A
Характеристики
CPU's supported:
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors;
Socket AM4
Memory type:
2x DDR4, Maximum Memory Capacity 64GB;
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE);
Supports Dual-Channel mode;
Supports non-ECC, UDIMM memory;
Supports ECC UDIMM memory (non-ECC mode);
Supports un-buffered memory
Chipset: AMD B450
Graphics:
1x HDMI™;
Support HDMITM 1.4, maximum resolution of 4K 24Hz*;
1x DVI
Expansion Slots:
1x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage:
1x M.2;
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices;
4x SATA 6G
I/O:
Keyboard/Mouse;
DVI-D;
HDMI™;
USB 3.2 Gen 1 5Gbps (Type-A);
2.5G LAN;
Audio connectors;
USB 2.0
Connectors:
1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
2x USB 3.2 Gen1 Type A ports
Audio:
Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
LAN: Realtek® 8125 2.5Gbps LAN controller
Form Factor:
mATX;
200mmx236mm
OS: Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty: 36 Months
