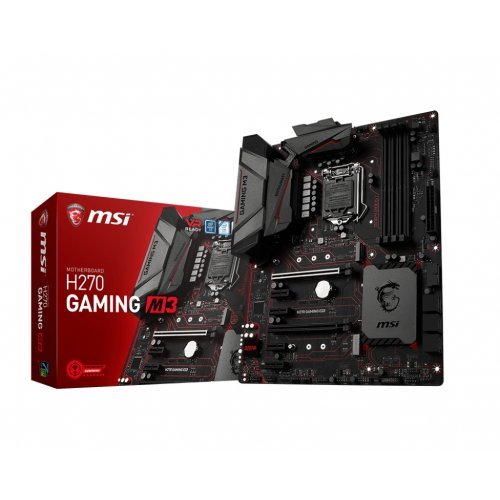

Дънна платка MSI H270 Gaming M3

Продуктов код: 24590
Дънна платка MSI
Дънна платка MSI H270 Gaming M3 Дънна платка MSI H270 Gaming M3 Дънна платка MSI H270 Gaming M3 Дънна платка MSI H270 Gaming M3 Дънна платка MSI H270 Gaming M3
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
H270 Gaming M3
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel H270
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI H270 Gaming M3

  • Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
  • Supports DDR4-2400 Memory (Max.)
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • VR Ready: Best virtual reality game experience without latency
  • Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
  • Twin Turbo M.2 with Steel Armor. Intel Optane Memory Ready, Lightning USB 3.1 Gen2
  • Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • GAMING LAN with LAN Protect, powered by Killer™: The best online gaming experience with lowest latency and bandwidth management
  • Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
  • MULTI-GPU: With Steel Armor PCI-E slot. Supports AMD Crossfire™
  • In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster
  • EZ Debug LED: Easiest way to troubleshoot
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players



CPU

• Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151



Chipset

• Intel® H270 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 2400/ 2133 MHz*
- 6th Gen processors support DDR4 2133 MHz*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer www.msi.com for more information on compatible memory.



Slots

• 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)*
• 4 x PCIe 3.0 x1 slots
* The PCI_E4 slot will be unavailable when an M.2 SSD module has been installed in the M.2_2 slot.
** The PCI_E2 slot will be unavailable when an expansion card has been installed in the PCI_E5 slot.
** The PCI_E3 slot will be unavailable when an expansion card has been installed in the PCI_E6 slot.


Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology



Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz


Storage

• Intel® H270 Chipset
• 6 x SATA 6Gb/s ports*
• 2x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host
Card** - M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots
• Supports Intel® Smart Response Technology for Intel Core™ processors (optional)

* M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs.
** The Turbo U.2 Host Card is not included, please purchase separately.




RAID (optional)

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID1 for M.2 PCIe storage devices*
* M.2 PCIe RAID volume can be created with M.2 GENIE.



USB

• ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• Intel® H270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)



Audio

• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output



LAN

• 1 x Killer™ E2500 Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector



Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor



Mounting

• 9 mounting holes
