Дънна платка MSI H310M Gaming Arctic

Продуктов код: 29272
Дънна платка MSI
Дънна платка MSI H310M Gaming Arctic Дънна платка MSI H310M Gaming Arctic Дънна платка MSI H310M Gaming Arctic Дънна платка MSI H310M Gaming Arctic Дънна платка MSI H310M Gaming Arctic
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
H310M Gaming Arctic
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel H310
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
mATX
Видео изходи:
DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI H310M Gaming Arctic

  • Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA 1151
  • Supports DDR4 Memory, up to 2666 MHz
  • MYSTIC LIGHT Sync: Synchronize other RGB solutions and control all LEDs in one click through Mystic Light APP or a mobile device.
  • Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
  • In-Game Weapons: GAMING Hotkey, X-Boost.
  • EZ Debug LED: Easiest way to troubleshoot.
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.





PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

See supported processors

CHIPSET

Intel® H310 Chipset

MEMORY

  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz Memory
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

See supported memory

SLOTS

  • 1 x PCIe 3.0 x16 slots
  • 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

STORAGE

Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports
  • 1 x M.2 slots (Key M)
    • Support up to PCIe 2.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280 storage devices

USB

Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
  • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

AUDIO

Dual Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel I219-V Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x LED connector
  • 1 x Clear CMOS jumper

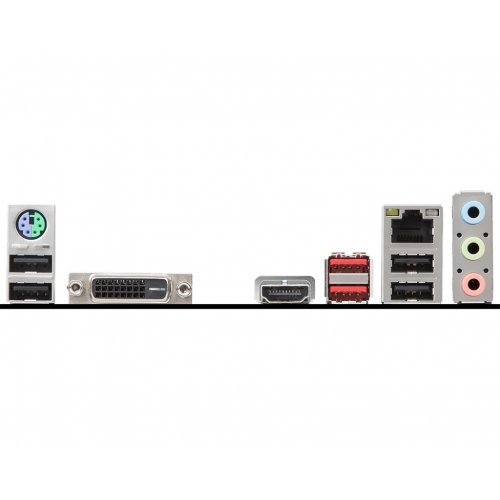

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. LAN Port
  3. HD Audio Connectors
  4. USB 2.0 Port
  5. DVI-D Port
  6. HDMI
  7. USB 3.1 Gen1 Port
  8. USB 2.0 Port
MSI H310M GAMING ARCTIC back panel ports

DIMENSIONS

  • 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
  • m-ATX Form Factor

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MSI H310M GAMING ARCTIC box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
