MSI H370 Gaming Pro Carbon, LGA1151

Продуктов код: 27770
Дънна платка MSI
Дънна платка MSI H370 Gaming Pro Carbon, LGA1151 (умалена снимка 1) Дънна платка MSI H370 Gaming Pro Carbon, LGA1151 (умалена снимка 2) Дънна платка MSI H370 Gaming Pro Carbon, LGA1151 (умалена снимка 3) Дънна платка MSI H370 Gaming Pro Carbon, LGA1151 (умалена снимка 4) Дънна платка MSI H370 Gaming Pro Carbon, LGA1151 (умалена снимка 5)
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
H370 Gaming Pro Carbon
Партиден номер:
-
Гаранция:
36 месеца
Чипсет:
Intel H370
Socket:
Intel 1151
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
DisplayPort, HDMI
Form Factor:
ATX
Интерфейс:
M.2, Optical S/PDIF out, PS/2, RJ-45, USB 2.0, USB 3.1, USB 3.1 Gen 2 (10 Gbps)

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Информация за MSI H370 Gaming Pro Carbon

  • Ревюта
  • Въпроси и отговори

Processor

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

See supported processors

Chipset

Intel® H370 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memorye
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

Slots

  • 2 x PCIe 3.0 x16 slots (support x16/x4 modes)1
  • 3 x PCIe 3.0 x1 slots
  1. Please refer to www.msi.com for more information on compatible memory

Onboard Graphics

  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
  • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

Intel® H370 Chipset

  • 6 x SATA 6Gb/s ports*1
  • 2 x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready for all M.2 slots
  1. SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M2_1 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® H370 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices1
  1. M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer user manual for details.

USB

Intel® H370 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports
    (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector)
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

ASMedia® ASM1074

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen 2 Type-C connector
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water pump fan connector
  • 5 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x 5050 RGB LED strip 12V connector (JRGB1)
  • 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
  • 1 x CORSAIR connector (JCORSAIR1)
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

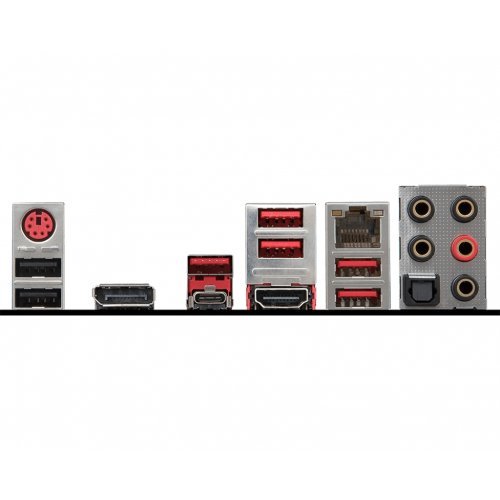

Back panel ports

  1. PS/2 Combo Port
  2. USB 3.1 Gen1
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Port
  6. DisplayPort
  7. USB 3.1 Gen2 Type A + C
  8. HDMI Port
  9. USB 3.1 Gen1
  10. Optical S/PDIF OUT
MSI H370 GAMING PRO CARBON

Dimensions

  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Box content

  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
