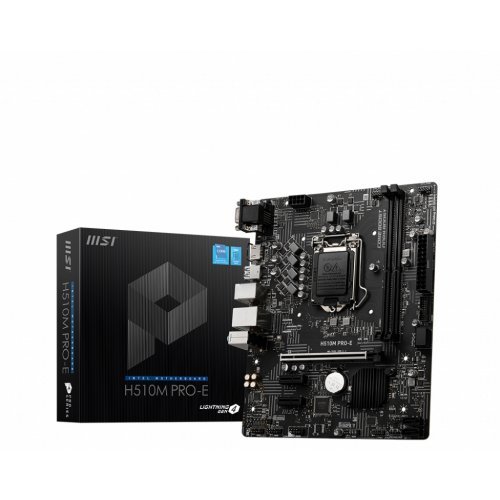

MSI H510M PRO-E
Характеристики
CPU's supported: Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Chipset: Intel® H510 Chipset
Expansion Slots:
1x PCIe x16 slot (From CPU);
Support up to PCIe 4.0 for 11th Gen Intel® CPU;
Support up to PCIe 3.0 for 10th Gen Intel® CPU;
2x PCIe 3.0 x1 slots (From PCH)
Storage: 4x SATA 6Gb/s ports (From H510 Chipset)
Memory type:
2x DDR4 memory slots, support up to 64GB1;
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR);
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR);
Supports Dual-Channel mode;
Supports non-ECC, un-buffered memory;
Supports Intel® Extreme Memory Profile (XMP)
I/O:
VGA;
HDMI;
USB 3.2 Gen 1 5Gbps Type-A;
Mouse / Keyboard;
LAN port;
Audio connector;
USB 2.0;
USB 2.0
Connectors:
1x 24-pin ATX main power connector;
1x 8-pin ATX 12V power connector;
4x SATA 6Gb/s connectors;
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports);
1x USB 2.0 connector (support additional 2 USB ports);
1x 4-pin CPU fan connector;
1x 4-pin system fan connector;
1x Front panel audio connector;
2x System panel connectors;
1x Serial port connector;
1x Chassis Intrusion connector;
1x Clear CMOS jumper;
1x TPM module connector
Audio:
Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
LAN: 1x Realtek® RTL8111 Gigabit LAN controller
Form Factor:
mATX Form Factor;
9.3 x 7.5 in. (23.6 cm x 19.0 cm)
OS: Support for Windows® 10 64-bit
