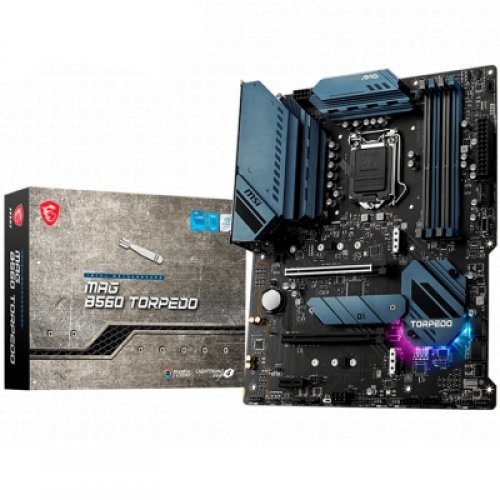

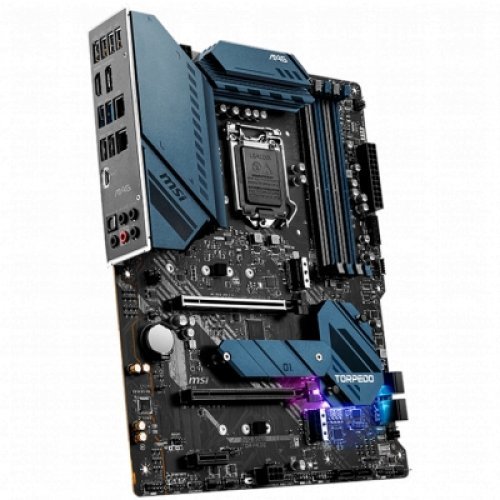

Дънна платка MSI MAG B560 TORPEDO MAG_B560_TORPEDO

Продуктов код: 59074
Дънна платка MSI
Дънна платка MSI MAG B560 TORPEDO MAG_B560_TORPEDO Дънна платка MSI MAG B560 TORPEDO MAG_B560_TORPEDO
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
MAG B560 TORPEDO
Партиден номер:
MAG_B560_TORPEDO
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel B560
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1200
Form Factor:
ATX
Видео изходи:
DisplayPort, HDMI
Wi-Fi свързаност:
Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI MAG B560 TORPEDO

Main Board Desktop - Processor
Chipset Intel B560
Supports Central Processor Unit Intel 10th Gen Processors
Intel 11th Gen Processors
CPU Socket Standard Socket 1200
CPU Maximum Quantity Supports 1
Main Board Desktop - Memory
Memory Type DDR4 SDRAM
Memory Form Factor DIMM 288-pin
Memory Speed 2133MHz(PC4-17000)
2666MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity 128 GB
Memory Slot Total Quantity 4
Provides Error Checking Method non-ECC
Memory Features Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Controller
Integrated Storage Controller:
SATA III-600 (6)
Storage Controller:
PCI Express 3.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated yes
Device Location Integrated
Audio Chipset Realtek ALC897
Audio Output Mode 7.1 Channel Surround
Compliant Audio Standards High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated yes
LAN Chipset Realtek RTL8125B
WLAN M.2
Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps
LAN Architecture Integrated: Gigabit Ethernet/Fast Ethernet/Ethernet (Intel i219V)
Slot Provided
PCI Express 4.0 x16 2
PCI Express 3.0 x1 1
Interface Provided
DisplayPort 1
HDMI 1 (HDMI (Type A))
LAN 2 (RJ-45)
Audio Interface 5 (3.5-mm minijack)
S/PDIF-out Optical 1 (TOSLINK)
USB 3.2 Gen 2 x2 1 (USB 3.2 (type C))
USB 3.2 Gen 1 4 (USB 3.2 (type A))
USB 2.0 4 (USB 2.0 (type A))
Main Board Desktop - Mainboard Features
Power Connectors Type 24+8+4 pin
Mainboard Features AMD 2-Way CrossFire Technology
Main Board Desktop - Software
Supported Operating System Windows 10
Miscellaneous
Cable Included 2 x SATA Data Cables
Included Accessories Quick Start Guide
Screws
Driver CD
Main Board Desktop - Dimensions&Weight
Form Factor ATX
Height (mm) 244 mm
Width (mm) 305 mm
Warranty
Warranty Products Returnable Yes
Warranty Validation Criteria Serial Number
Logistic
Pack Weight Brutto (kg) 1 kg
Pack Weight Netto (kg) 1 kg
Pieces in pack 1
Box Weight Brutto (kg) 1 kg
Retail Packaging Net Weight Carton 0.1 kg
Retail Packaging Net Weight Plastic 0.1 kg
Packs in Box 1
Package Type Box
EAN Code 4719072802912
