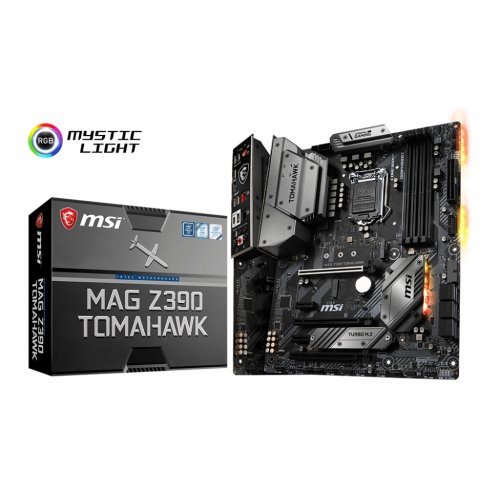

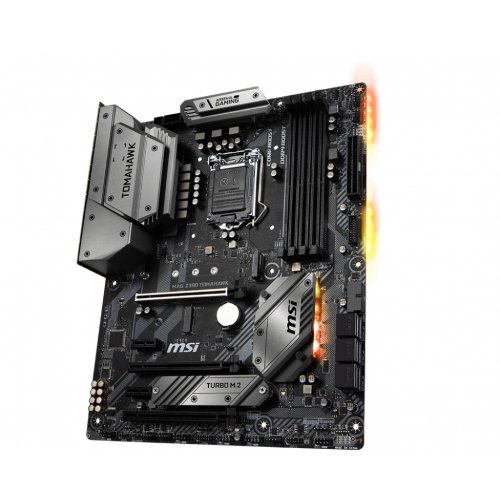

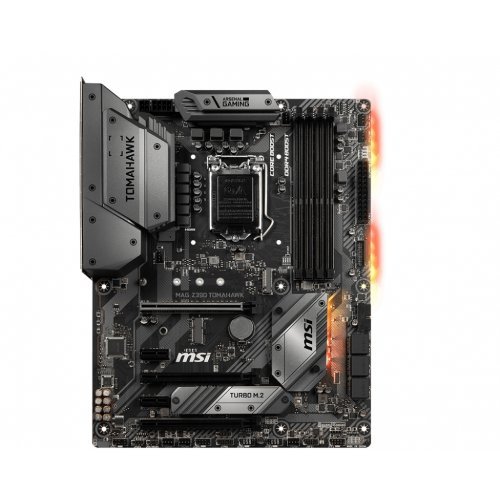

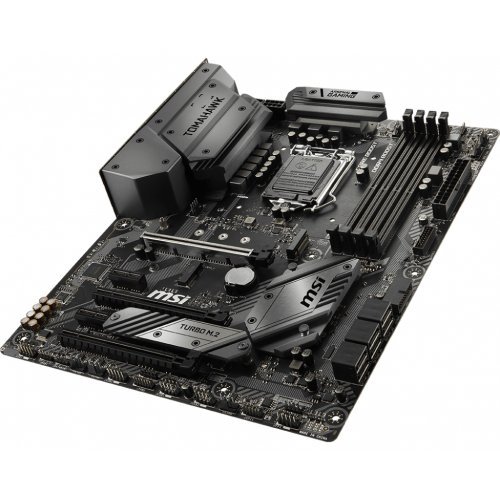

Дънна платка MSI MAG Z390 Tomahawk

PROCESSOR

Supports Intel^® Core™ 9000 Series family/ 8th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel^® Z390 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
• Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

SLOTS

• 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
• 2 x PCIe 3.0 x1 slots
• 1 x M.2 slot (Key E) for an Intel^® CNVi wireless module only

ONBOARD GRAPHICS

• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
• 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

MULTI-GPU

• Supports 2-Way AMD^® CrossFire™ Technology

STORAGE

Intel^® Z390 Chipset

• 6x SATA 6Gb/s ports*¹
• 2x M.2 slots (Key M)*¹
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
  • Intel^® Optane™ Memory Ready

1. M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.
2. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® Z390 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

AUDIO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel^® I219-V Gigabit LAN controller
• 1 x Intel^® I211-AT Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 5 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x TPM module connector
• 2 x 4-pin RGB LED connectors
• 1 x 3-pin RAINBOW LED connector

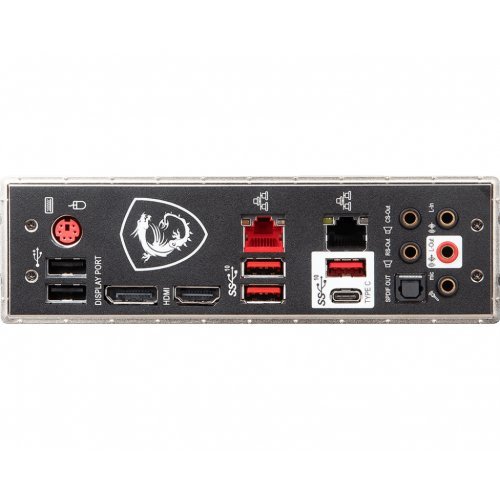

BACK PANEL PORTS

DIMENSIONS

• 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows^® 10 64-bit

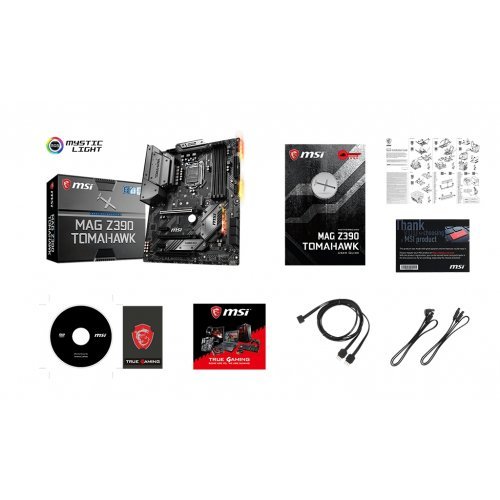

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
