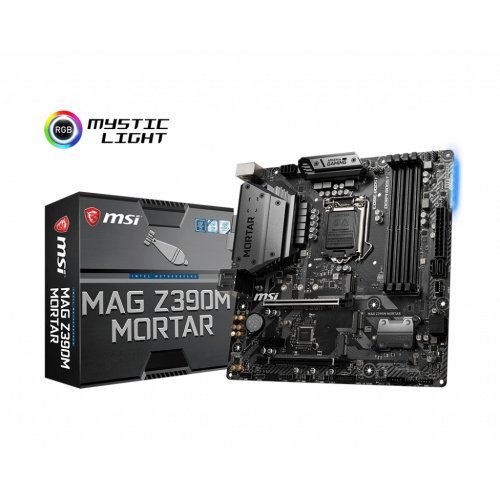

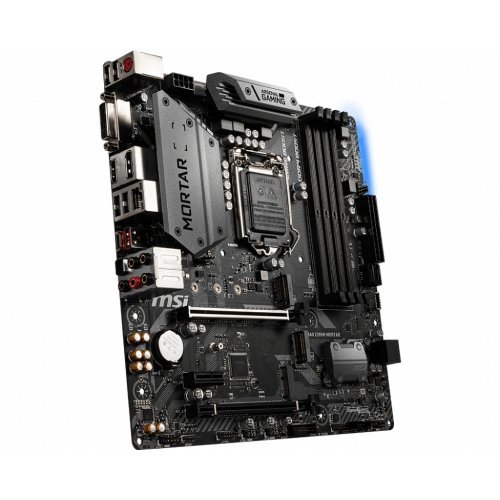

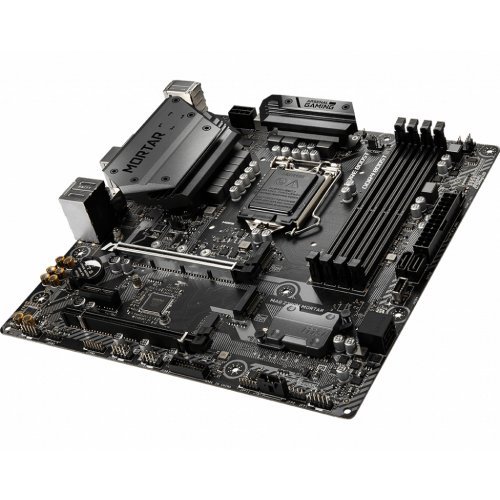

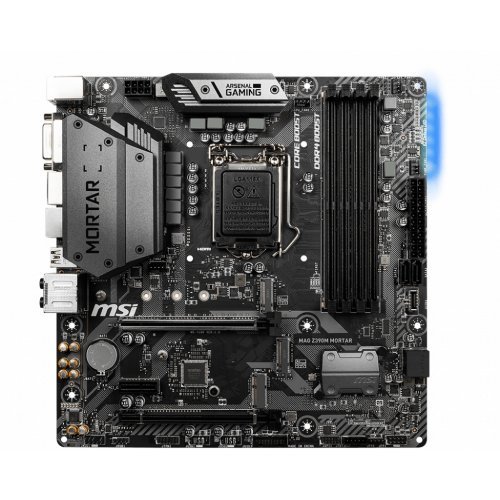

Дънна платка MSI MAG Z390M MORTAR MAG_Z390M_MORTAR

Processor

Supports 9th/ 8th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® Z390 Chipset

Memory

• 4 x DDR4 memory slots, support up to 128GB
• Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Slots

• 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
• 1 x PCIe 3.0 x1 slots
• 1 x M.2 slot (Key E) for an Intel^® CNVi wireless module only

Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
• 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”

Multi-GPU

• Supports 2-Way AMD^® CrossFire™ Technology

Storage

Intel^® Z390 Chipset

• 4 x SATA 6Gb/s ports
• 2 x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices¹
  • M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
  • Intel^® Optane™ Memory Ready¹

1. SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.
2. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® Z390 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

*No Display support when using the Processor model with suffix “F”

USB

Audio

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel^® I219-V Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen2 Type-C port
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 2 x 4-pin RGB LED connectors
• 1 x Thunderbolt add-on card connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

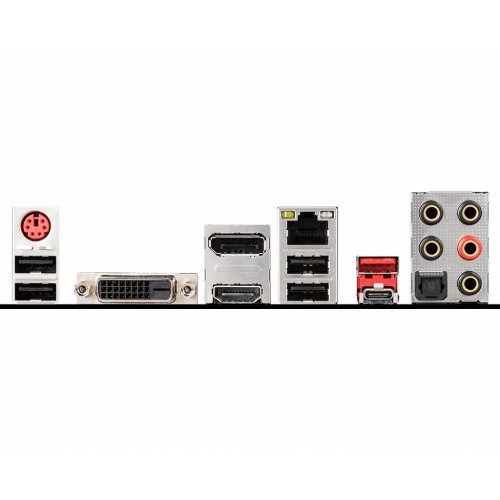

Back panel ports

Dimensions

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
• Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

• Support for Windows^® 10 64-bit

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
