Дънна платка MSI MEG X570 GODLIKE 911-7C34-002

Продуктов код: 39954
Дънна платка MSI
Дънна платка MSI MEG X570 GODLIKE 911-7C34-002 Дънна платка MSI MEG X570 GODLIKE 911-7C34-002 Дънна платка MSI MEG X570 GODLIKE 911-7C34-002 Дънна платка MSI MEG X570 GODLIKE 911-7C34-002 Дънна платка MSI MEG X570 GODLIKE 911-7C34-002
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
MEG X570 GODLIKE
Партиден номер:
911-7C34-002
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD X570
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
E-ATX
Видео изходи:
не поддържа самостоятелно вградено видео
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI MEG X570 GODLIKE

Flagship 14+4+1 phases IR digital VRM and brand-new infinity design, symbolizes the unlimited performance and power. Outshine the competition with Mystic Light Infinity II, Dynamic Dashboard, Triple Lightning M.2 with Shield Frozr, XTREME Audio DAC and Killer xTend with 2.5G LAN plus WIFI 6 solution

  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Mystic Light Infinity II: Customize and set up your own color scheme with MSI Mystic Light, combining exclusive mirror reflection to generate the special endless light effects, the GODLIKE makes your system come alive and infinity.
  • Dynamic Dashboard: Built-in dynamic panel that indicates the status of GODLIKE and shows off your own personality.
  • Lightning Fast Game experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
  • Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
  • Extended Heat-pipe Design: Enlarge the surface of heat dissipation, connecting from VRM heatsink to chipset heatsink.
  • Xtreme Audio DAC: Isolated audio with ESS DAC, 2x audio processors & Nahimic to deliver the breathtaking sound quality with 384kHz/32-bit
  • Killer xTend: Combine a built-in-switch with wireless extender. Dual Killer fueled LAN & WIFI 6 extender with ultimate traffic prioritization.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation



Спецификаци:

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® X570 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

Expansion Slots

  • 3x PCIe 4.0/3.0 x16 slot (PCI_E1~3)1
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8/x0/x0 mode
  • 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode)
  1. The speeds may vary for different devices

Multi-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 4-Way AMD® CrossFire™ Technology

Storage

AMD® X570 Chipset

  • 4x SATA 6Gb/s ports (SATA1-SATA4)
  • 3x M.2 slots (Key M)1
    • M2_1 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices
    • M2_3 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/ 2260/ 2280/ 22110 storage devices

ASMedia ASM1061

  • 2x SATA 6Gb/s ports (SATA5, SATA6)
  1. The speeds may vary for different devices

RAID

AMD® X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

  • 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors)
  • 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors
  • 4x USB 2.0 (High-speed USB) ports through the internal USB connectors

AMD® Processor

  • 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

2x Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

ESS® E9018 Codec

  • Supports 6.3mm Gold-plated stereo headphone out

LAN

  • 1x Killer™ E2600 Gigabit LAN Controller
  • 1x Killer™ E3000 2.5 Gbps LAN Controller

WiFi & Bluetooth

Killer™ Wi-Fi 6 AX1650 Chipset

  • The Wireless module is pre-install in the M2_4 (Key-E) slot
  • Supports Wi-Fi 802.11 a/b/g/n/ac/ax, dual band (2.4GHz, 5GHz) up to 2.4 Gbps speed
  • Supports Bluetooth® 5

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 7x 4-pin system fan connectors
  • 1x 3-pin Water Flow connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 2-pin Thermal Sensors connectors
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR LED connector

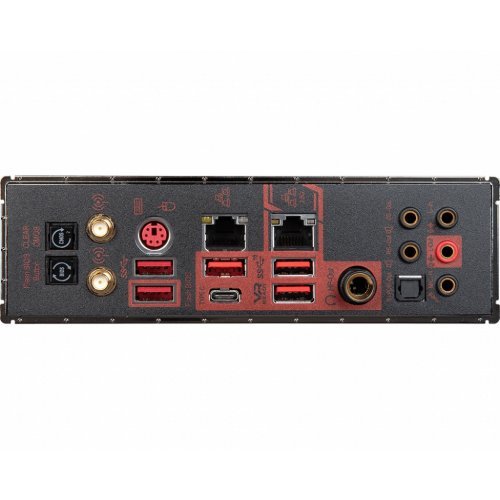

Back panel ports

  1. Clear CMOS Button
  2. Wi-Fi /Bluetooth Antenna Connectors
  3. PS/2 GAMING Device Port
  4. Killer 2.5G + Killer Gigabit LAN
  5. HD Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen1 Ports
  8. USB 3.2 Gen2 Ports Type-A+C
  9. USB 3.2 Gen2 Ports
  10. 6.3mm headphone
  11. Optical S/PDIF-Out
MEG X570 GODLIKE

Dimensions

  • 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
  • E-ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit

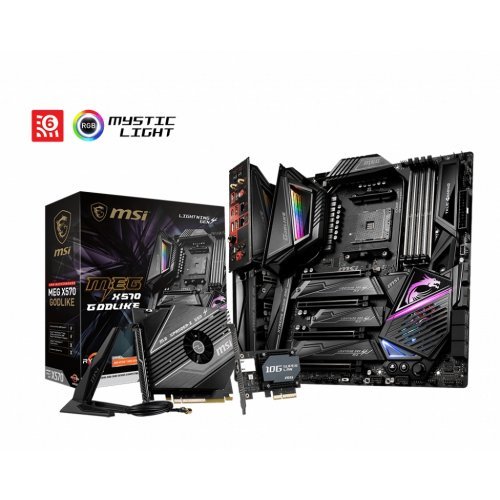

Box content

MSI MEG X570 GODLIKE box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.



https://www.msi.com/Motherboard/MEG-X570-GODLIKE/Overview
