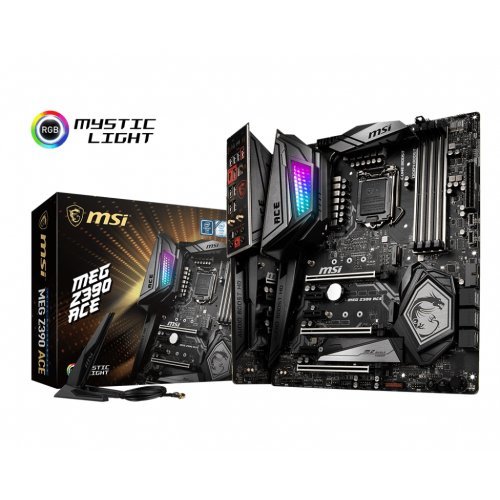

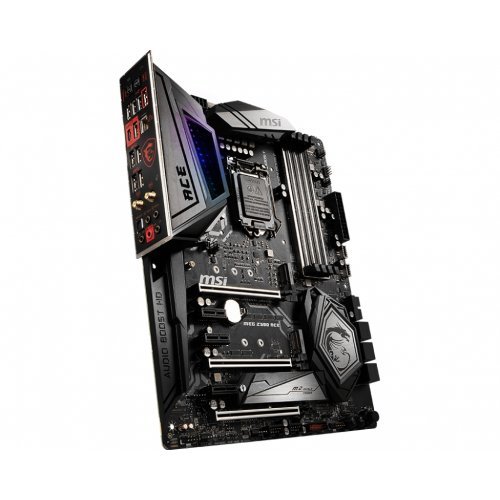

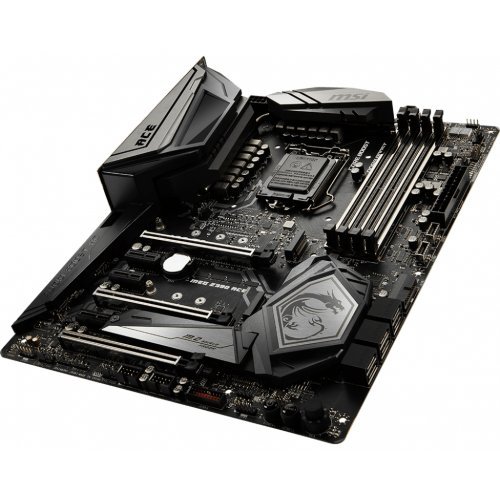

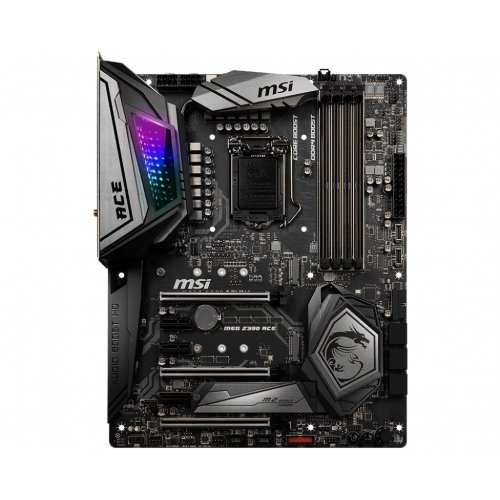

Дънна платка MSI MEG Z390 ACE

Продуктов код: 30901
Дънна платка MSI
Дънна платка MSI MEG Z390 ACE Дънна платка MSI MEG Z390 ACE Дънна платка MSI MEG Z390 ACE Дънна платка MSI MEG Z390 ACE Дънна платка MSI MEG Z390 ACE Дънна платка MSI MEG Z390 ACE
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
MEG Z390 ACE
Партиден номер:
-
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z390
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
не поддържа самостоятелно вградено видео
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI MEG Z390 ACE

Processor

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

Chipset

Intel® Z390 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Slots

  • 3 x PCIe 3.0 x16 slots
    • Support x16/ x0/ x0, x8/ x8/ x0, x8/ x4/ x4 modes
  • 3 x PCIe 3.0 x1 slots

Multi-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

Wirsless LAN & Bluetooth®

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, 5

Storage

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 3 x M.2 slot (Key M)1
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready2
  1. M.2 slots and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

  • 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (4 Type-A ports on the back panel, 2 Type-C internal connectors)
  • 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

ASMedia® ASM1042 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors

ASMedia® ASM3142 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A, 1x Type-C) on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x KillerTM E2500 Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 6 x SATA 6Gb/s connectors
  • 3 x M.2 slots
  • 2 x USB 3.1 Gen2 Type-C ports
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 5 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 2 x 4-pin RGB LED connectors
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 3-pin CORSAIR LED connector

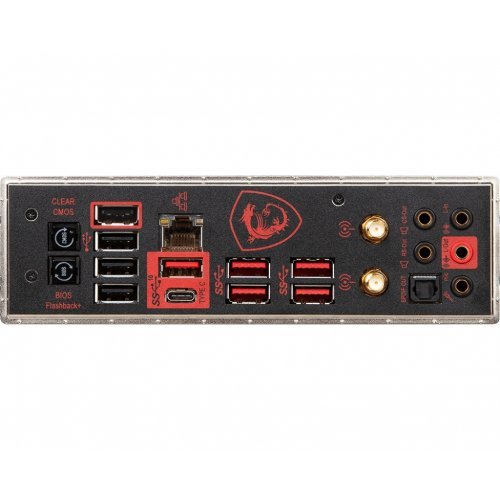

Back panel ports

  1. Clear CMOS Button
  2. USB 2.0 Ports
  3. Killer™ E2500 Gigabit LAN
  4. Wi-Fi /Bluetooth Antenna Connectors
  5. HD Audio Connectors
  6. BIOS FLASHBACK+ Button
  7. USB 3.1 Gen2 Ports Type A+C
  8. USB 3.1 Gen2 Ports
  9. USB 3.1 Gen2 Ports
  10. Optical S/PDIF-Out
MSI MEG Z390 ACE back panel ports

Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit

Box content

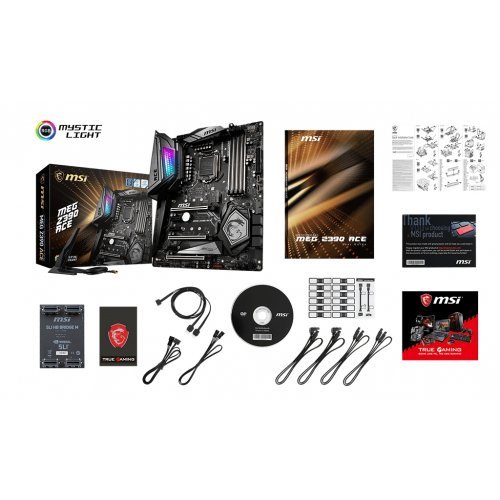

MSI MEG Z390 ACE box content
