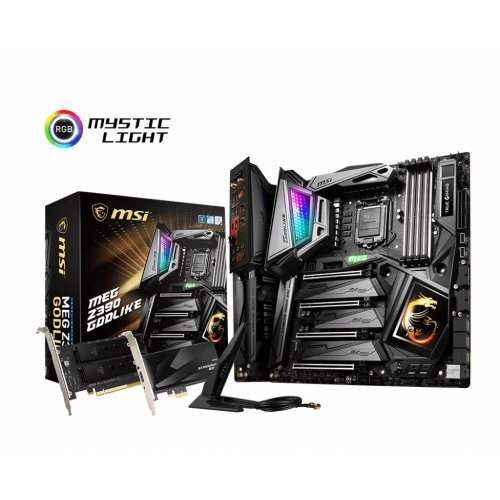

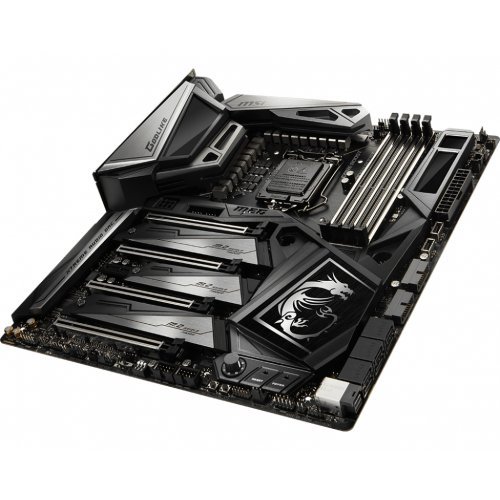

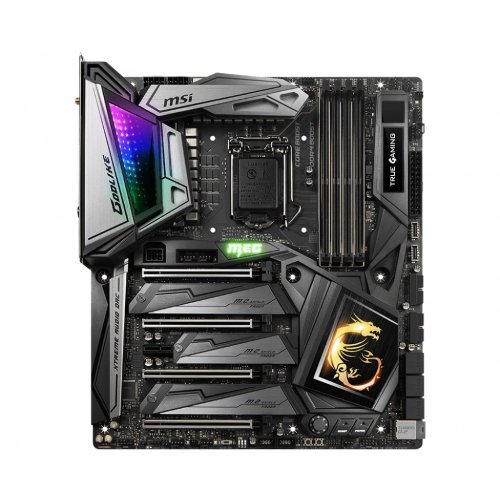

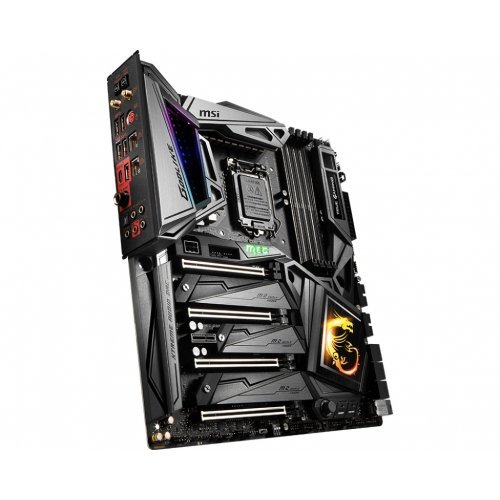

Дънна платка MSI MEG Z390 Godlike

Продуктов код: 31131
Дънна платка MSI
Дънна платка MSI MEG Z390 Godlike Дънна платка MSI MEG Z390 Godlike Дънна платка MSI MEG Z390 Godlike Дънна платка MSI MEG Z390 Godlike Дънна платка MSI MEG Z390 Godlike
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
MEG Z390 Godlike
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z390
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
не поддържа самостоятелно вградено видео
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI MEG Z390 Godlike

Overwhelming 18 phases VRM and brand-new infinity design, symbolizes the unlimited performance and power. Features Mystic Light Infinity, Dynamic Dashboard, Triple Turbo M.2 with Shield Frozr, XTREME Audio DAC and Dual Front USB 3.1 Gen2 Type-C connectors

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
  • Dynamic Dashboard: Built-in dynamic panel that indicates the status of GODLIKE and shows off your own personality.
  • Lightning Fast Game Experience: 1x Turbo U.2, 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
  • Xtreme Audio DAC: Isolated audio with ESS DAC, 2x audio processors & Nahimic to deliver the breathtaking sound quality with 384kHz/32-bit
  • Killer xTend: Combine a built-in-switch with wireless extender. Killer fueled LAN & WIFI extender with ultimate traffic prioritization.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation



PROCESSOR

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel® Z390 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz1
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to Compatibility for more information on compatible memory

SLOTS

  • 4 x PCIe 3.0 x16 slots1
  • 1 x PCIe 3.0 x1 slot
  1. Please refer to page 31 for details

MULTI-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 4-Way AMD CrossFire™ Technology

STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 3 x M.2 slots (Key M)1
    • M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
  • 1 x U.2 port2
    • Supports PCIe 3.0 x4 NVMe storage
  1. M.2_2 slot, U.2 port and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

  • 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 2 Type-C internal connectors)
  • 4 x USB 2.0 (High-speed USB) ports through the internal USB connectors

ASMedia® ASM1042 Chipset

  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

ASMedia® ASM1074 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors

AUDIO

2 x Realtek® ALC1220 Codecs

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

ESS® E9018 Codec

  • Supports 6.3mm Gold-plated stereo headphone out

LAN

  • 2 x KillerTM E2500 Gigabit LAN controller

WIRELESS

Killer™ 1550 Chipset

  • The Wireless module is pre-install in the M2_4 (Key-E) slot
  • Supports Wi-Fi 5, 2x2, Dual Band, (2.4GHz, 5GHz) up to 1.73 Gbps speed.
  • Supports Bluetooth® 5

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x 6-pin ATX PCIe power connector
  • 6 x SATA 6Gb/s connectors
  • 3 x M.2 slots (M-Key)
  • 1 x U.2 port
  • 2 x USB 3.1 Gen2 Type-C ports
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 8 x 4-pin system fan connectors
  • 1 x 3-pin Water Flow connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 2 x 2-pin Thermal Sensors connectors
  • 1 x 4-pin RGB LED connector
  • 2 x 3-pin RAINBOW LED connectors
  • 1 x 3-pin CORSAIR LED connector

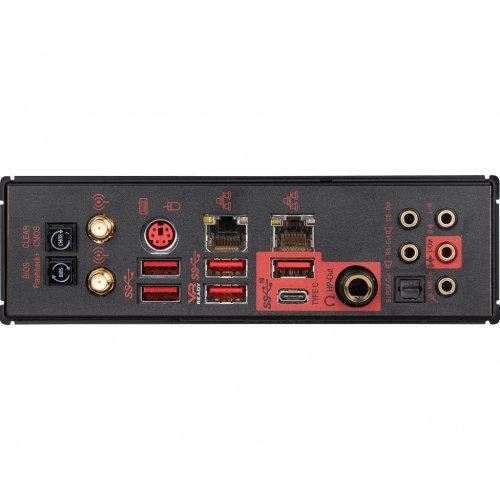

BACK PANEL PORTS

  1. Clear CMOS Button
  2. Wi-Fi /Bluetooth Antenna Connectors
  3. PS/2 GAMING Device Port
  4. Double Killer™ E2500 Gigabit LAN
  5. HD Audio Connectors
  6. BIOS FLASHBACK+ Button
  7. USB 3.1 Gen1 Ports
  8. USB 3.1 Gen2 Ports
  9. USB 3.1 Gen2 Ports Type-A+C
  10. 6.3mm headphone
  11. Optical S/PDIF-Out
MSI MEG Z390 GODLIKE back panel ports

DIMENSIONS

  • 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
  • E-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MSI MEG Z390 GODLIKE box content

CONNECTIONS

  1. Clear CMOS Button
  2. Wi-Fi /Bluetooth Antenna Connectors
  3. PS/2 GAMING Device Port
  4. Double Killer™ E2500 Gigabit LAN
  5. HD Audio Connectors
  6. BIOS FLASHBACK+ Button
  7. USB 3.1 Gen1 Ports
  8. USB 3.1 Gen2 Ports
  9. USB 3.1 Gen2 Ports Type-A+C
  10. 6.3mm headphone
  11. Optical S/PDIF-Out
MEG Z390 GODLIKE back IO
