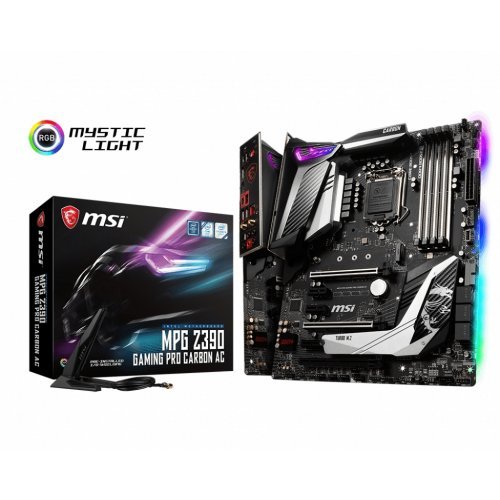

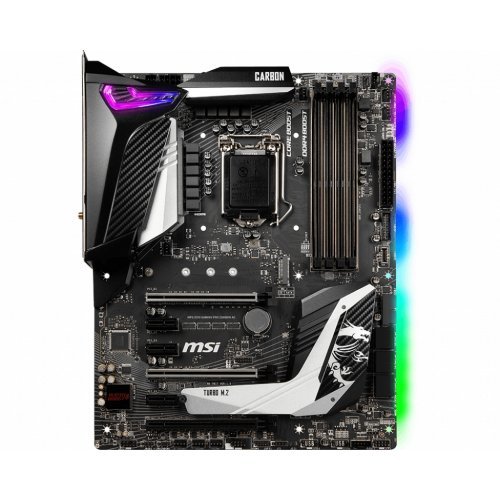

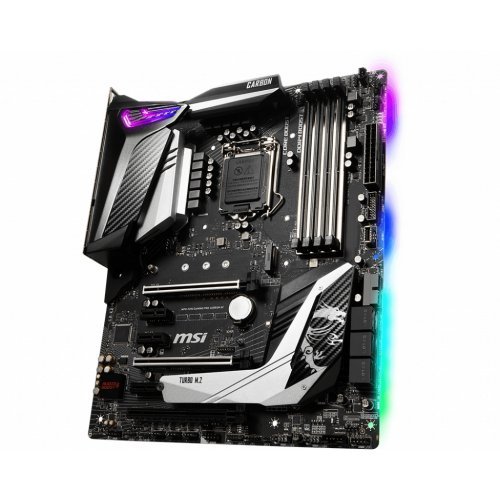

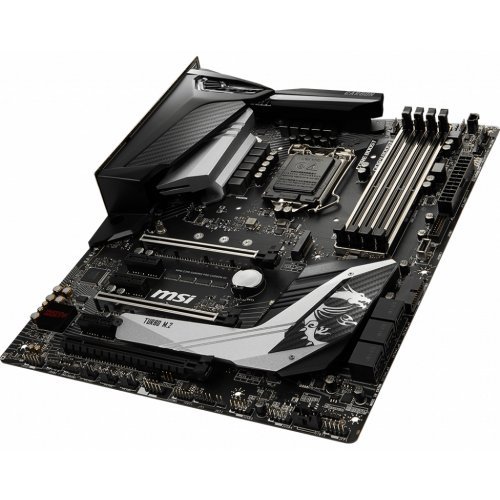

Дънна платка MSI MPG Z390 GAMING PRO CARBON AC

Processor

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

See supported processors

Chipset

Intel^® Z390 Chipset

Memory

• 4 x DDR4 memory slots, support up to 128GB
  • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Slots

• 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
• 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”

Multi-GPU

• Supports 2-Way NVIDIA^® SLI™ Technology
• Supports 3-Way AMD^® CrossFire™ Technology

Storage

Intel^® Z390 Chipset

• 6 x SATA 6Gb/s ports¹
• 2 x M.2 slot (Key M)¹
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • Intel^® Optane™ Memory Ready²

1. M.2 slots and SATA ports share the bandwidth.
2. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® Z390 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB

Audio

Realtek^® ALC1220P-VB2 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel^® I219-V Gigabit LAN controller

WIFI & BLUETOOTH

Intel^® Wireless-AC 9560

• Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
• Supports Bluetooth^® 2.1, 2.1+EDR, 3.0, 4.0, 5

Internal connectors

• 1 x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 1x USB 3.1 Gen2 Type-C port
• 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump connector
• 5x 4-pin system fan connectors
• 1x Serial port connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Thunderbolt Add-on Card Connector
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 2x 4-pin RGB LED connectors
• 1x 3-pin RAINBOW LED connector
• 1x 3-pin CORSAIR LED connector

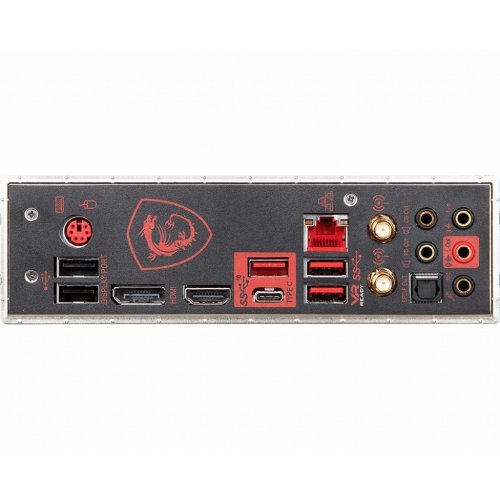

Back panel ports

Dimensions

• 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

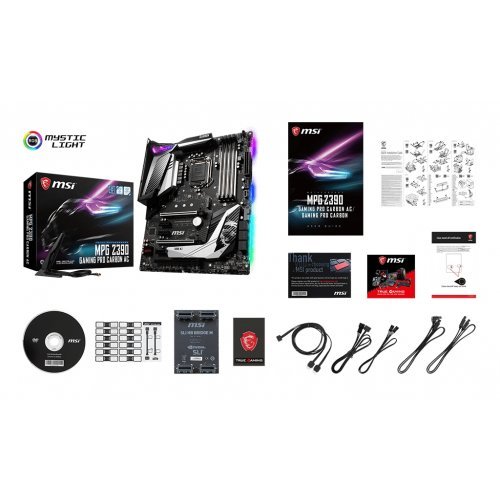

Box content
