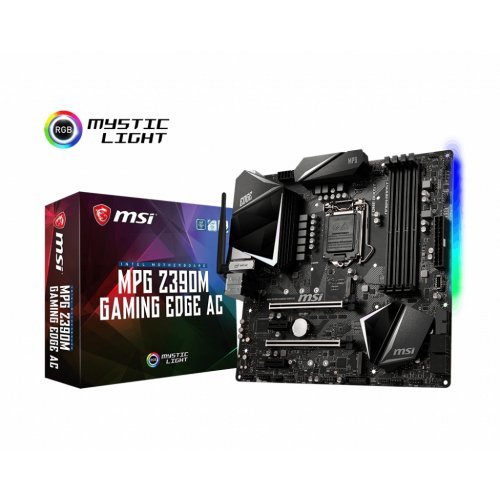

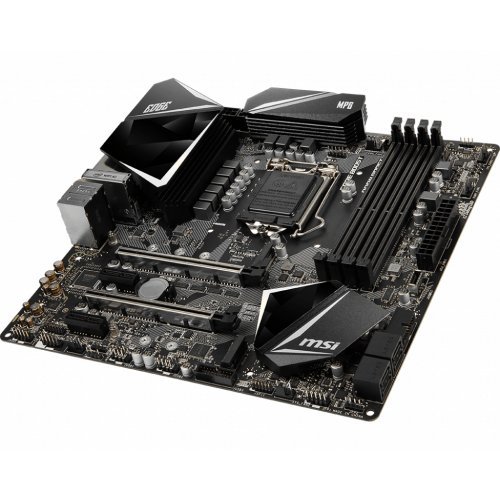

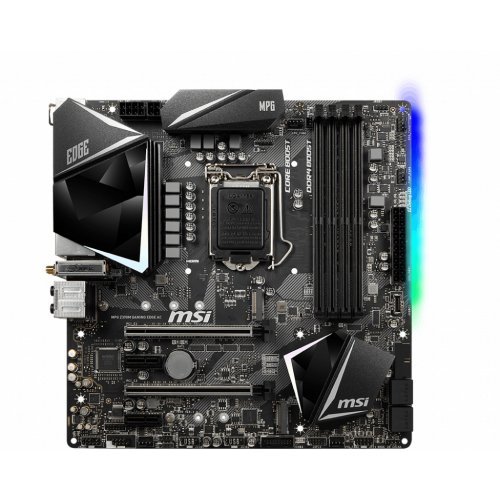

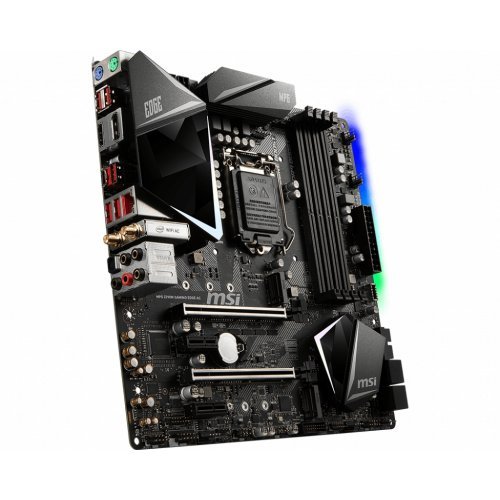

Дънна платка MSI MPG Z390M GAMING EDGE AC

Продуктов код: 31176
Дънна платка MSI
Дънна платка MSI MPG Z390M GAMING EDGE AC Дънна платка MSI MPG Z390M GAMING EDGE AC Дънна платка MSI MPG Z390M GAMING EDGE AC Дънна платка MSI MPG Z390M GAMING EDGE AC Дънна платка MSI MPG Z390M GAMING EDGE AC Дънна платка MSI MPG Z390M GAMING EDGE AC
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
MPG Z390M GAMING EDGE AC
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z390
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
mATX
Видео изходи:
DisplayPort, HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI MPG Z390M GAMING EDGE AC

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4500(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free: Extended Heatsink Design, Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.



Processor

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

Chipset

Intel® Z390 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Slots

  • 2 x PCIe 3.0 x16 slots
    • Support x16/ x0, x8/ x8 modes
  • 2 x PCIe 3.0 x1 slots

Onboard Graphics

  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
  • 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz

Multi-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 2-Way AMD® CrossFire™ Technology

Storage

Intel® Z390 Chipset

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 slot (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready1
  1. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A and 1 Type-C ports on the back panel, 1 Type-C internal connector)
  • 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
  • 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 3.1 connectors)

Audio

Realtek® ALC1220P-VB2 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

WiFi & Bluetooth

Intel® Wireless-AC 9560

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0,4.0, 5

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 slots
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 3 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial Port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 4-pin RGB LED connectors
  • 2 x 3-pin RAINBOW LED connectors

Back panel ports

  1. Mouse
  2. DisplayPort
  3. LAN
  4. HD Audio Connectors
  5. Keyboard
  6. USB 3.1 Gen1
  7. HDMI
  8. USB 3.1 Gen2 Type-A + C
  9. USB 3.1 Gen1
  10. Wireless / Bluetooth
  11. Optical S/PDIF out


Dimensions

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

Support for Windows® 10 64-bit
