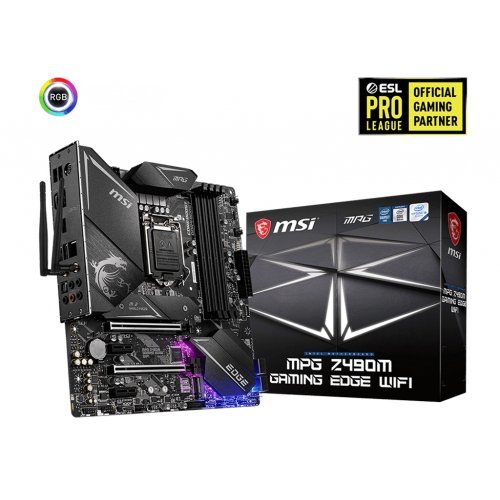

Дънна платка MSI MPG Z490 GAMING EDGE WIFI 911-7C79-004

Manufacturer : MSI

Subcategory

PartNo1 MPG Z490 GAMING EDGE WIFI

PartNo2 911-7C79-004

Search String

MSI MPG Z490 GAMING EDGE WIFI
Product ID: 63094
Mnfr. Part#: MPG Z490 GAMING EDGE WIFI

• Graphics: 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz; 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz; Maximum shared memory is 1GB

• CPU`s supported: Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

• Chipset: Intel® Z490 Chipset

• Expansion Slots: 2x PCIe 3.0 x16 slots*, support x16/ x0 or x8/ x8 mode; 2x PCIe 3.0 x1 slots

• Storage: Intel® Z490 Chipset; 4x SATA 6Gb/s ports 1; 2x M.2 slots (Key M); Supports up to PCIe 3.0 x4 and SATA 6Gb/s; M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1; M2_2 slot supports 2242/ 2260 /2280 storage devices2; Intel® Optane™ Memory Ready*** 3

• Memory type: 4x DDR4 memory slots, support up to 128GB1; Supports 1R 2133/2666/2933 MHz*; 1DPC 1R Max speed up to 4800+ MHz; 1DPC 2R Max speed up to 4266+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

• I/O: PS/2 Combo Port; DisplayPort; USB 3.2 Gen 2 10Gbps (Type-A); LAN Port; HD Audio Connectors; USB 2.0; HDMI Port; USB 3.2 Gen 2 10Gbps (Type-C); USB 3.2 Gen 1 5Gbps (Type-A); Wi-Fi / Bluetooth; Optical S/PDIF OUT

• Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x Serial port connector; 1xTPM module connector; 1x Clear CMOS jumper

• Audio: Realtek® ALC1220 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

• LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller

• Form Factor: 321.5mm x 217.5mm x 17.9-20.8mm

• OS: Support for Windows® 10 64-bit

• Other: Intel® AX201; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi 6 Pre-Certified; Supports Bluetooth® 5.1 , FIPS, FISMA; The Wireless module is pre-install in the M2 (Key-E) slot

https://www.msi.com/Motherboard/MPG-Z490M-GAMING-EDGE-WIFI/Specification
MSI MPG Z490 GAMING EDGE WIFI
