MSI

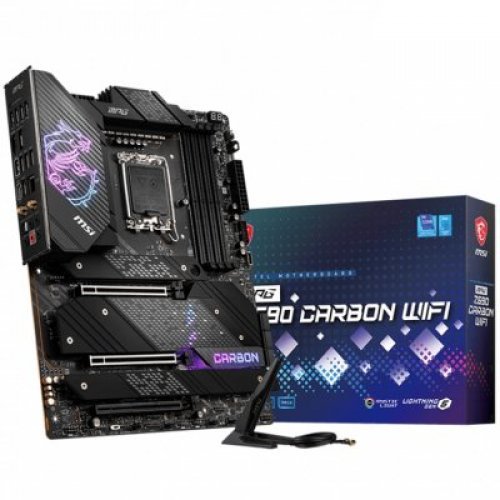

Дънна платка MSI MPG Z690 CARBON WIFI, LGA 1700, Intel Z690, 4x DDR5, ATX Wi-Fi

Дънна платка MSI MPG Z690 CARBON WIFI, LGA 1700, Intel Z690, 4x DDR5, ATX Wi-Fi

Name: Дънна платка MSI MPG Z690 CARBON WIFI, LGA 1700, Intel Z690, 4x DDR5, ATX Wi-Fi
Brand: MSI
SKU: MPG Z690 CARBON WIFI
Availability: OutOfStock

Продуктов код: 60842

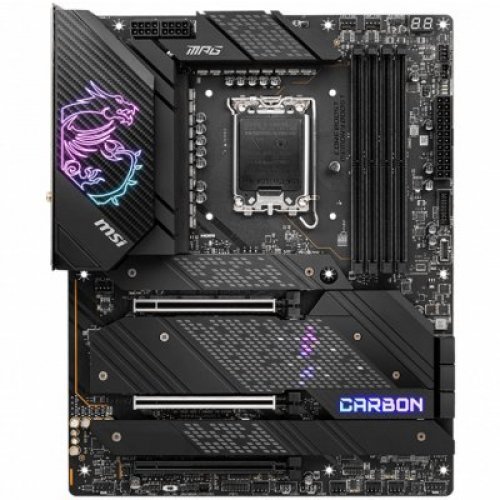

Дънна платка MSI MPG Z690 CARBON WIFI MPG_Z690_CARBON_WIFI (снимка 1)

Дънна платка MSI MPG Z690 CARBON WIFI MPG_Z690_CARBON_WIFI

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

MSI

Модел:

MPG Z690 CARBON WIFI

Партиден номер:

MPG_Z690_CARBON_WIFI

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel Z690

Брой слотове за памет:

RAM - поколение:

DDR5

Socket:

Intel LGA1700

Form Factor:

ATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

MSI MPG Z690 CARBON WIFI

Main Board Desktop - Processor
Chipset	Intel Z690
Supports Central Processor Unit	Intel 12th Gen Processors
CPU Socket Standard	Socket 1700
CPU Maximum Quantity Supports	1
Main Board Desktop - Memory
Memory Type	DDR5 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	4800MHz(PC5-38400)
Maximum Installable System Memory Storage Capacity	128 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	non-ECC
Memory Features	Unbuffered Dual Rank Single Rank XMP 3.0
Controller
Integrated	Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Storage Controller: ASMedia ASM1061 Supports: Level 0, Level 1, Level 10 SATA III-600 (2) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 5 x M.2 (Key M)
Plug-in-card	Wi-Fi Controller: Intel Wi-Fi 6E AX210 1 x M.2 (Key E)
Main Board Desktop - Audio Output
Audio Integrated	yes
Device Location	Integrated
Audio Chipset	Realtek ALC4080
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated	yes
LAN Chipset	Intel i225-V
Wi-Fi	IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6
Bluetooth	Bluetooth 5.2
Data Link Protocol Supports	2.5 Gbps
Slot Provided
PCI Express 5.0 x16	2
PCI Express 3.0 x4	1

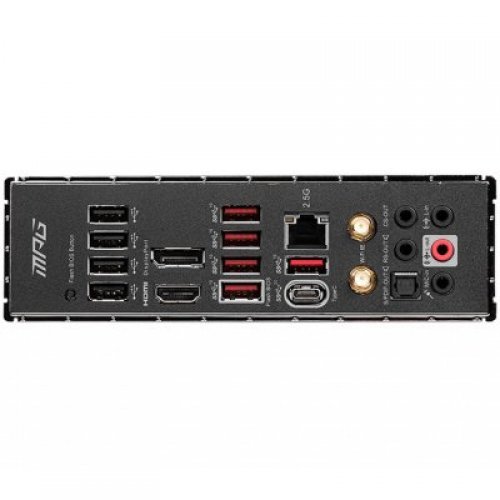

Interface Provided
USB 2.0	4 (USB 2.0 (type A))
DisplayPort	1
HDMI	1 (HDMI (Type A))
USB 3.2 Gen 2	5 (USB 3.2 (type A))
USB 3.2 Gen 2 x2	1 (USB 3.2 (type C))
LAN	1 (RJ-45)
Antenna	2
Audio Interface	5 (3.5-mm minijack)
S/PDIF-out Optical	1
Main Board Desktop - Mainboard Features
Power Connectors Type	24+8 pin
Mainboard Features	AMD CrossFire technology Intel Optane Memory Ready RGB Mystic Light Intel Smart Response Technology Support
Main Board Desktop - Software
Supported Operating System	Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Miscellaneous
Cable Included	2 x SATA 6Gb/s Cables
Included Accessories	Stickers User Guide Quick Start Guide Screws WiFi antenna Brush
Main Board Desktop - Dimensions&Weight
Form Factor	ATX
Height (mm)	244 mm
Width (mm)	305 mm
Warranty
Warranty Products Returnable	Yes
Warranty Validation Criteria	Serial Number
Logistic
Pack Weight Brutto (kg)	2 kg
Pack Weight Netto (kg)	2 kg
Pieces in pack	1
Box Weight Brutto (kg)	2 kg
Retail Packaging Net Weight Carton	0.5 kg
Retail Packaging Net Weight Plastic	0.5 kg
Packs in Box	1
Package Type	Box
EAN Code	4719072886530
