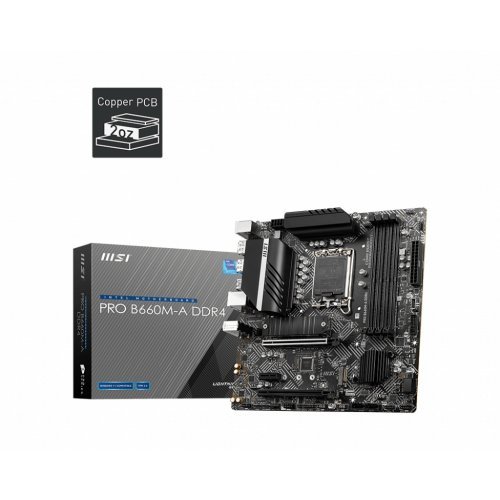

MSI PRO B660M-A DDR4
Характеристики
Graphics:
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2;
2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2
CPU's supported:
Supports 12th Gen Intel® Core™ Processors;
Processor socket LGA1700
Chipset: Intel® B660 Chipset
Expansion Slots:
2x PCIe x16 slots;
PCI_E1 (From CPU);
Support PCIe 4.0 x16;
PCI_E3 (From B660 chipset);
Support PCIe 3.0 x4;
1x PCIe 3.0 x1 slot (Fom B660 chipset)
Storage:
4x SATA 6Gb/s ports (From B660 chipset);
2x M.2 slots (Key M);
M2_1 slot (From CPU);
Supports up to PCIe 4.0 x4;
Supports 2242/ 2260/ 2280 storage devices;
M2_2 slot (From B660 chipset);
Supports up to PCIe 4.0 x4;
Supports up to SATA 6Gb/s;
Supports 2242/ 2260/ 2280 storage devices;
Supports Intel® Optane™ Memory;
Support Intel® Smart Response Technology for Intel Core™ processors
Memory type:
4x DDR4 memory slots, support up to 128GB 1;
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR);
Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz;
1DPC 2R Max speed up to 4000+ MHz;
2DPC 1R Max speed up to 4000+ MHz;
2DPC 2R Max speed up to 3600+ MHz;
Supports Dual-Channel mode;
Supports non-ECC, un-buffered memoryy;
Supports Intel® Extreme Memory Profile (XMP)
I/O:
Keyboard / Mouse;
DisplayPort;
USB 3.2 Gen 1 5Gbps Type-A;
LAN port;
Audio connector;
USB 2.0;
HDMI;
USB 3.2 Gen 2 10Gbps Type-A
Connectors:
1x 24-pin ATX main power connector;
1x 8-pin ATX 12V power connector;
1x 4-pin ATX 12V power connector;
4x SATA 6Gb/s connectors;
2x M.2 slots (M-Key);
1x USB 3.2 Gen 1 5Gbps Type-C port;
1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports);
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports);
1x 4-pin CPU fan connector;
1x 4-pin water-pump fan connector;
2x 4-pin system fan connectors;
1x Front panel audio connector;
2x System panel connectors;
1x Chassis Intrusion connector;
1x TPM module connector;
1x Clear CMOS jumper;
1x TBT connector (supports RTD3);
1x Serial port;
1x Tuning Controller connector
Audio:
Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
LAN: 1x Realtek® RTL8125BG 2.5Gbps LAN controller
Form Factor:
Micro-ATX Form Factor;
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
