CPU
• Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
|
|
Chipset
• AMD® X370 Chipset
|
|
Main Memory
• 4 x DDR4 memory slots, support up to 64GB - Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz * • Dual channel memory architecture • Supports non-ECC UDIMM memory • Supports ECC UDIMM memory (non-ECC mode) * 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz. Please refer www.msi.com for more information on compatible memory
|
|
Slots
• 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4) - RYZEN series processors support x16/x0, x8/x8 mode - 7th Gen A-series/ Athlon™ processors support x8/x0 mode • 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode) • 3 x PCIe 2.0 x1 slots * PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
|
|
Multi-GPU
• RYZEN series processor - Supports 2-Way NVIDIA® SLI™ Technology - Supports 3-Way AMD® CrossFire™ Technology • 7th Gen A-series/ Athlon™ processor - Supports 2-Way AMD® CrossFire™ Technology
|
|
Storage
• AMD® X370 Chipset • 6 x SATA 6Gb/s ports* • 2 x M.2 ports (Key M) - M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices - M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices • 1 x U.2 port - Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) NVMe storage * Maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs or 2x M.2 SATA SSDs + 4x SATA HDDs.
RAID
• AMD® X370 Chipset • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
|
|
USB
• ASMedia® ASM2142 Chipset - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• AMD® X370 Chipset - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector - 6 x USB3.1 Gen1(SuperSpeed USB) ports (2 ports on the back panel, 4ports available through the internal USB connectors) - 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• AMD® CPU - 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|
|
Audio
• Realtek® ALC1220 Codec - 7.1-Channel High Definition Audio - Supports S/PDIF output
|
|
Wirsless LAN & Bluetooth®
• Killer™ Wireless-AC 1535 module - Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed. - Supports Bluetooth® 4.1
|
|
LAN
• 1 x Killer™ E2500 Gigabit LAN controller
|
|
Internal I/O Connectors
- 1 x 24-pin ATX 12V power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) - 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) - 1 x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port) - 1 x 4-pin CPU fan connector - 1 x 4-pin PUMP fan connector (supports up to 2A) - 4 x 4-pin system fan connectors - 1 x RGB LED connector - 1 x TPM module connector - 1 x Front panel audio connector - 2 x System panel connectors - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Flash BIOS button - 1 x Clear CMOS jumper - 1 x 2-Digit Debug Code LED
|
|

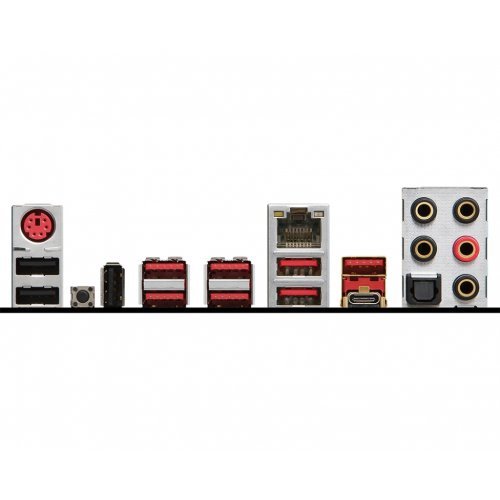

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port - 1 x Clear CMOS button - 3 x USB 2.0 Type-A ports - 1 x LAN (RJ45) port - 6 x USB 3.1 Gen1 Type-A ports - 1 x USB 3.1 Gen2 Type-A port - 1 x USB 3.1 Gen2 Type-C port - 5 x OFC audio jacks - 1 x Optical S/PDIF OUT connector
|
|
Dimension
• 12 in. x 9.6 in. (30.4 cm x 24.3 cm) • ATX Form Factor
|
|
Mounting
• 9 mounting holes
|
