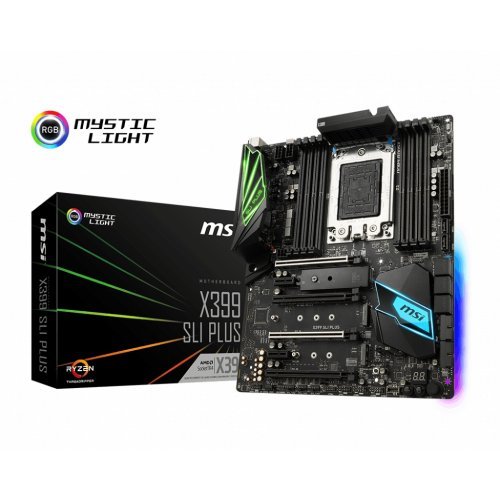

Дънна платка MSI X399 SLI PLUS 911-7B09-014

Продуктов код: 41539
Дънна платка MSI
Дънна платка MSI X399 SLI PLUS 911-7B09-014 Дънна платка MSI X399 SLI PLUS 911-7B09-014 Дънна платка MSI X399 SLI PLUS 911-7B09-014 Дънна платка MSI X399 SLI PLUS 911-7B09-014 Дънна платка MSI X399 SLI PLUS 911-7B09-014
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
X399 SLI PLUS
Партиден номер:
911-7B09-014
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Server/Workstation
Чипсет:
AMD X399
Брой слотове за памет:
8
RAM - поколение:
DDR4
Socket:
AMD TR4
Form Factor:
ATX
Видео изходи:
не поддържа самостоятелно вградено видео

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI X399 SLI PLUS

  • Supports AMD® RYZEN™ THREADRIPPER™ Series Processors
  • Support 8 DIMMs, Quad Channel DDR4 3600+ (OC)
  • DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
  • AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience
  • Mystic Light and Mystic Light Sync: Personalize your PC with 16.8 million colors / 17 effects controlled in one click with the Mystic Light APP or a mobile device.
  • Professional IO cover & heatsink: Stunning looks, protecting the I/O ports
  • EZ Debug LED: Easiest way to troubleshoot
  • Lightning Fast Game experience: 3 x Turbo M.2 , 1 x M.2 Shield, and Lightning USB 3.1 Gen2
  • Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI
  • X-Boost: Great tool to boost your USB & Storage performance
  • Double ESD Protection: Double layer grounding motherboard mounting holes
  • Military Class 6, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness



Спецификации:

Processor

Supports 1st and 2nd Gen AMD® RYZEN™ THREADRIPPER™ Series Processors for SocketTR4

See supported processors

Chipset

AMD® X399 Chipset

Memory

  • 8 x DDR4 memory slots, support up to 128GB
  • Quad channel memory architecture1
  • Supports DDR4 3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2800(OC)/ 2667(nonOC-by SPD)/2667(OC)/ 2400/ 2133 MHz2
  • Supports ECC UDIMM memory
  1. Please refer the DIMM Slots section for more details.
  2. For the latest information about memory, please visit http://www.msi.com

See supported memory

Slots

  • 2x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
  • 2x PCIe 3.0 x8 slots (PCIE_3, PCIE_6)
  • 2x PCIE 2.0 x1 Slots

Multi-GPU

  • Supports 4-Way NVIDIA® SLI™ Technology
  • Supports 4-Way AMD® CrossFire™ Technology

Storage

AMD® X399 Chipset

  • 8 x SATA 6Gb/s ports

AMD® RYZEN THREADRIPPER Series Processors

  • 3 x M.2 ports (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices
    • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

RAID

AMD® X399 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

ASMedia® ASM3142 Chipset

  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

AMD® X399 Chipset

  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

  • 8 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Intel® I211 Gigabit LAN controllers

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connector
  • 1 x 6-pin ATX 12V power connector1
  • 8 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 4 x 4-pin system fan connectors
  • 2 x Front panel connectors
  • 1 x Front panel audio connector
  • 2 x RGB LED connector
  • 1 x TPM module connector
  • 1 x LED demo connector
  • 1 x Rest Button
  • 1 x Power Button
  • 1 x OC Button
  • 1 x Chassis Intrusion connector
  • 1 x clear CMOS header
  1. Provides additional power to PCIe x16 slots

Back panel ports

  1. Clear CMOS
  2. PS/2 Combo Port
  3. USB 3.1 Gen 1
  4. LAN Port
  5. HD Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0 Port
  8. LIGHTNING USB 3.1 Gen2 Type A+C
  9. Optical S/PDIF-Out
MSI X399 SLI PLUS creation back panel ports

Dimensions

  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit

Box content

MSI MEG X399 SLI PLUS CREATION box content



  1. All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.



https://www.msi.com/Motherboard/X399-SLI-PLUS
