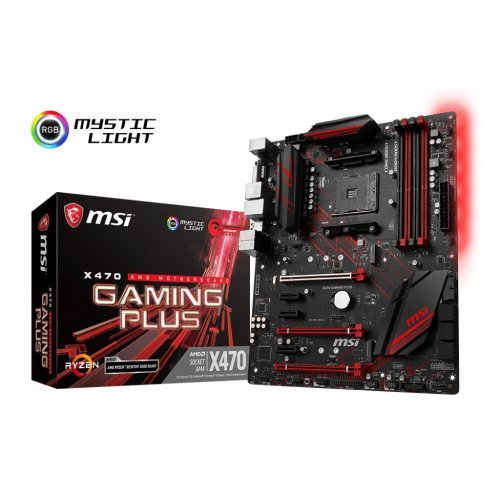

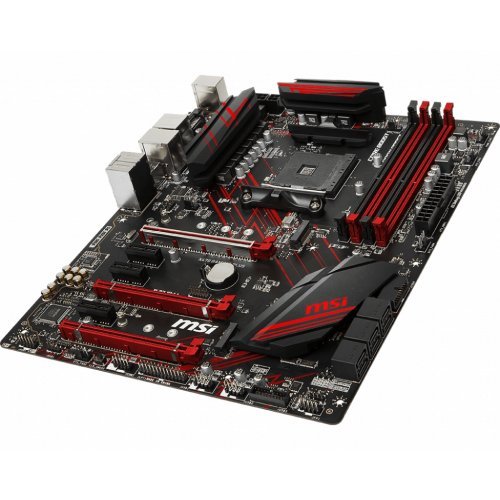

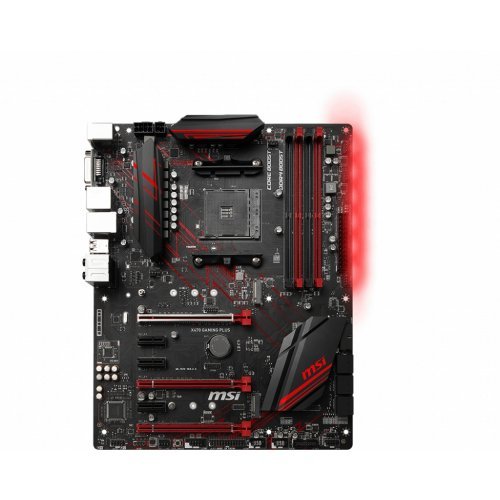

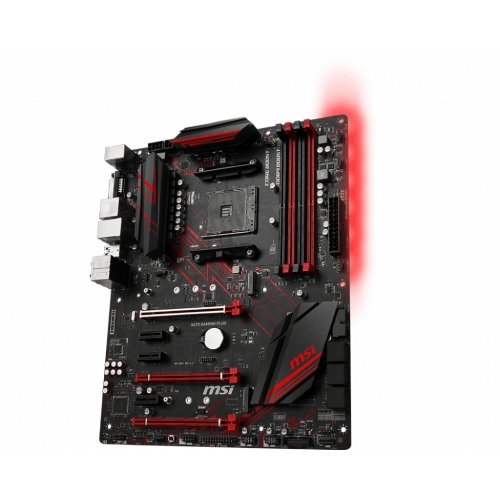

MSI X470 GAMING PLUS, s. AM4

Processor

Supports AMD^® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

See supported processors

Chipset

AMD^® X470 Chipset

Memory

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE¹
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory

1. A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

Slots

• 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
  • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/ Athlon™ X4 processors support x8/x0 mode
  • AMD^® Athlon™ with Radeon™ Vega Graphics processors support x4/x0 modes
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)¹
• 3 x PCIe 2.0 x1 slots

1. PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

Multi-GPU

• Ryzen™ Desktop Processors
  • Supports 3-Way AMD^® CrossFire™ Technology
• Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  • Supports 2-Way AMD^® CrossFire™ Technology

Storage

AMD^® X470 Chipset

• 6 x SATA 6Gb/s ports
• 2 x M.2 ports (Key M)¹
  • M2_1 slot (from AMD^® processor) supports PCIe 3.0 x4 (AMD^® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2(AMD^® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot (from AMD^® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

1. SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
2. PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

AMD^® X470 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz¹
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz¹

1. Only support when using AMD^® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processor
2. Maximum shared memory of 2048 MB

USB

Audio

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Realtek^® 8111H Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin PUMP fan connector (supports up to 2A)
• 4 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 2 x 5050 RGB LED strip 12V connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x Clear CMOS button

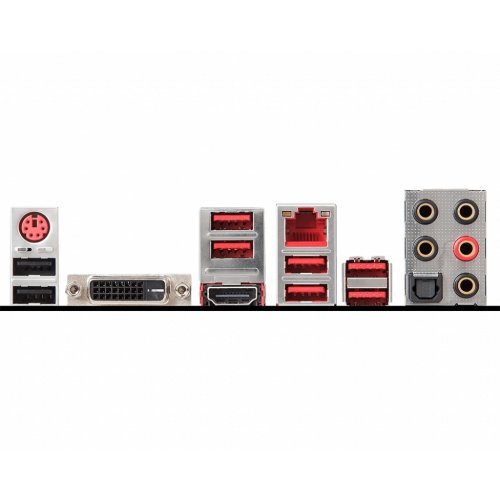

Back panel ports

Dimensions

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

• Support for Windows^® 10 64-bit
• Support for Windows^® 7 64-bit

Box content
