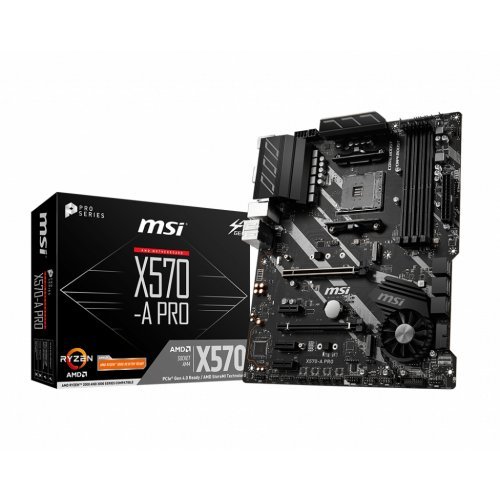

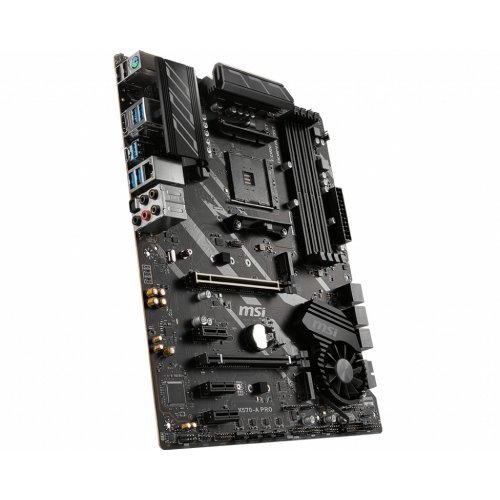

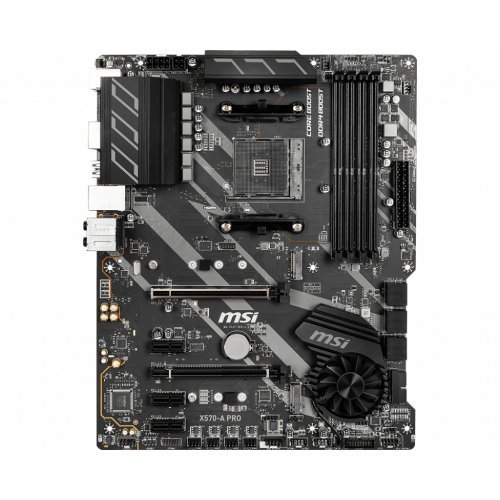

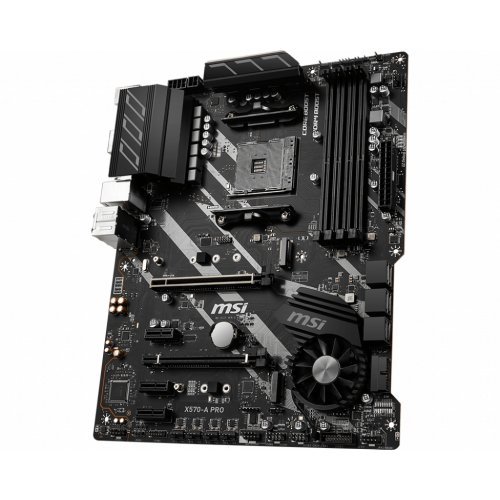

Дънна платка MSI X570-A PRO, s. AM4, AMD X570

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD^® X570 Chipset

Memory

• 4 DDR4 memory slots, support up to 128GB (depending on the processor)¹
  • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Sports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer to Compatibility for more information on compatible memory

Slots

• 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
  • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
• 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
• 3 x PCIe 3.0 x1 slots¹

1. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
2. The speeds may vary for different devices

Onboard Graphics

• 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz¹

1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
2. Maximum shared memory of 2048 MB

Multi-GPU

• Supports 2-Way AMD^® CrossFire™ Technology

Storage

AMD^® X570 Chipset

• 4x SATA 6Gb/s ports(SATA3-SATA6)
• 2 x M.2 slot (Key M)
  • M2_1 slot (from AMD^® Processor)
    • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD^® X570 Chipset)
    • Supports PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061

• 2x SATA 6Gb/s ports (SATA1, SATA2)

RAID

AMD^® X570 Chipset

• Supports RAID 0, RAID 1 and RAID 10

USB

Audio

Realtek^® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

LAN

• 1 x Realtek^® 8111H Gigabit LAN Controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump connector
• 4 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x TPM module connector
• 1 x Serial port connector
• 1 x Clear CMOS jumper
• 1 x Chassis Intrusion connector
• 2 x 4-pin RGB LED connectors
• 2 x 3-pin RAINBOW LED connectors
• 4 x EZ Debug LEDs

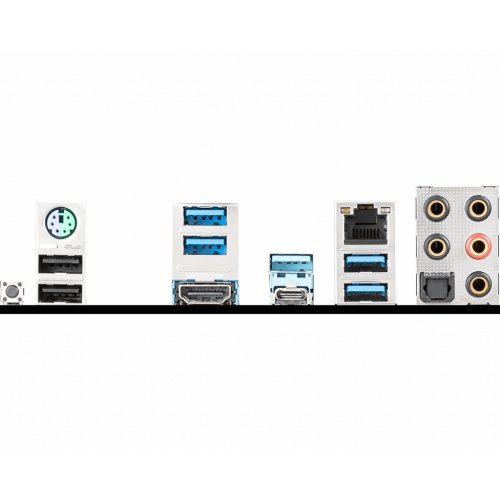

Back panel ports

Dimensions

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

• Support for Windows^® 10 64-bit

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
