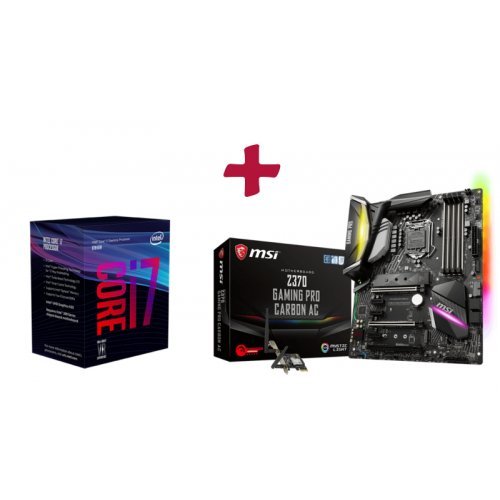

Дънна платка MSI Z370 Gaming Pro Carbon AC + Intel Coffee Lake Core i7-8700

Продуктов код: 25222


Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
-
Модел:
MSI Z370 Gaming Pro Carbon AC + Intel Coffee Lake Core i7-8700
Партиден номер:
-
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z370
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DisplayPort, HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

- MSI Z370 Gaming Pro Carbon AC + Intel Coffee Lake Core i7-8700

MSI Z370 Gaming Pro Carbon AC Specifications:



CPU

• Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1151



Chipset

• Intel® Z370 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.



Slots

• 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots



Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
• 1 x DisplayPort port, supports a maximum resolution of 4096X2304@24Hz, 3840X2160@60Hz,1920X1200@60Hz



Multi-GPU

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology


Storage

• Intel® Z370 Chipset
• 6 x SATA 6Gb/s ports*
• 2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots***

* M.2 and SATA ports maximum support 1x M.2 PCIe SSD + 1x M.2 SATA SSD + 5x SATA HDDs. Please refer to page 34 for M.2 slots with examples of various combination possibilities.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.



RAID

• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 PCIe storage devices*
* M.2 PCIe RAID volume can be created with M.2 GENIE.



USB

• ASMedia® ASM3142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)



Audio

• Dual Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


Wirsless LAN & Bluetooth®

• Intel® Dual Band Wireless-AC 8265 card
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2



LAN

• 1 x Intel I219-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 2 x 5050 RGB LED strip 12V connectors
- 1 x WS2812B Individually Addressable RGB LED strip 5V connector
- 1 x CORSAIR Individually Addressable RGB LED strip 5V connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DisplayPort port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector



Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor



Mounting

• 9 mounting holes



Intel Core i7-7800 Specifications:



General information
Type CPU / Microprocessor
Market segment Desktop
Family

Intel Core i7
Model number

i7-8700

Frequency 3200 MHz
Turbo frequency 4600 MHz (1 core)
4500 MHz (2 cores)
4300 MHz (3 or more cores)
Low power frequency 800 MHz
Bus speed 8 GT/s DMI
Clock multiplier 32
Package 1151-land Flip-Chip Land Grid Array
Socket Socket 1151 / H4 / LGA1151
Size 1.48" x 1.48" / 3.75cm x 3.75cm
Estimated release date September 24, 2017 (announcement)
October 5, 2017 (availability)

S-spec numbers
Part numberProduction processors
  SR3QS
BX80684I78700 +
BXC80684I78700 +
CM8068403358316 +
Architecture / Microarchitecture
Microarchitecture Coffee Lake
Processor core Coffee Lake-S
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 6
The number of threads 12
Floating Point Unit Integrated
Level 1 cache size 6 x 32 KB instruction caches
6 x 32 KB data caches
Level 2 cache size 6 x 256 KB caches
Level 3 cache size 12 MB shared cache
Physical memory 64 GB
Multiprocessing Uniprocessor
Features
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • AVX2 / Advanced Vector Extensions 2.0
  • BMI / BMI1 + BMI2 / Bit Manipulation instructions
  • F16C / 16-bit Floating-Point conversion instructions
  • FMA3 / 3-operand Fused Multiply-Add instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • NX / XD / Execute disable bit
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
  • TXT / Trusted Execution technology
  • TSX / Transactional Synchronization Extensions
  • MPX / Memory Protection Extensions
  • SGX / Software Guard Extensions
Low power features Enhanced SpeedStep technology
Integrated peripherals / components
Display controller 3 displays
Integrated graphics GPU Type: Intel UHD 630
Graphics tier: GT2
Execution units: 24
Base frequency (MHz): 350
Maximum frequency (MHz): 1200
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR4-2666
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 42.7
Other peripherals
  • Direct Media Interface 3.0
  • PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Maximum operating temperature 100°C
Thermal Design Power 65 Watt
Notes on Intel Core i7-8700
  • The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology, Identity Protection technology, OS Guard and Boot Guard.
  • The CPU is compatible with DirectX 12 and OpenGL 4.4 APIs.
  • The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.

Включени продукти:

  Категория Продукт
Дънна платка MSI Z370 Gaming Pro Carbon AC, LGA1151
Процесор Intel Coffee Lake Core i7-8700, LGA1151, 3.20GHz (4.60GHz with Turbo), 12MB L3 Cache, 14nm, 65W, 64 bit, GPU Intel UHD 630, Box
