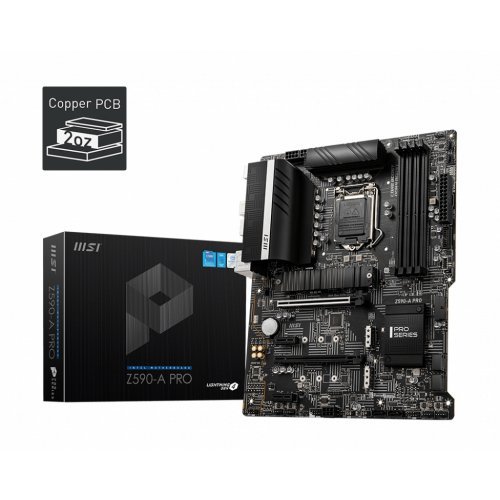

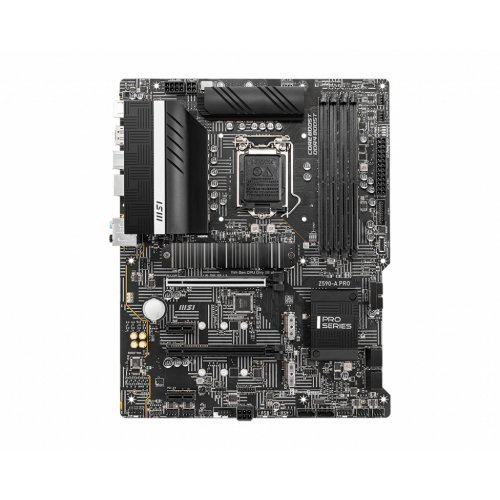

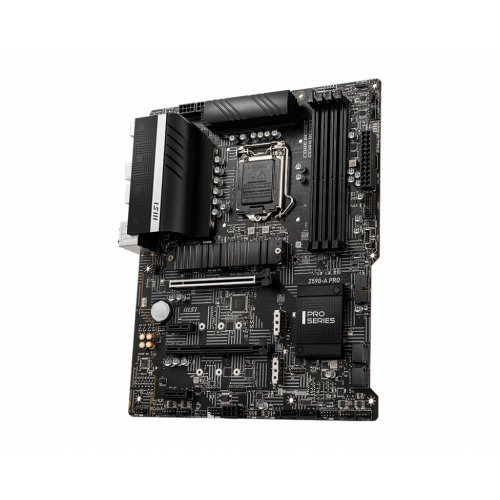

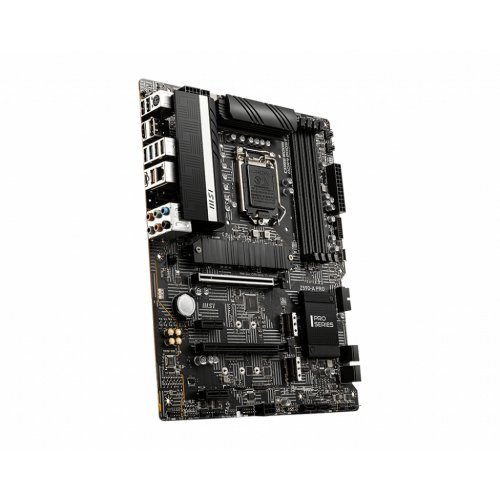

Дънна платка MSI Z590-A PRO 911-7D09-002

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors¹

Processor socket LGA1200

1. Please go to intel.com for compatibility information

See supported processors

Chipset

Intel^® Z590 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB ¹
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)¹
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory

Expansion Slot

• 2x PCIe x16 slots
  • Support x16/ x4
  • PCI_E1 (from CPU)
    • Supports up to PCIe 4.0 for 11th Gen Intel^® CPU
    • Supports up to PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E3 (from Z590 chipset)
    • Supports up to PCIe 3.0
• 2x PCIe 3.0 x1 slots (from Z590 chipset)

Onboard Graphics

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz ¹²
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz ¹²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

Multi-GPU

• Supports 2-Way AMD^® CrossFire^™ Technology

Storage

• 6x SATA 6Gb/s ports (from Z590 chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (from CPU) ¹
    • Available only on 11th Gen Intel^® CPU
    • Supports up to PCIe 4.0x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2¹, M2_3² slots (from Z590 chipset)
    • Support up to PCIe 3.0x4
    • Support up to SATA 6Gb/s
    • Support 2242/ 2260/ 2280 storage devices
    • Intel^® Optane™ Memory Ready ³
• Support Intel^® Smart Response Technology for Intel Core™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Audio

Realtek^®ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I225-V 2.5Gbps LAN controller

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x 6-pin ATX PCIe power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Serial port connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

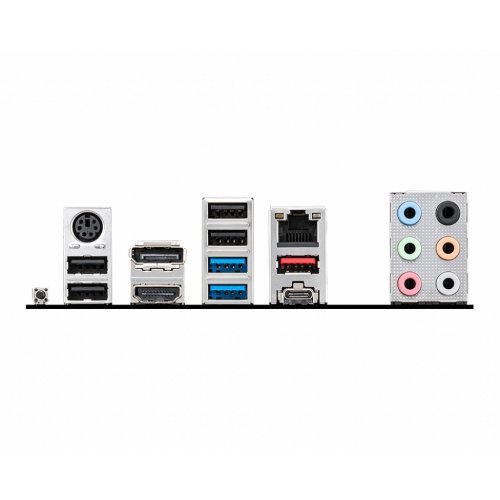

Back panel ports

Dimensions

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

Support for Windows^® 10 64-bit

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
