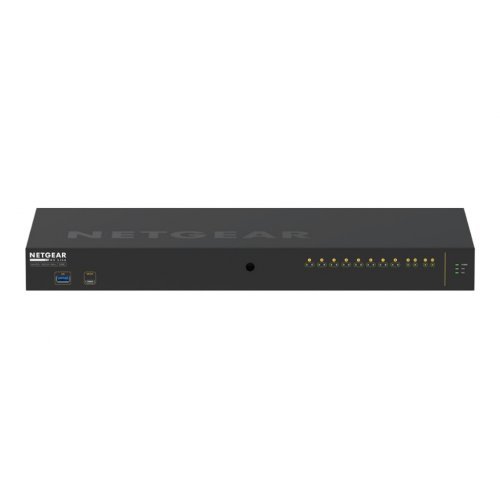

Видео суич NETGEAR 12-Port AV Line M4250-10G2XF-PoE+ 8x1G PoE+ 240W 2x1G 2xSFP+ Managed Switch

Продуктов код: 64731
Видео суич Netgear
Видео суич Netgear M4250-10G2XF GSM4212PX-100EUS Видео суич Netgear M4250-10G2XF GSM4212PX-100EUS
Видео суич Netgear
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Netgear
Модел:
M4250-10G2XF
Партиден номер:
GSM4212PX-100EUS

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Netgear M4250-10G2XF

Производител : NETGEAR
Продуктов номер на производителя : GSM4212PX-100EUS
Продуктов номер: 4031880



 Описание
The NETGEAR M4250 switch series was developed and engineered for audio / video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market. AV codecs generally use 1 Gbps or 10 Gbps per stream and the AV Line of M4250 targets the widespread 1 Gbps codecs. PoE+ and rear-facing ports ensure a clean integration in AV racks. M4250 switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, as well as audio / video / control mixed profiles.
 ключови търговски точки/предимства
  • Dedicated AV web-based GUI interface for more specific AV installations
  • Color-based AV profiles can be applied to the different ports
  • Dante, Q-SYS, AES67 and AVB audio profiles
  • NVX, SVSI, Q-SYS, NDI and Dante video profiles
  • Audio / video / control mixed profiles
  • Automatic switch interconnect with NETGEAR IGMP Plus
  • Common Layer 2 and Layer 3 switching engine
  • Built-in IT web GUI, console, Telnet and SSH
  • 8-port 10 / 100 / 1000 Base-T (RJ-45) PoE+ with 240 W PoE budget
  • 2-port 10 / 100 / 1000 Base-T (RJ-45)
  • 2-port 1000 / 10 GBase-X (SFP+)
  • 60 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ-45 RS232 console ports and USB-A storage port
  • Rack-mounting standard brackets
продукт:
Име на продукта: NETGEAR 12-Port AV Line M4250-10G2XF-PoE+ 8x1G PoE+ 240W 2x1G 2xSFP+ Managed Switch
Описание : NETGEAR AV Line M4250-10G2XF-PoE+ - Switch - L3 - Managed - 10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (240 W)
EAN: 0606449149586

 General
Device Type: Switch - 12 ports - L3 - Managed
Enclosure Type: Side to side airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 240 W
Performance: Switching capacity: 60 Gbps
Firewall throughput (64-byte packet size): 44.64 Mpps
Latency (1 Gbps): < 2.14 µs
Latency (10 Gbps): < 0.84 µs
Capacity: VLANs supported: 4093
ARP entries: 4000
Multicast entries (IPv4): 512
Multicast entries (IPv6): 128
Jumbo frame size: up to 12000
IGMP multicast groups: 2000
MSTP instances: 16
PVST instances: 32
MAC Address Table Size: 16K entries
Routing Protocol: RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol: RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm: SSL 3.0, TLS 1.2
Features: VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG)
Compliant Standards: IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor: X ARM A9: 1.25 GHz
RAM: 2 GB
Flash Memory: 256 MB
 Expansion / Connectivity
Interfaces: 10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+)
2 x 10GBase-X SFP+
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
1 x USB Type A
1 x console (USB) Type C
 Power
Power Device: Internal power supply
Installed Qty: 1
Voltage Required: AC 110 V
Power Consumption Operational: 25 Watt
Power Consumption Stand by: 12.96 Watt
 Miscellaneous
Included Accessories: Mounting brackets, foot pad set, 2 x SFP slot caps
Cables Included: Console cable
USB-C to USB-A cable
Rack Mounting Kit: Included
Compliant Standards: CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014
Localisation: Europe
 Dimensions & Weight
Width: 44 cm
Depth: 20 cm
Height: 4.32 cm
Weight: 2.9 kg


 Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 45 °C
Humidity Range Operating: 90% (non-condensing)
Min Storage Temperature: -20 °C
Max Storage Temperature: 70 °C
Humidity Range Storage: 95% (non-condensing)
