Noctua NH-C14S, 1150/2011/AMD

Продуктов код: 16203
Охлаждане за компютри Noctua
Охлаждане за компютри > Noctua NH-C14S Охлаждане за компютри > Noctua NH-C14S Охлаждане за компютри > Noctua NH-C14S Охлаждане за компютри > Noctua NH-C14S Охлаждане за компютри > Noctua NH-C14S Охлаждане за компютри > Noctua NH-C14S
Охлаждане за компютри Noctua
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Noctua
Модел:
NH-C14S
Партиден номер:
NH-C14S
Гаранция:
72 месеца
Размер на вентилатора:
120 mm
Цена с включен ДДС:
162.52 лв.
Гаранционен срок 72 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

Noctua NH-C14S

Specifications


Successor to the award-winning NH-C14, the NH-C14S is an elite class top-flow CPU cooler that is extremely efficient, highly compatible and remarkably adjustable. Thanks to its deeper fin stack and the renowned NF-A14 PWM fan, the single fan NH-C14S provides similar quiet cooling performance to its dual fan predecessor while being even more versatile: With the fan installed on top of the fins, the cooler is compatible with RAM modules of up to 70mm height. With the fan installed underneath the fins, the total height of the cooler is only 115mm, making it suitable for use in many HTPC cases. At the same time, the new offset layout allows it to clear the top PCIe slot on most µATX and ATX motherboards. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-C14S is a premium quality top-flow solution for the highest demands.



Socket compatibility   Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)



Height (without fan)   115 mm



Width (without fan)   140 mm



Depth (without fan)   163 mm



Height (with fan)   115 / 142 mm



Width (with fan)   140 mm



Depth (with fan)   163 mm



Weight (without fan)   820 g



Weight (with fan)   1015 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Max. TDP   see TDP guide



Fan compatibility   140x140x25mm (with square frame)

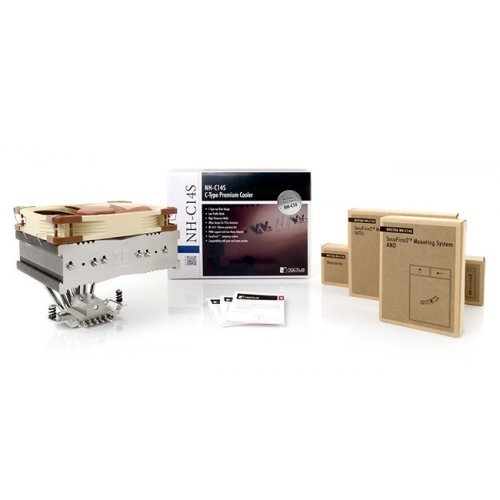

Scope of Delivery
  • 1x NF-A14 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • Fan clips for second fan
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Noctua Metal Case-Badge



Warranty   6 Years





Fan specifications




Model   1x Noctua NF-A14 PWM



Bearing   SSO2



Max. Rotational Speed (+/- 10%)   1500 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)   1200 RPM



Min. Rotational Speed (PWM, +/-20%)   300 RPM



Max. Airflow   140,2 m³/h



Max. Airflow with L.N.A.   115,5 m³/h



Max. Acoustical Noise   24,6 dB(A)



Max. Acoustical Noise with L.N.A.   19,2 dB(A)



Input Power   1,56 W



Voltage Range   12 V



MTBF   > 150.000 h



Details


NH-C14S Features Based on the award-winning NH-C14
Having received more than 200 awards and recommendations from leading international hardware websites and magazines, the NH-C14 has become an established reference for 140mm top-flow coolers. With its deeper fin stack and more efficient NF-A14 PWM fan, the new S-version provides similar performance and further improved compatibility.

NH-C14S Features C-Type top-flow design
The c-type top-flow design of the NH-C14S not only allows for superb quiet cooling performance while maintaining a much lower profile than today’s 140mm tower-style coolers but also ensures excellent airflow over RAM modules and near-socket motherboard components.

NH-C14S Features Low Profile Mode

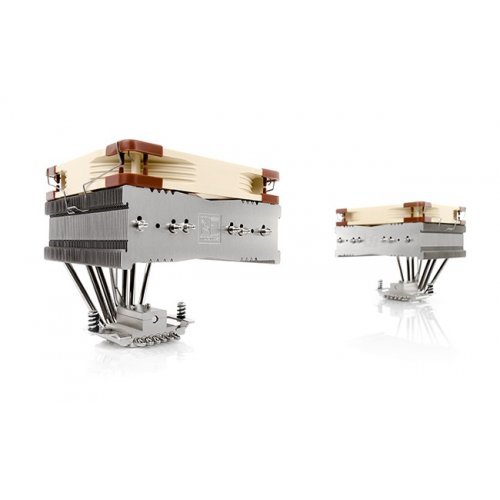

Run with the NF-A14 fan installed underneath the fin stack, the NH-C14S stands only 115mm tall, which is much lower than tower coolers with 140mm or 120mm fans and allows it to fit many desktop style or HTPC cases.

NH-C14S Features High Clearance Mode
Run with the NF-A14 fan installed on top, the NH-C14S provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with heat-spreaders of up to 70mm height.

NH-C14S Features Offset design for PCIe clearance
Compared to the original NH-C14, the layout of the NH-C14S has been offset in two axis. Thanks to this measure, the heatsink will clear the top PCIe slot on most µATX and ATX motherboards when the bendings of the heatpipes face the PCIe slots or the I/O panel.*

NF-A14 NF-A14 140mm premium fan
Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A14 is renowned to be among the best quiet 140mm fans on the market. Combined with the deeper fin stack of the NH-C14S, it allows the cooler to achieve similar performance levels as its dual fan predecessor despite only using a single NF-A14. button

NH-C14S Features PWM support and Low-Noise Adaptor
The NF-A14 premium fan supplied with the NH-C14S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

NH-C14S Features SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3) and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting included with the NH-C14S guarantees perfect contact pressure and maximum convenience on all current sockets.

NH-C14S Features Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the NH-C14S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NF-A14 NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. button

NH-C14S Features 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A14 features an MTBF rating of more than 150.000 hours and the entire NH-C14S package comes with a full 6 years manufacturer’s warranty.

*Please refer to our motherboard compatibility list for detailed information.
