Noctua NH-U14S, 1155/1150/2011/AMD

Продуктов код: 16202
Охлаждане за компютри Noctua
Охлаждане за компютри > Noctua NH-U14S Охлаждане за компютри > Noctua NH-U14S Охлаждане за компютри > Noctua NH-U14S Охлаждане за компютри > Noctua NH-U14S
Охлаждане за компютри Noctua
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Noctua
Модел:
NH-U14S
Партиден номер:
-
Гаранция:
72 месеца
Размер на вентилатора:
120 mm
Цена с включен ДДС:
172.21 лв.
/
88.05 €
Гаранционен срок 72 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

Noctua NH-U14S

The NH-U14S is the 14cm top model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. While the large, six heatpipe design and the NF-A15 140mm fan with PWM support for fully automatic speed control allow the cooler to best the renowned quiet cooling performance of all other U-series coolers, its 52mm slim shape still guarantees full compatibility with tall RAM modules on LGA2011. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U14S is a complete premium quality solution that combines superb performance, high compatibility and quiet operation.






Socket compatibility   Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required)



Height (without fan)   165 mm



Width (without fan)   150 mm



Depth (without fan)   52 mm



Height (with fan)   165 mm



Width (with fan)   150 mm



Depth (with fan)   78 mm



Weight (without fan)   770 g



Weight (with fan)   935 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility   140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

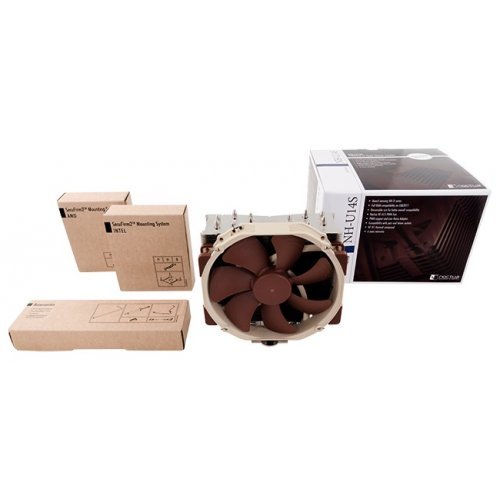

Scope of Delivery
  • NF-A15 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Anti-vibration pads and fan-clips for second NF-A15 (optional)
  • Noctua Metal Case-Badge



Warranty   6 Years





Fan specifications



Model   Noctua NF-A15 PWM



Bearing   SSO2



Max. Rotational Speed (+/- 10%)   1500 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)   1200 RPM



Min. Rotational Speed (PWM)   300 RPM



Max. Airflow   140,2 m³/h



Max. Airflow with L.N.A.   115,5 m³/h



Max. Acoustical Noise   24,6 dB(A)



Max. Acoustical Noise with L.N.A.   19,2 dB(A)



Input Power   1,56 W



Voltage Range   12 V



MTBF   > 150.000 h





NH-U14S Features Award-winning NH-U series
The NH-U14S is the first 140mm model in Noctua’s award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
NH-U14S Features Full RAM compatibility on LGA2011
With its 52mm slim design tailor-made for LGA2011, the NH-U14S will not overhang the RAM slots on this platform, thus guaranteeing full compatibility with tall memory modules. On some LGA115x and AMD motherboards, the front fan may overhang the first RAM slot, so standard height RAM (up to 32mm) should be chosen when using the first slot.
NH-U14S Features Reasonable size for better overall compatibility
Standing 165mm tall, the NH-U14S is short enough to fit most modern high-end cases. Measuring 150mm wide (including fan and fan clips), the NH-U14S provides better compatibility with SLI and CrossFire setups as compared to tower coolers that are wider than 150mm or use fans wider than 150mm.
NF-A15 NF-A15 140mm PWM Fan
The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO standard. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. button
NH-U14S Features PWM support and Low-Noise Adaptor
The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
NH-U14S Features Anti-vibration pads and fan-clips for second NF-A15 (optional)
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*
NH-U14S Features SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3+, AM2+, FM1, FM2), the SecuFirm2™ mounting included with the NH-U14S guarantees perfect contact pressure and maximum convenience on all current sockets.
NH-U14S Features Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the NH-U14S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
NF-A15 NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. button
NH-U14S Features 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTBF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6 years manufacturer’s warranty.
*On LG2011, using the 5mm anti-vibration pads will make the rear fan overhang the RAM slots on the left side of the socket, so please use standard height RAM (<32mm) for this configuration.
