UPS устройство PowerWalker VFI 3000RT LCD, Double-Conversion Online

UPS устройство PowerWalker VFI 3000RT LCD, Double-Conversion Online

Name: UPS устройство PowerWalker VFI 3000RT LCD, Double-Conversion Online
Brand: Powerwalker
SKU: VFI 3000RT LCD
Availability: OutOfStock

Продуктов код: 17756

UPS устройство Powerwalker VFI 3000RT LCD 10120123 (снимка 1)

UPS устройство Powerwalker VFI 3000RT LCD 10120123

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Powerwalker

Модел:

VFI 3000RT LCD

Партиден номер:

10120123

Гаранция:

24 месеца

Тегло (кг.):

29.000

Form Factor:

Rack/Tower convertible

Изходна синусоида:

Pure Sine Wave

Изходна мощност:

2700 W

Пълна мощност- VA:

3000 VA

Технология:

Double Conversion Online

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

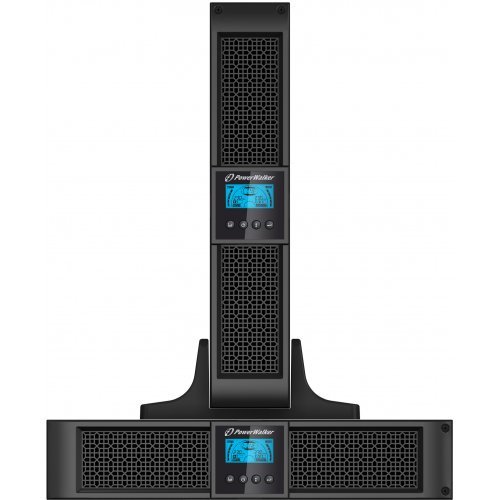

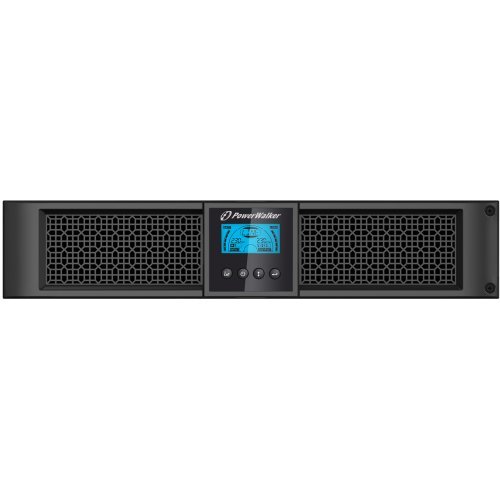

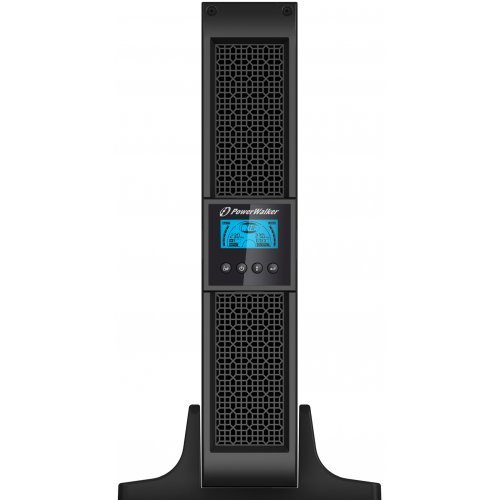

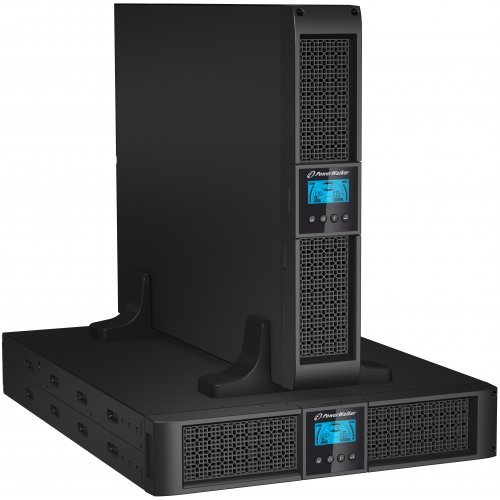

Powerwalker VFI 3000RT LCD

Datasheet

3000VA / 2700W Online UPS with Power Factor 0.9
C20 Input, 8x IEC C13 Outlet, 1x IEC C19 Outlet
Batteries included: 6x 12V/9Ah and external battery connection
Rack/Tower design with swappable LCD direction
On-line technology with Pure Sinewave Output with PF=0.9
Selectable line sensitivity allowing generator support

With true double-conversion online UPS design, PowerWalker VFI 1000-3000 RT provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.

With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.

Technical specification

General features
Type	Online
Power capacity	3000VA / 2700W
Output Power Factor	0.90
Input
Input Voltage Range	120-276 VAC Depends on Load Level
Max THDi	<5%
Input PF	≥ 0.99 at full load
Frequency Range	45Hz - 55Hz or 54Hz - 66Hz
Frequency (Synchronized Range)	45Hz - 55Hz or 54Hz - 66Hz
Output
Nominal Output Voltage	208/220/230/240 VAC
Pure Sine Wave	Yes
THDv	≤2% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Bat. Mod.)	±1%
Frequency (Battery Mode)	±0,2Hz
Technical details
Load Crest Ratio	3:1
Transfer Time [AC to Battery]	0ms
Transfer Time [Inverter to Bypass]	0ms
Transfer Time [Inverter to ECO]	1ms
Transfer Time [ECO to Inverter]	10ms
Bypass	Before UPS Power-on: Default “No” Change to “Yes” via display panel Overload und UPS Failure: Automatically transfer to bypass By Setting: Voltage Rang: 120-276V ± 3%
Generator support	Yes
Overload Capacity	12s @102%-130%; 1.5s @130%-150%; 100ms @ >150%
External Battery Connection	Yes
Charger	1.5A
Fan Logic	Always on, automatic speed control
LCD Indicators	UPS status, Load level, Battery level, Input/Output voltage, AC mode, battery mode, Bypass mode, fault conditions; LCD Display colour : Blue, red, red flashing (depends on UPS status), direction swappable (rack/tower)
Efficiency
LINE mode full Load	92.5%
BATTERY mode full Load	87%
Energy Star compliance	Yes
Batteries and autonomy time

Batteries	6x 12V/9Ah
DC Voltage	6 x 12V
Recharge Time	3h to 90%
Full Load Backup Time	3 min.
Half Load Backup Time	10 min.
Connections and communication
IEC C13 Outlet	8
IEC C19 Outlet	1
Programmable Outlets	Yes
Input	C20
Software	WinPower
USB	Yes
RS-232	Yes
Intelligent Slot	Yes, 1
Dry contact	Yes
EPO	Yes
Environment
Noise Level	< 45dB
Temperature	0°C – 40°C
Humidity	0% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification	VFI-SS-311
Package Content	UPS, Manual, Software CD, USB Cable, Input Power Cable, 2x IEC Cable, RS-232 Cable, Tower holder, Rack Ears, EPO Plug, Dry Contacts Plug
Manual Languages	EN/DE/FR/RU/PL
EAN	4260074974423
Width	438 mm
Height	86.5 mm
Depth	608 mm
Weight	28.6 kg
