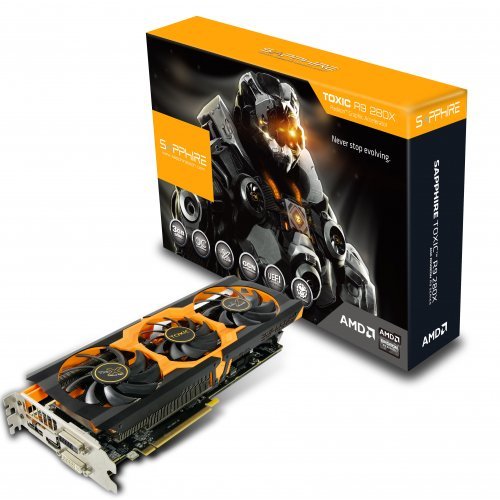

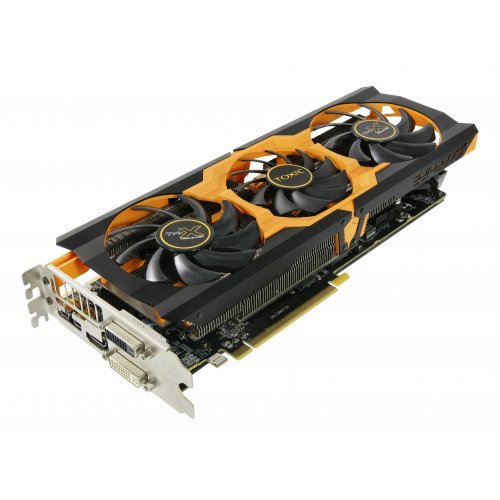

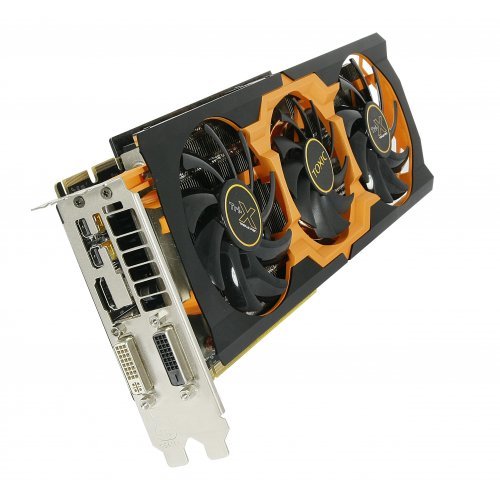

Ati Sapphire Tri-X Toxic R9 280X OC 3G GDDR5, 384 bit, 28nm chip, PCI-E 3.0, Dual-Link DVI-I, Single-Link DVI-D, HDMI, 2x mini DisplayPort mDP DP, Full Retail

Продуктов код: 4359
Видео карти Sapphire
Видео карти > Sapphire 11221-01-40G Видео карти > Sapphire 11221-01-40G Видео карти > Sapphire 11221-01-40G Видео карти > Sapphire 11221-01-40G
Видео карти Sapphire
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Sapphire
Модел:
11221-01-40G
Партиден номер:
-
Интерфейс на шината:
PCI-E 3.0
Вид охлаждане:
активно
Битрейт:
384 bit
VRAM поколение:
GDDR5
RAM - капацитет:
3 GB
Видео изходи:
DisplayPort, DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Sapphire 11221-01-40G

The SAPPHIRE R9 280X TOXIC Edition features the exciting new Tri-X cooler design which uses three sophisticated aerofoil section fans together with industry leading 10mm heatpipes to give unrivalled cooling efficiency. The stylish shroud is designed not only to look cool, but to manage the airflow over the card for maximum cooling effect. This new cooler, together with a high performance 10-phase power management system and high quality components such as the SAPPHIRE exclusive double sided Black Diamond chokes and long-life solid capacitors, has enabled SAPPHIRE to deliver stable higher power levels whilst keeping temperatures low. As a result the TOXIC edition features extreme factory programmed overclocks, delivering the best performance in the industry for this product family. And at the touch of a switch, the user can choose between UEFI and non-UEFI platforms.


  Specification
Display Support 5 x Maximum Display Monitor(s) support
Output 1 x HDMI (with 3D)
2 x Mini-DisplayPort
1 x Single-Link DVI-D
1 x Dual-Link DVI-I
GPU 1100/Boost:1150 MHz Core Clock
28 nm Chip
2048 x Stream Processors
Video Memory 3072 MB Size
384 -bit GDDR5
6400 MHz Effective
Dimension 308(L)X113(W)X41(H) mm Size.
2.2 x slot
Software Driver CD
SAPPHIRE TriXX Utility
Accessory CrossFire™ Bridge Interconnect Cable
Mini-DP to DP Cable
8-PIN to 4 PIN x2 Power Cable
HDMI 1.4a high speed 1.8 meter cable(Full Retail SKU only)

  Overview


HDMI (with 3D)

 Support for Deep Color, 7.1 High Bitrate Audio, and 3D Stereoscopic,  ensuring the highest quality Blu-ray and video experience possible from your PC.




Mini-DisplayPort

Enjoy the benefits of the latest generation display interface, DisplayPort. With the ultra high HD resolution,  the graphics card ensures that you are able to support the latest generation of LCD monitors.




Single-Link DVI-D

Supports Digital monitors up to 1920x1200 resolution.




Dual-Link DVI-I

Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz.




Advanced GDDR5 Memory Technology

GDDR5 memory provides twice the bandwidth per pin of GDDR3 memory, delivering more speed and higher bandwidth.




AMD Stream Technology

Accelerate the most demanding applications with AMD Stream technology and do more with your PC. AMD Stream Technology allows you to use the teraflops of compute power locked up in your graphics processer on tasks other than traditional graphics such as video encoding, at which the graphics processor is many, many times faster than using the CPU alone.




AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback)

Watch the hottest Blu-ray movies or other HD content at full 1080p display resolution and beyond and enjoy a more feature rich experience with enhanced Unified Video Decoder(UVD)




AMD CrossFireX™ Multi-GPU Technology



Triple or Quadruple gaming power with AMD CrossFireX™ Multi-GPU Technology.AMD CrossFireX technology supports up to four graphics cards to be used in a single system.






Black Diamond Choke & Full Solid Cap Design



Choke is an important component of the graphics card. By working with the component engineer, Sapphire’s patent pending choke is 10% cooler and offers 25% more power efficiency than a normal choke. The graphics card will be more reliable and save energy.

Improved reliability and better overclocking are possible by using only high-polymer, aluminum capacitors which posses far superior characteristics than regular aluminum capacitor for a longer product life. When operational temperatures drop by 20°C, the product life span is extended by a factor of ten, when the operational temperature increases by 20°C, the product life span only decreases by 10%.






AMD HD3D Technology

Enjoy the most immersive experience possible with full support for High Definition Stereoscopic 3D, a technique that presents 2D images (movies, games, photos) in a format that creates the illusion of three-dimensional depth when using compatible 3D displays / glasses / software.




28 nm GCN (Graphic Core Next) Architecture

The new 28nm GCN Architecture’s more efficient process technology puts more transistors in less space, enabling a dramatic increase in processing power




PCI Express 3.0

PCI-Express 3.0 delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU (GPU communication-up to 16GB/sec in each direction), maximizing the performance from your GPU when paired with the latest platforms.




AMD Eyefinity 2.0

The next generation of AMD Eyefinity technology is here, featuring all-new support for stereo 3D, universal bezel compensation and brand new display configurations. Face it: the best just got better: The enhancements for AMD Radeon HD7000 series include: Stereo 3D-multi-display stereoscopic 3D support via DisplayPort 16K X 16K maximum display group resolution-output up to 268 megapixels per GPU.


*To support 3 displays, one of the monitors has to support DisplayPort
*With Sapphire Flex Technology, this requirement will be no necessory


* *When running Microsoft Windows XP, Eyefinity technlogy supports a maximum of 2 displays.






PCB Temperature LED



Built in onboard LED for users to monitor the PCB temperature.






SAPPHIRE Tri-X Cooling Technology


Sapphire exclusive Triple fan design pushes out the heat more efficiently than standard dual fan.




DirectX® 11.2

The tessellation performance on AMD Radeon R7/ R9 series is up to 2X faster than the previous generation, and DirectCompute performance is also faster to accelerate advanced post-processing, filtering, and anti-aliasing techniques. Direct X11 games has never looked this good.




OpenGL 4.3

OpenGL 4.3 improves the GPU efficiency by improving the shader process operation and capturing GPU tessellated geometry. The process of modifying an arbitrary subset of compress texture is also simplified. The memory management in handling shaders is more efficient as well.




Mantle


Properly enabled games will reach new heights of performance by speaking the language of Graphics Core Next architecture.




AMD Catalyst Control Center™

The AMD Catalyst Control Center™ software application gives you complete control over the performance and visual quality of your SAPPHIRE AMD Radeon™ based graphics card allowing for the best experience on your PC.




Dolby® TrueHD and DTSHD Master Audio™ Support

Support for copy protected, high bandwidth, 7.1 channel surround sound over HDMI. Get a fully immersive, high definition audio experience with the latest Blu-ray movies. (Requires a DVI to HDMI dongle on some models, an HD capable monitor and a Blu-ray drive)




Anti-aliasing features

Supports advanced AA (Anti-aliasing) features to maximise your enjoyment of high definition gaming.

  • Multi-sample anti-aliasing (2, 4 or 8 samples per pixel)
  • Up to 24x Custom Filter Anti-Aliasing (CFAA) for superior quality
  • Adaptive super-sampling and multi-sampling
  • Gamma correct
  • Super AA (AMD CrossFireX™configurations only)
  • All anti-aliasing features compatible with HDR rendering






AMD PowerTune™ Technology

AMD PowerTune is a breakthrough technology that sets an entirely new direction for maximum performance at TDP. It allows the GPU to be designed with higher engine clock speeds which can be applied on the broad set of applications that have thermal headroom.




TriXX Utility

TriXX helps users to get the optimum performance from compatible SAPPHIRE graphics cards in any application by allowing them to monitor, tune and save different settings of key parameters for the card.




Enhanced Unified Video Decoder 3 (UVD 3)

Watch the hottest Blu-ray movies or other HD content at full 1080p (and beyond !) display resolution. Enjoy a feature rich video experience with enhanced Unified Video Decoder 3 (UVD 3), offloading the bulk of the video decoding tasks from the CPU to the GPU allowing for a cooler, quieter and more balanced system.






Microsoft Office 2010

Take advantage of improved picture and media editing capabilities in Office 2010 as well as edit and share your content in real time.

See more, and get more done. Enhanced productivity with accelerated GPU processing for Office applications.






AMD App Acceleration

AMD App Acceleration is a set of technologies designed to improve video quality and enhance application performance. Full enablement of some features requires support for OpenCL, DirectCompute or DirectX Video Acceleration (DXVA).




AMD PowerPlay with ZeroCore Power Technology



AMD PowerPlay is a power management technology in response to the GPU loading, AMD PowerPlay automatically manages the power consumption.
AMD ZeroCore Power technology allows your AMD Radeon™ GPU to consume virtually no power when in idle state5. When used with AMD CrossFire™ technology, it shuts down additional GPUs when they’re not in use.






AMD HD Media Accelerator

AMD HD Media Accelerator has been designed to help optimize and dramatically improve video playback on your computer by taking advantage of hardware video acceleration from your AMD Radeon GPU. With full 3D stereoscopic decode you can enjoy it all in 3D. AMD HD Media Accelerator speeds up the decode of one 1080p and one 1080i HD video streams simultaneously by hardware, and the new hardware encodes/transcoder processes your media content faster than ever!




Cutting-edge Quad HD display support (4K Support)

The display resolution on AMD Radeon HD7000 series is quadrupled to the resolution of 4KX2K( 4096X2160 ) from the outputs of DisplayPort 1.2 and HDMI.




Windows® 8/8.1 support

WHQL (Windows Hardware Quality Labs) Certified drivers and logos are available for SAPPHIRE  cards ensuring compatibility and reliability with Microsoft Windows 8/8.1.




Dual BIOS ( Legacy and UEFI ) Support

This product supports both Legacy and UEFI BIOS. By factory default, the card itself is under Legacy mode.
By pressing the button with SAPPHIRE logo, UEFI mode will be easily enabled.

Pros to enable UEFI mode:



System Requirements
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
4096MBMinimum of system memory.
Installation software requires CD-ROM drive.
DVD playback requires DVD drive.
Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive.
750 Watt Power Supply is required.
1000WattPower Supply is recommended for CrossFireX™ System.
2X150 Watt 8-pin PCI Express power connector is required.
4X150 Watt 8-pin PCI Express power connector is required for CrossFireX™ system.
